EU3000i AN8 (EAVJ) - Honda Generator, Made in Japan (SN: EAVJ-1000001 - EAVJ-9999999) UNDER COVER Parts Diagram

Generator, Made in Japan

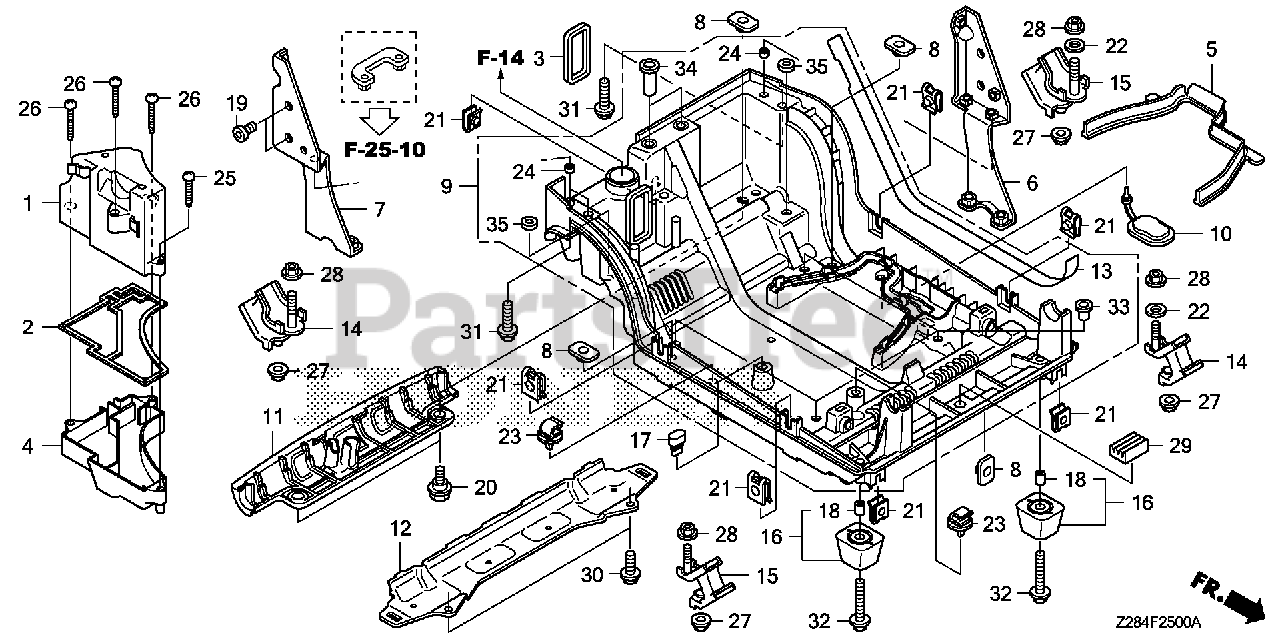

UNDER COVER Parts Diagram

  • Title

1

Honda 17232-Z28-000

COVER, RESONATOR

$27.99

$

Usually ships in 3-6 days

0

2

Honda 17236-Z28-000

SEAL A, RESONATOR

$6.99

$

Usually ships in 3-6 days

0

3

Honda 17237-Z28-000

SEAL B, RESONATOR

$1.99

$

Usually ships in 3-6 days

0

4

Honda 17238-Z28-000

CASE, RESONATOR

$18.99

$

Usually ships in 3-6 days

0

5

Honda 19651-Z28-000

GUIDE, AIR (LOWER)

$27.99

$

Usually ships in 3-6 days

0

6

Honda 53172-Z28-000

PLATE, R. RR. GRIP

$64.99

$

Usually ships in 3-6 days

0

7

Honda 53182-Z28-000

PLATE, L. RR. GRIP

$67.99

$

Usually ships in 3-6 days

0

8

Honda 61304-HB3-003

NUT, SPECIAL (6MM)

$3.49

$

In Stock, Qty 8

0

9

Honda 63709-Z28-000

COVER ASSY. (LOWER)

$266.99

$

Usually ships in 3-6 days

0

10

Honda 63714-Z28-000

PLUG, OIL DRAIN

$5.99

$

Usually ships in 3-6 days

0

11

Honda 63715-Z28-000ZA

GUARD, RR. (LOWER) *NH314* (CONDUCT GRAY)

$21.99

$

Usually ships in 3-6 days

0

12

Honda 63717-Z28-000

GUARD, CENTER (LOWER)

$16.99

$

Usually ships in 3-6 days

0

13

Honda 63719-Z28-000

TAPE, COVER (LOWER)

$32.99

$

Usually ships in 3-6 days

0

14

Honda 68321-Z28-000

RUBBER, R. FR. MOUNT

$22.99

$

Usually ships in 3-6 days

0

15

Honda 68324-Z28-000

RUBBER, L. FR. MOUNT

$22.99

$

Usually ships in 3-6 days

0

16

Honda 68325-Z28-000

RUBBER (LOWER)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 76122-952-000

STOPPER, DISCHARGE GUARD

$4.49

$

In Stock, only 2 left!

0

18

Honda 84705-310-000

COLLAR, RR. FENDER

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90106-Z28-000

SCREW, PAN (6X12)

$2.99

$

In Stock, only 4 left!

0

20

Honda 90122-752-000

BOLT, SPECIAL (6MM)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90320-747-000

NUT, SPRING (6MM)

$2.99

$

In Stock, only 2 left!

0

22

Honda 90410-SD3-660

WASHER, PLAIN (8MM)

$12.99

$

Usually ships in 3-6 days

0

23

Honda 91547-SE0-003

CLIP, HARNESS

$7.49

$

Usually ships in 3-6 days

0

24

Honda 91551-Z28-000

COLLAR A, COVER (LOWER)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93911-25620

SCREW, TAPPING (5X25) (PO)

$0.99

$

Usually ships in 3-6 days

0

26

Honda 93911-25720

SCREW, TAPPING (5X30)

$5.49

$

Usually ships in 3-6 days

0

27

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

28

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

29

Honda 95011-61000

RUBBER A, STAND STOPPER

$1.49

$

Usually ships in 3-6 days

0

30

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

31

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 10

0

32

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$1.99

$

In Stock, only 4 left!

0

33

Honda 90508-Z28-000

COLLAR C, COVER (LOWER)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 91558-Z28-000

COLLAR B, COVER (LOWER)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 91561-Z28-000

COLLAR D, COVER (LOWER)

$2.99

$

Usually ships in 3-6 days

0
