EU3000is A/A (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1080001 - EZGF-1499999) CONTROL PANEL (2) Parts Diagram

Generator, Made in Japan

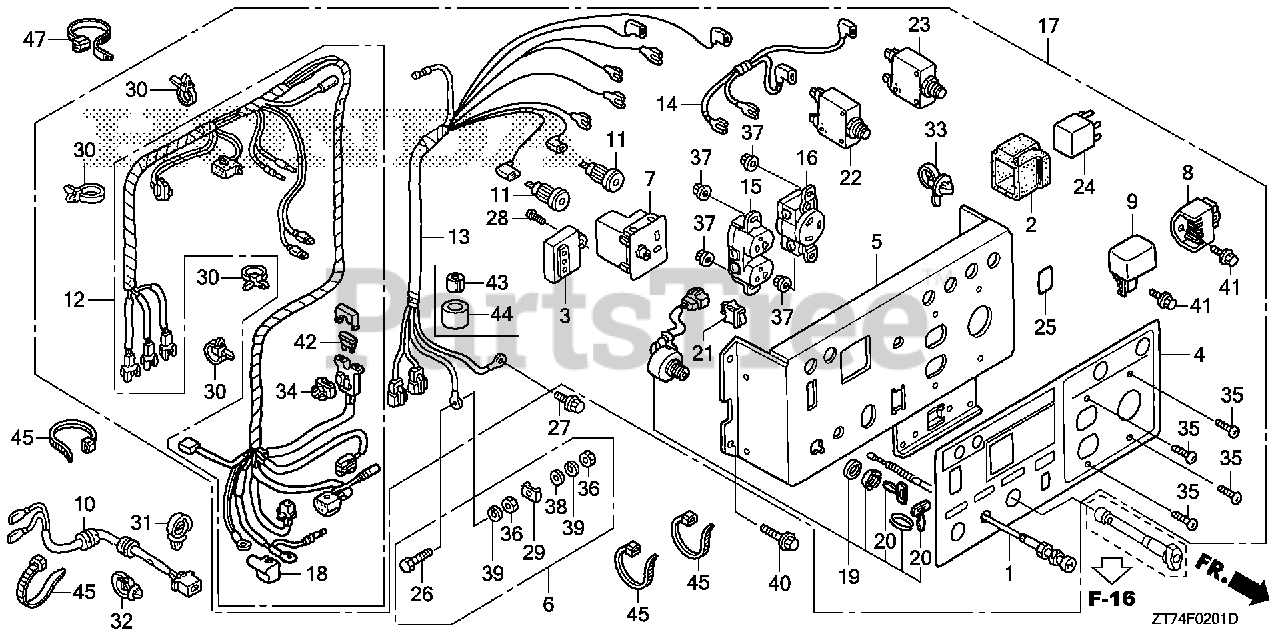

CONTROL PANEL (2) Parts Diagram

  • Title

1

Honda 17950-ZS9-003

CABLE, CHOKE

Note: Use from Frame SN 1034497.

$28.99

$

In Stock, only 1 left!

0

2

Honda 30401-GA7-000

CUSHION, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)

Note: Use from Frame SN 1034497.

$

$

Not available

3

Honda 30585-ZS9-A02

SEE PART DETAILS - PRI; IGNITION UNIT

Note: Use from Frame SN 1034497.

$98.99

$

In Stock, only 1 left!

0

4

Honda 31406-ZS9-T30

MARK, CONTROL PANEL

Note: Use from Frame SN 1034497.

$117.99

$

Usually ships in 3-6 days

0

5

Honda 31420-ZS9-A31

PANEL, CONTROL

Note: Use from Frame SN 1034497.

$111.99

$

Usually ships in 3-6 days

0

6

Honda 31428-899-840

TERMINAL SET, GROUND

Note: Use from Frame SN 1034497.

$21.99

$

Usually ships in 3-6 days

0

7

Honda 31460-ZS9-A01

RECEPTACLE, D.C.

Note: Use from Frame SN 1034497.

$67.99

$

In Stock, only 1 left!

0

8

Honda 31710-ZS9-A02

RECTIFIER ASSY.

Note: Use from Frame SN 1034497.

$22.99

$

Usually ships in 3-6 days

0

9

Honda 31750-ZS9-A02

RECTIFIER, REGULATOR
(Superseded to 31750-ZS9-A03)

Note: Use from Frame SN 1034497.

$49.99

$

Usually ships in 3-6 days

0

10

Honda 32110-ZS9-A00

WIRE HARNESS ASSY., ENGINE

Note: Use from Frame SN 1034497.

$32.99

$

Usually ships in 3-6 days

0

11

Honda 32139-ZS9-A01

SOCKET, COMPOSITE

Note: Use from Frame SN 1034497.

$36.99

$

Usually ships in 3-6 days

0

12

Honda 32150-ZS9-A32

WIRE HARNESS ASSY., CONTROL

Note: Use from Frame SN 1034497.

$177.99

$

Usually ships in 3-6 days

0

13

Honda 32196-ZS9-T31

WIRE HARNESS ASSY., CONTROL (SUB)

Note: Use from Frame SN 1034497.

$134.99

$

Usually ships in 3-6 days

0

14

Honda 32197-ZS9-T31

SUB-WIRE ASSY.

Note: Use from Frame SN 1034497.

$31.99

$

Usually ships in 3-6 days

0

15

Honda 32330-ZA1-631

RECEPTACLE (20A/125V) (MATSUSHITA)
(Superseded to 32330-Z03-C31)

Note: Use from Frame SN 1034497.

$47.99

$

In Stock, only 1 left!

0

16

Honda 32332-880-710

RECEPTACLE (30A/125V)
(Superseded to 32332-ZB4-630)

Note: Use from Frame SN 1034497.

$32.99

$

Usually ships in 3-6 days

0

17

Honda 32340-ZS9-T31

PANEL ASSY., CONTROL

Note: Use from Frame SN 1034497.

$

$

Not available

18

Honda 32412-MJ6-000

COVER, BATTERY TERMINAL (NOT AVAILABLE)

Note: Use from Frame SN 1034497.

$

$

Not available

19

Honda 35100-ZB4-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (HONDALOCK)

Note: Use from Frame SN 1034497.

$131.99

$

In Stock, only 1 left!

0

20

Honda 35111-880-013

KEY (HONDALOCK)

Note: Use from Frame SN 1034497.

$10.99

$

In Stock, Qty 8

0

21

Honda 36214-ZS9-A01

SEE PART DETAILS - PRI; SWITCH, AUTO-THROTTLE

Note: Use from Frame SN 1034497.

$22.99

$

Usually ships in 3-6 days

0

22

Honda 38240-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (20A)
(Superseded to 38240-ZC6-E31)

Note: Use from Frame SN 1034497.

$72.99

$

In Stock, only 1 left!

0

22

Honda 38240-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

Note: Use from Frame SN 1034497.

$72.99

$

In Stock, only 1 left!

0

23

Honda 38241-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (30A)
(Superseded to 38241-ZC6-E31)

Note: Use from Frame SN 1034497.

$72.99

$

Usually ships in 3-6 days

0

23

Honda 38241-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A)

Note: Use from Frame SN 1034497.

$72.99

$

Usually ships in 3-6 days

0

24

Honda 38510-ZS9-A01

RELAY ASSY., POWER (5P)

Note: Use from Frame SN 1034497.

$33.99

$

Usually ships in 3-6 days

0

25

Honda 87117-ZS9-A60

MARK, FUSE

Note: Use from Frame SN 1034497.

$4.99

$

Usually ships in 3-6 days

0

26

Honda 90011-899-840

BOLT, HEX. (6X28)

Note: Use from Frame SN 1034497.

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Frame SN 1034497.

$1.99

$

In Stock, Qty 20+

0

28

Honda 90108-MN0-000

SCREW, PAN (5X13)

Note: Use from Frame SN 1034497.

$2.49

$

Usually ships in 3-6 days

0

29

Honda 90501-ZA7-640

RETAINER (6MM)

Note: Use from Frame SN 1034497.

$3.99

$

Usually ships in 3-6 days

0

30

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

Note: Use from Frame SN 1034497.

$5.49

$

Usually ships in 3-6 days

0

31

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

Note: Use from Frame SN 1034497.

$11.99

$

Usually ships in 3-6 days

0

32

Honda 90691-ZB7-003

CLIP, HARNESS

Note: Use from Frame SN 1034497.

$3.99

$

Usually ships in 3-6 days

0

33

Honda 91550-SE0-003

CLIP, WIRE HARNESS (GRAY)

Note: Use from Frame SN 1034497.

$15.99

$

Usually ships in 3-6 days

0

34

Honda 91565-SH3-003

CLIP, CONNECTOR HOLDER (BROWN)

Note: Use from Frame SN 1034497.

$7.99

$

Usually ships in 3-6 days

0

35

Honda 93500-04010-0H

SCREW, PAN (4X10)

Note: Use from Frame SN 1034497.

$1.49

$

Usually ships in 3-6 days

0

36

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use from Frame SN 1034497.

$1.99

$

Usually ships in 3-6 days

0

37

Honda 94050-04080

NUT, FLANGE (4MM)

Note: Use from Frame SN 1034497.

$1.99

$

In Stock, Qty 10

0

38

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: Use from Frame SN 1034497.

$0.99

$

In Stock, Qty 20+

0

39

Honda 94111-06800

WASHER, SPRING (6MM)

Note: Use from Frame SN 1034497.

$1.49

$

Usually ships in 3-6 days

0

40

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use from Frame SN 1034497.

$1.49

$

In Stock, Qty 20+

0

41

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: Use from Frame SN 1034497.

$1.99

$

In Stock, Qty 20+

0

42

Honda 98200-30500

FUSE, BLADE (5A)

Note: Use from Frame SN 1034497.

$1.99

$

In Stock, Qty 5

0
