EU6500is 1 AT (EASJ) - Honda Generator, Made in Japan (SN: EASJ-1200001 - EASJ-9999999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

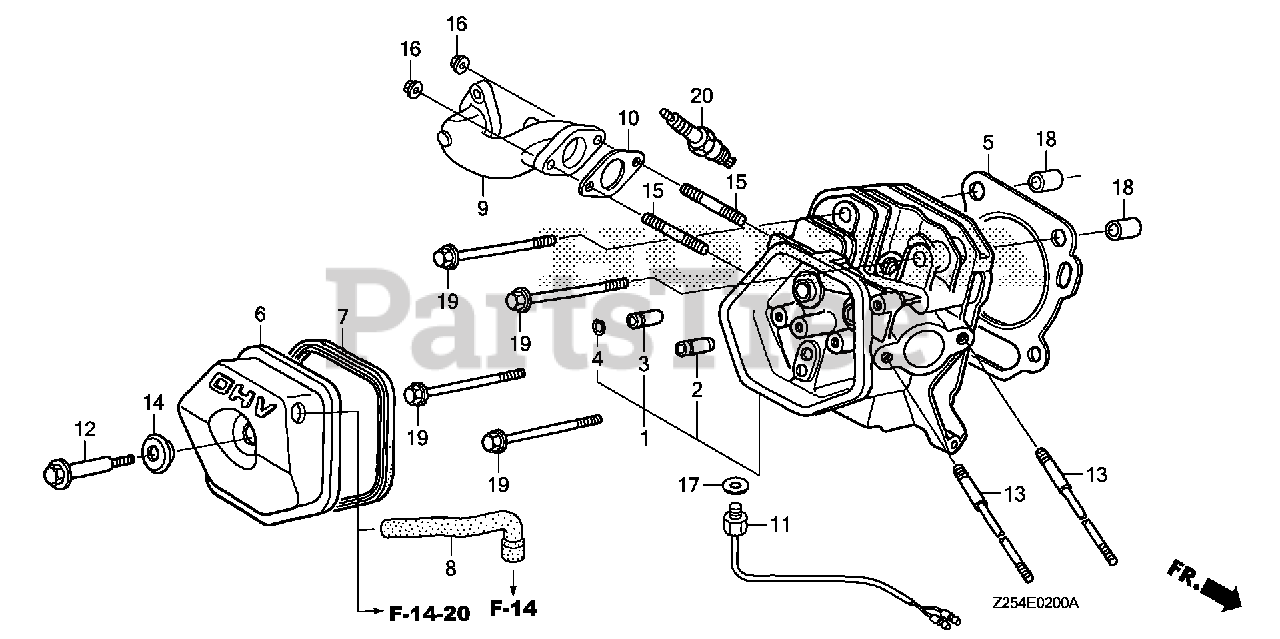

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12210-Z5T-416

SEE PART DETAILS - PRI; CYLINDER HEAD

$67.99

$

In Stock, only 2 left!

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$14.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-Z5T-003

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

$3.49

$

In Stock, Qty 20+

0

6

Honda 12310-ZE2-020

COVER, HEAD

$42.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$10.99

$

In Stock, Qty 20+

0

8

Honda 15721-ZK6-E40

TUBE, BREATHER

$10.99

$

Usually ships in 3-6 days

0

9

Honda 18331-ZK6-E40

PIPE, EX.

$55.99

$

Usually ships in 3-6 days

0

10

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

$2.99

$

In Stock, only 3 left!

0

10

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$2.99

$

In Stock, only 3 left!

0

11

Honda 35673-ZF6-F42

SENSOR ASSY., TEMPERATURE

$50.99

$

Usually ships in 3-6 days

0

12

Honda 90014-Z5T-000

BOLT, HEAD COVER

$1.49

$

In Stock, only 3 left!

0

13

Honda 90042-ZK6-E40

BOLT, STUD (8X126.5)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER

$5.99

$

In Stock, Qty 6

0

15

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT, STUD (8X32)

$2.99

$

In Stock, Qty 7

0

16

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

17

Honda 94102-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

18

Honda 94301-12200

PIN, DOWEL (12X20)

$2.99

$

In Stock, only 3 left!

0

19

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$3.99

$

In Stock, Qty 5

0

20

Honda 98079-56846

SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

20

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, only 1 left!

0
