EU7000is N AN (EEJD) - Honda Generator, Made in India (SN: EEJD-1300001 - EEJD-9999999) CONTROL PANEL (3) Parts Diagram

Generator, Made in India

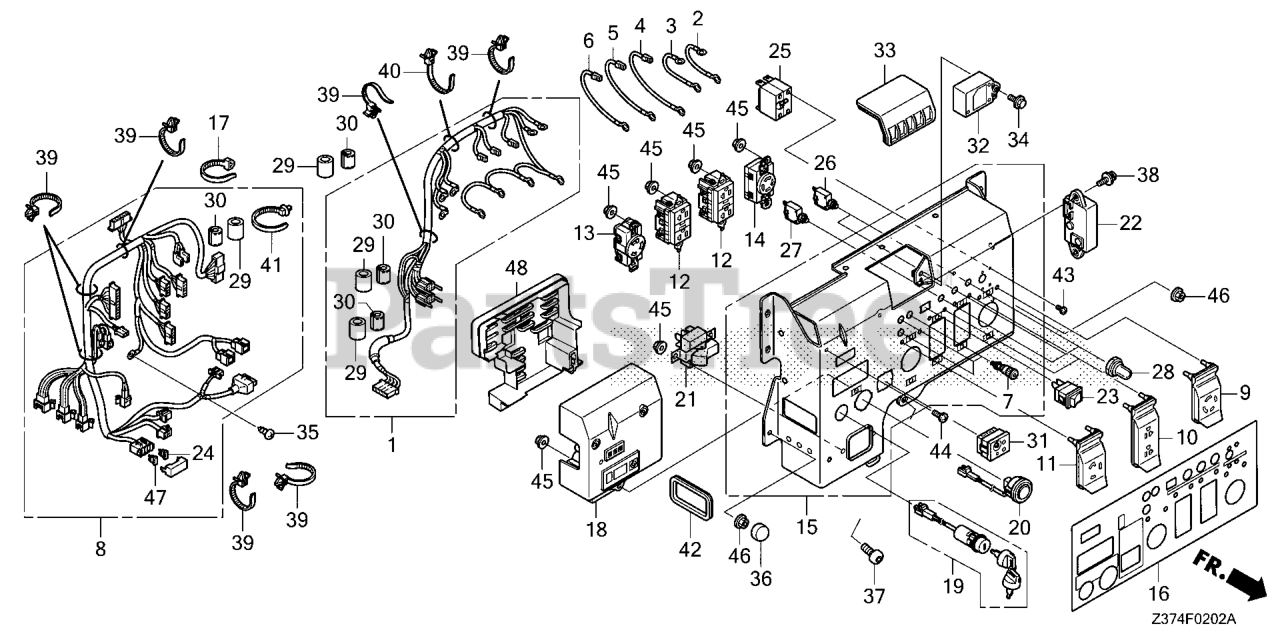

CONTROL PANEL (3) Parts Diagram

  • Title

1

Honda 32100-Z37-R50

WIRE HARNESS ASSY., MAIN

$309.99

$

Usually ships in 3-6 days

0

2

Honda 32101-Z37-A30

SUB-WIRE ASSY. (A)

$5.49

$

Usually ships in 3-6 days

0

3

Honda 32102-Z37-A30

SUB-WIRE ASSY. (B)

$5.99

$

Usually ships in 3-6 days

0

4

Honda 32106-Z37-A30

SUB-WIRE ASSY. (D)

$4.99

$

Usually ships in 3-6 days

0

5

Honda 32107-Z37-C30

SUB-WIRE ASSY. (E)

$4.49

$

Usually ships in 3-6 days

0

6

Honda 32108-Z37-C30

SUB-WIRE ASSY. (F)

$4.99

$

Usually ships in 3-6 days

0

7

Honda 32139-Z37-A30

SOCKET, COMPOSITE

$92.99

$

Usually ships in 3-6 days

0

8

Honda 32150-Z37-R50

WIRE HARNESS ASSY., CONTROL

Note: Use up to Frame SN 1387415.

$127.99

$

Usually ships in 3-6 days

0

8

Honda 32150-Z37-R51

WIRE HARNESS ASSY., CONTROL

Note: Use from Frame SN 1387416.

$111.99

$

Usually ships in 3-6 days

0

9

Honda 32320-Z37-R50

COVER, RECEPTACLE (30A-125/250V)

$22.99

$

Usually ships in 3-6 days

0

10

Honda 32320-ZS9-W30

COVER, RECEPTACLE (20A-125V)

$22.99

$

Usually ships in 3-6 days

0

11

Honda 32321-ZS9-W30

COVER, RECEPTACLE (30A-125V)

$22.99

$

Usually ships in 3-6 days

0

12

Honda 32330-Z44-J31

RECEPTACLE (20A-125V) (GFCI)
(Superseded to 32330-Z44-J32)

Note: Use up to Frame SN 1341797.

$139.99

$

Usually ships in 3-6 days

0

12

Honda 32330-Z44-J32

RECEPTACLE (20A-125V) (GFCI)

$139.99

$

Usually ships in 3-6 days

0

13

Honda 32332-ZB4-630

SEE PART DETAILS - SUP; RECEPTACLE (30A/125V)

$53.99

$

In Stock, only 1 left!

0

13

Honda 32332-Z22-E31

RECEPTACLE (30A-125V)

$103.99

$

In Stock, only 1 left!

0

14

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$

$

Not available

14

Honda 32334-Z22-A31

RECEPTACLE (30A-125/250V)

$123.99

$

Usually ships in 3-6 days

0

15

Honda 32345-Z37-R50

PANEL, CONTROL

$336.99

$

Usually ships in 3-6 days

0

16

Honda 32366-Z37-R50

MARK, PANEL

$20.99

$

Usually ships in 3-6 days

0

17

Honda 32727-PE1-660

BAND, TUBE (NOT AVAILABLE)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 34110-Z37-R51

CONTROL UNIT, GENERATOR

Note: Use up to Frame SN 1387415.

$837.99

$

Usually ships in 3-6 days

0

18

Honda 34110-Z37-R52

CONTROL UNIT, GENERATOR

Note: Use from Frame SN 1387416.

$674.99

$

Usually ships in 3-6 days

0

19

Honda 35100-Z37-R51

SWITCH ASSY., COMBINATION

$21.99

$

Usually ships in 3-6 days

0

20

Honda 35150-Z37-A32

SWITCH ASSY., START

$28.99

$

In Stock, only 1 left!

0

21

Honda 35320-Z11-A41

SWITCH ASSY., VOLT CHANGE

$149.99

$

Usually ships in 3-6 days

0

22

Honda 35610-Z37-PA0

SENSING UNIT (CO)

$

$

Not available

23

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

$28.99

$

In Stock, only 2 left!

0

24

Honda 38206-797-A01

FUSE, BLADE (3A)

$3.49

$

In Stock, only 3 left!

0

25

Honda 38220-Z37-A31

PROTECTOR, CIRCUIT (30A)

$89.99

$

Usually ships in 3-6 days

0

26

Honda 38240-Z11-A32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A) (WHITE)(TYCO)

$44.99

$

In Stock, only 4 left!

0

26

Honda 38240-Z25-A30

PROTECTOR, CIRCUIT (20A) (BLACK)(JOEMEX)

$127.99

$

Usually ships in 3-6 days

0

27

Honda 38241-Z11-A32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A) (WHITE)

$45.99

$

Usually ships in 3-6 days

0

27

Honda 38241-Z25-A30

PROTECTOR, CIRCUIT (30A) (BLACK)

$127.99

$

Usually ships in 3-6 days

0

28

Honda 38242-Z25-A62

COVER, CIRCUIT PROTECTOR

$20.99

$

Usually ships in 3-6 days

0

29

Honda 38398-Z07-C60

SUPPORTER, FILTER

$5.49

$

Usually ships in 3-6 days

0

30

Honda 38398-Z37-000

FILTER, SUB NOISE (AC)

$17.99

$

Usually ships in 3-6 days

0

31

Honda 38530-ZS9-W32

LED ASSY., INDICATER

$39.99

$

In Stock, only 2 left!

0

32

Honda 06391-Z22-C31

UNIT KIT, BLUETOOTH (ISOLATE)

$213.99

$

Usually ships in 3-6 days

0

33

Honda 39161-Z37-R50

COVER, BLUETOOTH UNIT

$18.99

$

Usually ships in 3-6 days

0

34

Honda 90003-MEL-000

BOLT, FLANGE (5X14)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 90031-875-000

SCREW, TAPPING (5X12)

$4.49

$

Usually ships in 3-6 days

0

36

Honda 90083-ZY3-A01

CAP, BOLT (6MM)

$6.49

$

Usually ships in 3-6 days

0

37

Honda 90106-ZS9-W30

BOLT, FLANGE TORX (6X10)

$4.49

$

Usually ships in 3-6 days

0

38

Honda 90107-ZS9-W30

BOLT-WASHER (5X15) (TORX)

$4.99

$

Usually ships in 3-6 days

0

39

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$8.49

$

Usually ships in 3-6 days

0

40

Honda 90676-Z26-003

BAND, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

41

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.99

$

Usually ships in 3-6 days

0

42

Honda 91654-Z11-000

GROMMET, CONTROL HARNESS

$6.49

$

Usually ships in 3-6 days

0

43

Honda 93500-03005-0G

SCREW, PAN (3X5) (NOT AVAILABLE)

$

$

Currently unavailable

44

Honda 93500-05012-0G

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

45

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 2 left!

0

46

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, Qty 9

0

47

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0

48

Honda 34115-Z37-000

COVER, GENERATOR CONTROL UNIT

Note: Use from Frame SN 1367430.

$9.99

$

Usually ships in 3-6 days

0
