EU7000is N AT1/A (EEJD) - Honda Generator, Made in India (SN: EEJD-1200001 - EEJD-1299999) CYLINDER Parts Diagram

Generator, Made in India

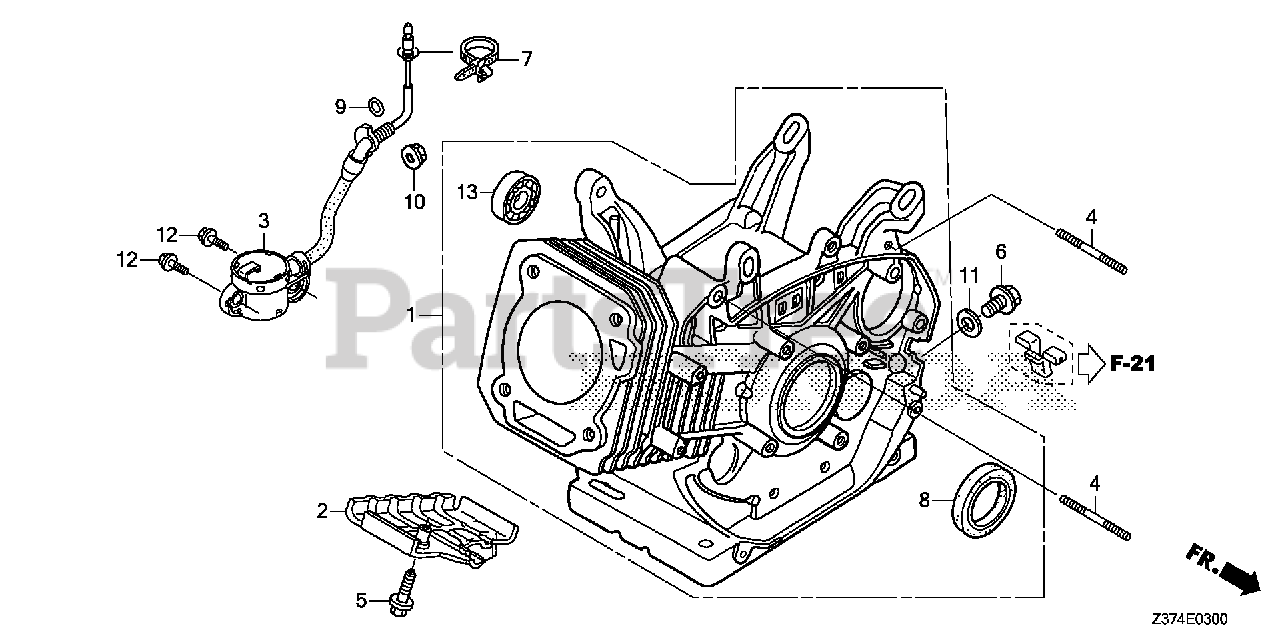

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZF6-Q20

CYLINDER ASSY.
(Superseded to 12000-ZF6-Q21)

Note: Use up to Engine SN 1263009.

$153.99

$

Usually ships in 3-6 days

0

1

Honda 12000-ZF6-Q21

CYLINDER ASSY.

Note: Use from Engine SN 1263010.

$153.99

$

Usually ships in 3-6 days

0

2

Honda 19645-Z11-000

SHROUD, ENGINE

$12.99

$

Usually ships in 3-6 days

0

3

Honda 35480-ZF6-003

SWITCH ASSY., OIL LEVEL

$63.99

$

In Stock, only 1 left!

0

4

Honda 90045-ZG1-750

BOLT, STUD (6X30)

$3.49

$

Usually ships in 3-6 days

0

5

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 17

0

6

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 9

0

7

Honda 90674-ZV1-003

BAND, CABLE

$3.99

$

Usually ships in 3-6 days

0

8

Honda 91201-Z1C-003

OIL SEAL (35X52X8) (NOK)

$7.49

$

In Stock, only 1 left!

0

9

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.49

$

In Stock, Qty 14

0

10

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

$3.99

$

Usually ships in 3-6 days

0

11

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

12

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

Usually ships in 3-6 days

0

13

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$11.99

$

In Stock, only 1 left!

0
