EU7000is N AT1 (EEJD) - Honda Generator, Made in India (SN: EEJD-1000001 - EEJD-1199999) MUFFLER Parts Diagram

Generator, Made in India

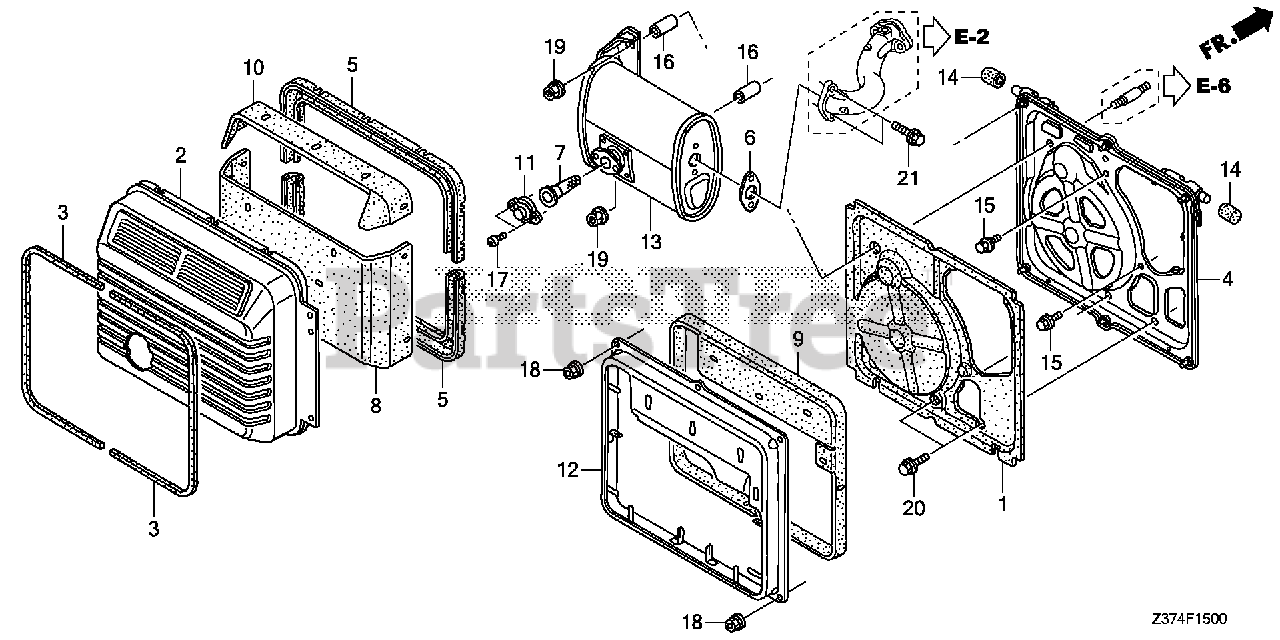

MUFFLER Parts Diagram

  • Title

1

Honda 18318-Z37-A30

SEPARATOR, MUFFLER (INNER)

$40.99

$

Usually ships in 3-6 days

0

2

Honda 18320-Z25-000ZA

PROTECTOR, MUFFLER (OUTER) *NH105* (MAT BLACK)

$142.99

$

Usually ships in 3-6 days

0

3

Honda 18322-Z25-000

SEAL (10X5X785)

$23.99

$

Usually ships in 3-6 days

0

4

Honda 18325-Z11-R30

PROTECTOR, MUFFLER (INNER)

$133.99

$

Usually ships in 3-6 days

0

5

Honda 18329-Z25-000

SEAL, MUFFLER PROTECTOR

$33.99

$

Usually ships in 3-6 days

0

6

Honda 18333-ZB7-800

GASKET, EX. PIPE

$9.49

$

Usually ships in 3-6 days

0

7

Honda 18355-Z11-A30

ARRESTER, SPARK

$31.99

$

In Stock, only 2 left!

0

8

Honda 18376-Z11-A60

INSULATOR, MUFFLER PROTECTOR (A)

$42.99

$

Usually ships in 3-6 days

0

9

Honda 18377-Z25-000

INSULATOR, MUFFLER PROTECTOR (B)

$36.99

$

Usually ships in 3-6 days

0

10

Honda 18378-Z25-000

INSULATOR, MUFFLER PROTECTOR (C)

$13.99

$

Usually ships in 3-6 days

0

11

Honda 18390-Z25-000

PIPE, EX. TAIL

$45.99

$

In Stock, only 1 left!

0

12

Honda 18510-Z25-000

GUIDE, EX. AIR

$140.99

$

Usually ships in 3-6 days

0

13

Honda 18710-Z37-000

MUFFLER
(Superseded to 18710-Z37-010)

$475.99

$

Usually ships in 3-6 days

0

14

Honda 50388-Z11-000

RUBBER, STOPPER

$0.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

16

Honda 91554-Z25-000

COLLAR, MUFFLER

$4.49

$

Usually ships in 3-6 days

0

17

Honda 93500-05016-4J

SCREW, PAN (5X16)

$1.99

$

In Stock, only 2 left!

0

18

Honda 94050-06070

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$2.49

$

In Stock, only 1 left!

0

19

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0

20

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.99

$

In Stock, only 2 left!

0

21

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

$3.49

$

In Stock, only 2 left!

0
