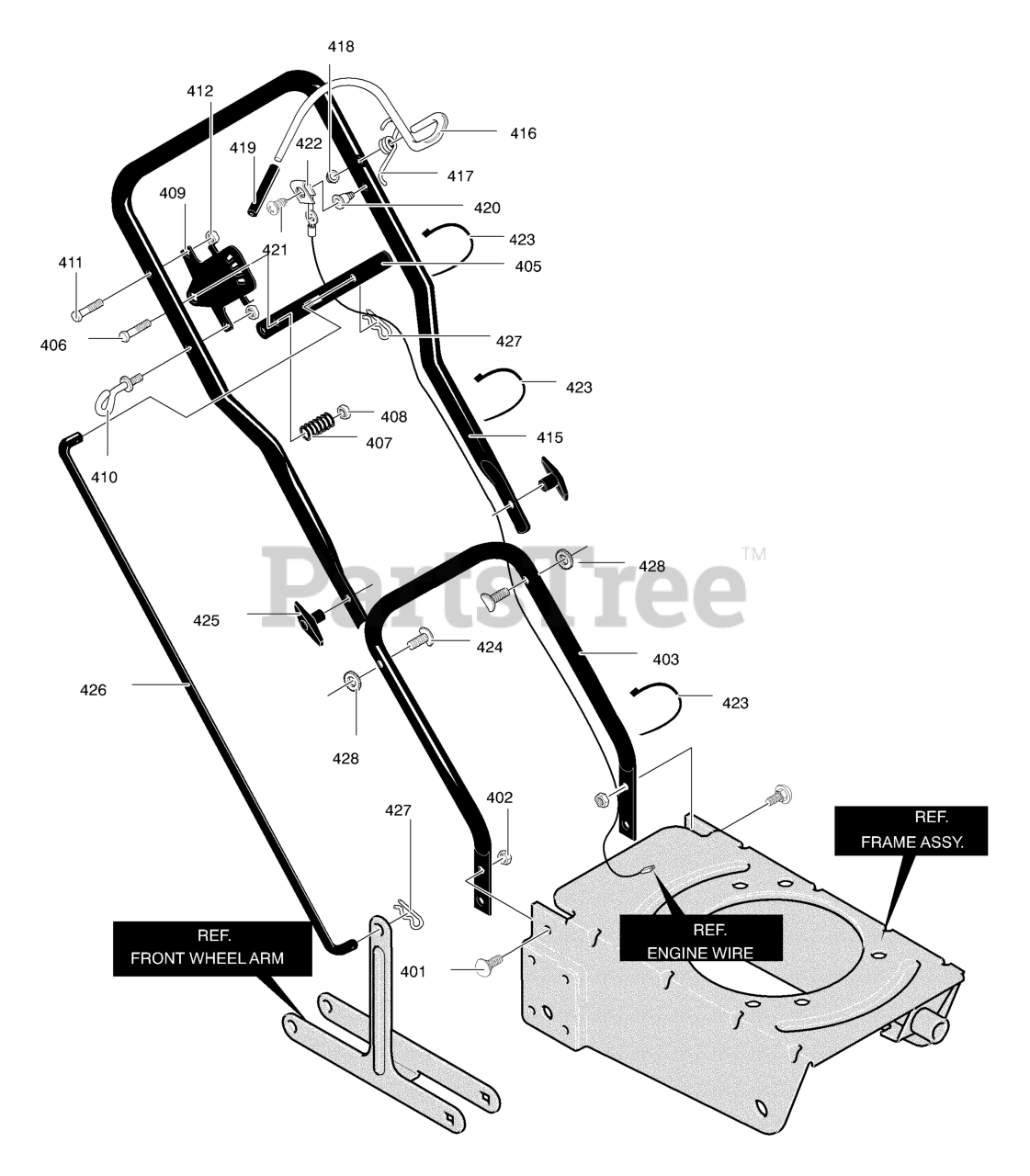

EV3550x92A - Murray Wheeled Edger (2003) Handle Assembly Parts Diagram

Wheeled Edger

Handle Assembly Parts Diagram

  • Title

401

Murray 711558

Bolt, 5/16-18x.75

$

$

Not available

402

Murray 015X79MA

Nut, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

403

Murray 740128E701MA

Lower Handle

$45.99

$

Usually ships in 2-12 days

0

405

Murray 740130E701MA

Handle, Depth

$29.99

$

Usually ships in 2-12 days

0

406

Murray 180081MA

Screw

$3.49

$

Usually ships in 2-12 days

0

407

Murray 25644MA

Spring, Compression

$4.49

$

Usually ships in 2-12 days

0

408

Murray 015X43MA

Nut, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 12

0

409

Murray 740143E701

Brkt, Adj. Quadrant

$19.99

$

Usually ships in 2-12 days

0

410

Murray 672510MA

Rope Guide

$5.99

$

Usually ships in 2-12 days

0

411

Murray 180024MA

Screw, 1/4-20x1.25
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

412

Murray 782585

Nut, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

415

Murray 740142E701

Upper Handle

$100.99

$

Usually ships in 2-12 days

0

416

Murray 337744

Bail, Operator Control

$28.99

$

Usually ships in 2-12 days

0

417

Murray 337775

Torsion Spring

$3.99

$

Usually ships in 2-12 days

0

418

Murray 314276MA

Nut, Push On

$3.99

$

Usually ships in 2-12 days

0

419

Murray 339489

Cap, Operator Control

$4.49

$

Usually ships in 2-12 days

0

420

Murray 339229

Insulator, Oper Control

$3.99

$

Usually ships in 2-12 days

0

421

Murray 57796

Screw, #6x.50

$

$

Not available

422

Murray 340162MA

Clip, Grounding

$3.99

$

Usually ships in 2-12 days

0

423

Murray 071372MA

Cable Tie

$4.49

$

In Stock, only 1 left!

0

424

Murray 315288MA

Bolt, 5/16-18x.75

$3.99

$

In Stock, only 2 left!

0

425

Murray 071495MA

Wing Knob 5/16-18

$4.99

$

In Stock, only 3 left!

0

426

Murray 740144E701MA

Rod, Control

$47.99

$

Usually ships in 2-12 days

0

427

Murray 36368MA

Hair Pin

$3.99

$

Usually ships in 2-12 days

0

428

Murray 138485MA

Washer

$4.99

$

Usually ships in 2-12 days

0
