EV4000 A (EV4000) - Honda Generator, Made in Japan (SN: EV4000-1000001 - EV4000-9999999) CONTROL BOX PANEL + ENGINE SWITCH Parts Diagram

Generator, Made in Japan

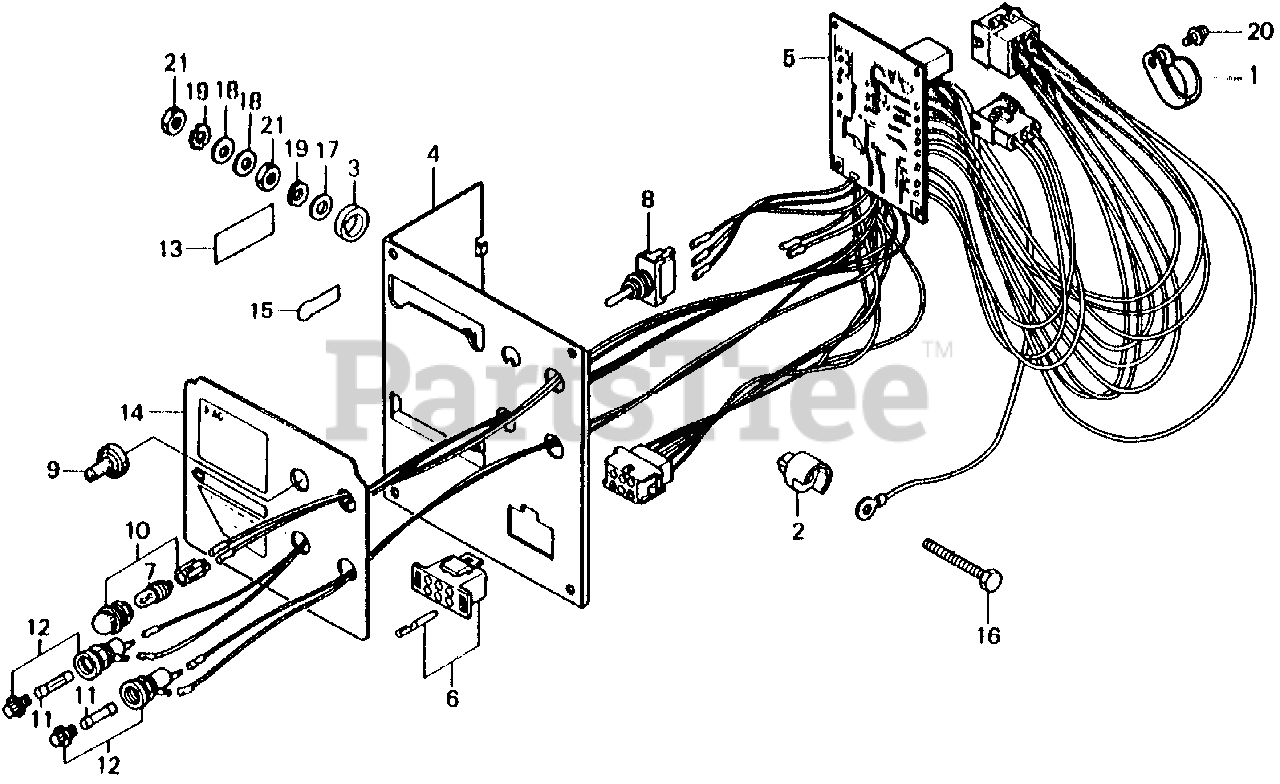

CONTROL BOX PANEL + ENGINE SWITCH Parts Diagram

  • Title

1

Honda 30566-895-000

CLAMP C, CABLE

$5.49

$

Usually ships in 3-6 days

0

2

Honda 31211-895-300

COLLAR A, D.C. TERMINAL

$17.99

$

Usually ships in 3-6 days

0

3

Honda 31213-895-300

COLLAR B, D.C. TERMINAL

$7.49

$

Usually ships in 3-6 days

0

4

Honda 31402-895-010ZA

PANEL, CONTROL BOX *NH116M* (URBAN SILVER METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 31451-895-003

CIRCUIT ASSY., PRINT (NOT AVAILABLE)

$

$

Not available

6

Honda 06560-ZB5-000AH

SEE PART DETAILS - SUP; CONNECTOR ASSY., PLUG
(Superseded to 06560-ZB5-100AH)

$12.99

$

Usually ships in 3-6 days

0

6

Honda 06560-ZB5-100AH

SEE PART DETAILS - PRI; CONNECTOR ASSY., PLUG

$12.99

$

Usually ships in 3-6 days

0

7

Honda 34909-895-003

BULB (12V2W)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 36120-895-004

SWITCH ASSY., ENGINE (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 36121-895-004

CAP, SWITCH

$

$

Not available

10

Honda 37561-880-300

HOLDER, LAMP

$

$

Not available

11

Honda 38201-895-003

FUSE

$

$

Not available

12

Honda 38211-ZB5-831

SEE PART DETAILS - PRI; HOLDER, FUSE

$34.99

$

Usually ships in 3-6 days

0

13

Honda 87512-895-000

MARK, WIRE CAUTION

$

$

Not available

14

Honda 87552-895-010

PLATE, CONTROL PANEL (LOWER)

$

$

Not available

15

Honda 87553-895-000

MARK, BATTERY

$

$

Not available

16

Honda 90102-895-000

BOLT, B.C. TERMINAL

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90405-671-000

WASHER, EQUALIZER (8MM) (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 90501-895-300

WASHER, D.C. TERMINAL

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90502-895-003

WASHER, STAR

$2.99

$

Usually ships in 3-6 days

0

20

Honda 93891-04010-08

SCREW-WASHER (4X10)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94002-08300-0S

NUT, HEX. (8MM)

$2.49

$

Usually ships in 3-6 days

0
