EV4000 A (EV4000) - Honda Generator, Made in Japan (SN: EV4000-1000001 - EV4000-9999999) CONTROL BOX + WIRE HARNESS Parts Diagram

Generator, Made in Japan

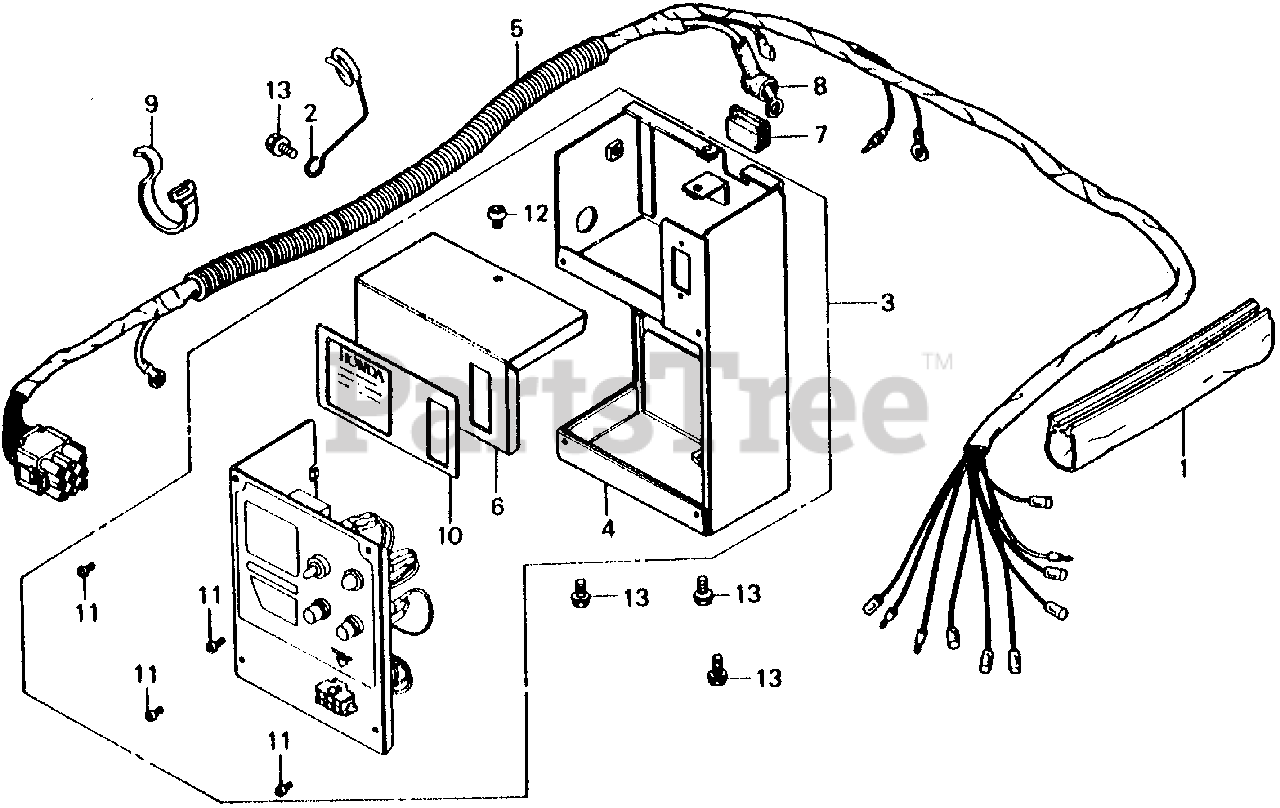

CONTROL BOX + WIRE HARNESS Parts Diagram

  • Title

1

Honda 30587-895-003

TUBE, FASTENER

$

$

Not available

2

Honda 30589-895-000

CLAMP, STARTER CABLE

$

$

Currently unavailable

3

Honda 31400-895-013ZA

BOX ASSY., CONTROL *NH116M* (URBAN SILVER METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31403-895-680ZA

COVER, CONTROL BOX *NH116M* (URBAN SILVER METALLIC)

$

$

Not available

5

Honda 31404-895-010

SEE PART DETAILS - PRI; WIRE HARNESS

Note: Use up to Frame SN 1001933.

$

$

Not available

5

Honda 31404-895-020

WIRE HARNESS

Note: Use from Frame SN 1001934.

$

$

Not available

6

Honda 31455-895-000ZA

COVER, BOX (UPPER) *NH116M* (URBAN SILVER METALLIC)

$

$

Currently unavailable

7

Honda 31481-895-000

GROMMET

$

$

Not available

8

Honda 32136-659-000

COVER, TERMINAL

$6.99

$

Usually ships in 3-6 days

0

9

Honda 32161-367-690

BAND, WIRE

$3.99

$

Usually ships in 3-6 days

0

10

Honda 87551-895-000

PLATE, CONTROL PANEL (UPPER)

$

$

Currently unavailable

11

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 10

0

12

Honda 93500-06006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

13

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0
