EV4000 A (EV4000) - Honda Generator, Made in Japan (SN: EV4000-1000001 - EV4000-9999999) MUFFLER + BUMPER STOPPER Parts Diagram

Generator, Made in Japan

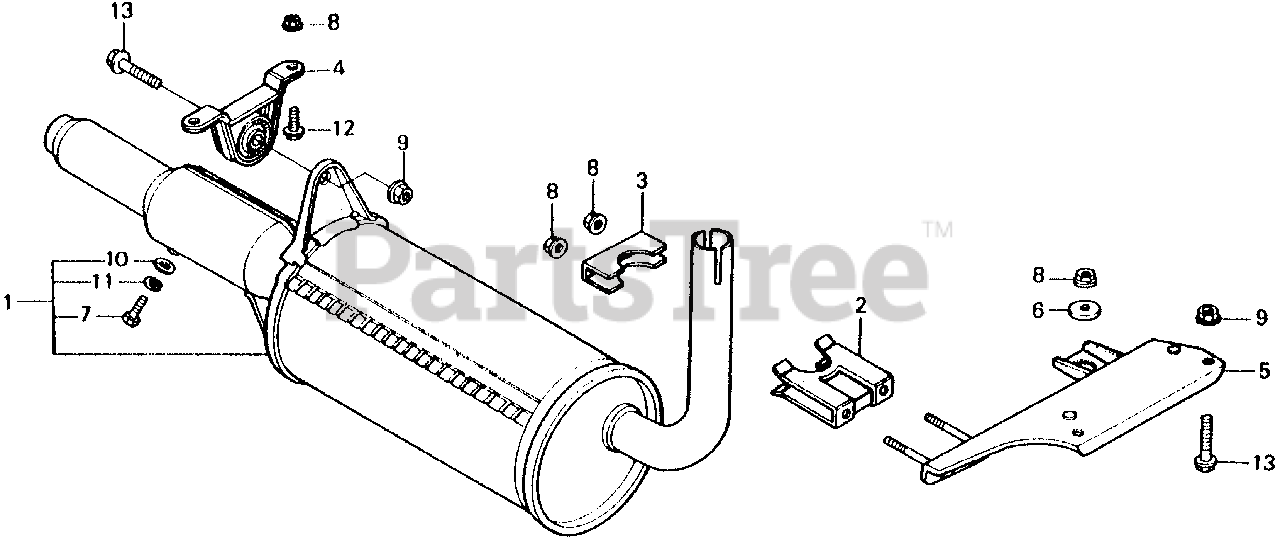

MUFFLER + BUMPER STOPPER Parts Diagram

  • Title

1

Honda 18300-895-003

MUFFLER ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 18323-895-000

STAY, EX.

$

$

Not available

3

Honda 18324-895-000

STAY B, EX. PIPE

$

$

Not available

4

Honda 18326-895-010

BRACKET ASSY., RR. MUFFLER

$

$

Not available

5

Honda 50320-895-000

STOPPER, BUMPER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 90473-842-000

WASHER (8MM)

$1.99

$

In Stock, Qty 5

0

7

Honda 92101-06010-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X10)

$1.99

$

Usually ships in 3-6 days

0

8

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

9

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

10

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

12

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

13

Honda 95700-10050-00

SEE PART DETAILS - SUP; BOLT, FLANGE (10X50)

$

$

Currently unavailable

13

Honda 95701-10050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)

$3.49

$

Usually ships in 3-6 days

0
