EV4000 A (EV4000) - Honda Generator, Made in Japan (SN: EV4000-1000001 - EV4000-9999999) ROTOR + STATOR + CIRCUIT BREAKER Parts Diagram

Generator, Made in Japan

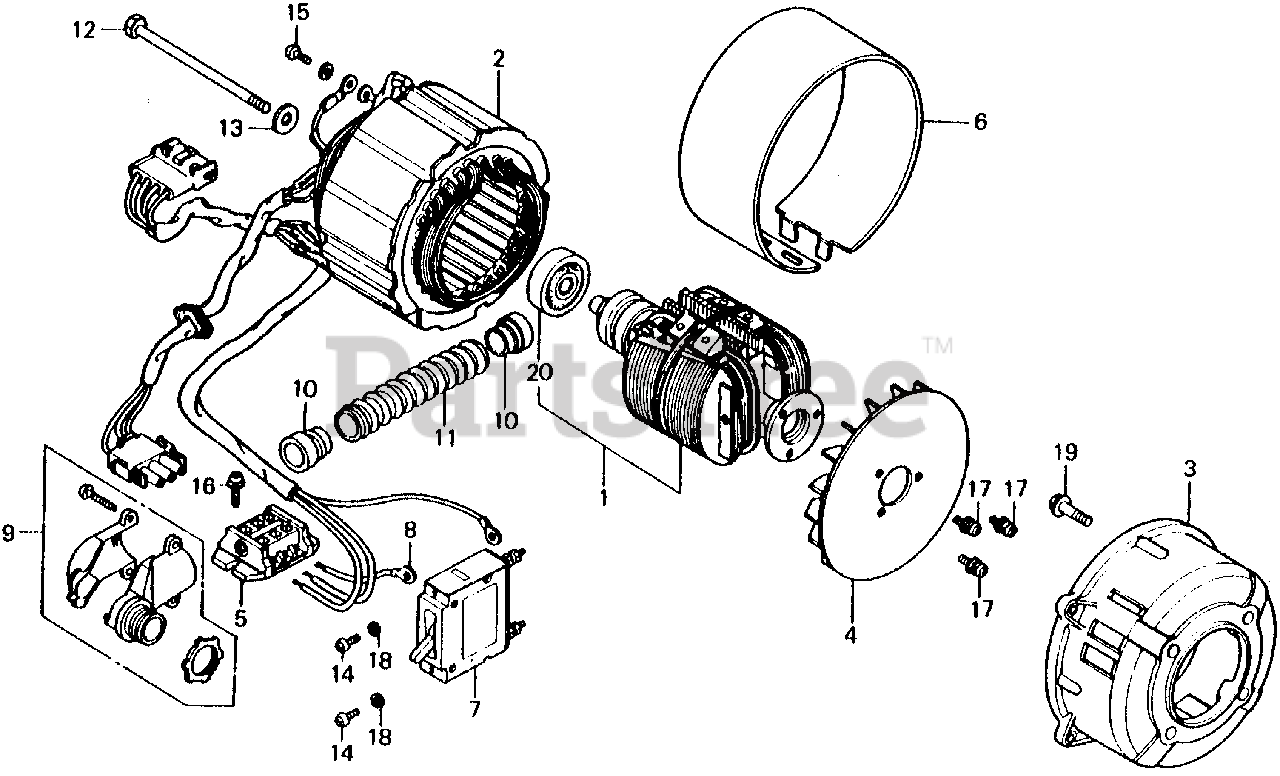

ROTOR + STATOR + CIRCUIT BREAKER Parts Diagram

  • Title

1

Honda 31104-895-003

ROTOR

Note: Use up to Frame SN 1005109.

$

$

Not available

1

Honda 31104-895-013

ROTOR

Note: Use from Frame SN 1005110.

$

$

Not available

2

Honda 31105-895-003

STATOR (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 31106-895-000

HOUSING, FR.

$

$

Not available

4

Honda 31112-895-000

FAN

$93.99

$

Usually ships in 3-6 days

0

5

Honda 31118-895-000

TERMINAL (3P) (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31127-880-000XC

COVER, STATOR *NH31* (MCKINLEY WHITE)

$

$

Not available

7

Honda 31411-895-000

BREAKER, CIRCUIT (35A) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 31412-895-300

WIRE, CIRCUIT BREAKER

$

$

Not available

9

Honda 31482-895-000

FITTING (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31483-895-000

CAP

$

$

Not available

11

Honda 31484-895-000

CONDUIT, FLEXIBLE METAL

$

$

Not available

12

Honda 90021-895-000

BOLT, HEX. (5/16X188)

$

$

Not available

13

Honda 90430-657-000

WASHER (8MM)

$10.99

$

In Stock, only 2 left!

0

14

Honda 93500-03008-0H

SCREW, PAN (3X8)

$1.49

$

In Stock, only 4 left!

0

15

Honda 90102-899-003

SCREW, PAN (5X12)

Note: Use from Frame SN 1005110.

$4.99

$

Usually ships in 3-6 days

0

15

Honda 93500-05012-3J

SCREW, PAN (5X12)

Note: Use up to Frame SN 1005109.

$1.49

$

Usually ships in 3-6 days

0

16

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

Note: Use from Frame SN 1005110.

$3.49

$

Usually ships in 3-6 days

0

17

Honda 93893-05014-08

SCREW-WASHER (5X14)

Note: Use up to Frame SN 1005109.

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, only 3 left!

0

19

Honda 95701-08028-08

BOLT, FLANGE (8X28)

$3.49

$

In Stock, only 2 left!

0

20

Honda 96150-63040-10

BEARING, RADIAL BALL (6304UU)

$27.99

$

Usually ships in 3-6 days

0
