EV4000 A (EV4000) - Honda Generator, Made in Japan (SN: EV4000-1000001 - EV4000-9999999) STARTER MOTOR (1) Parts Diagram

Generator, Made in Japan

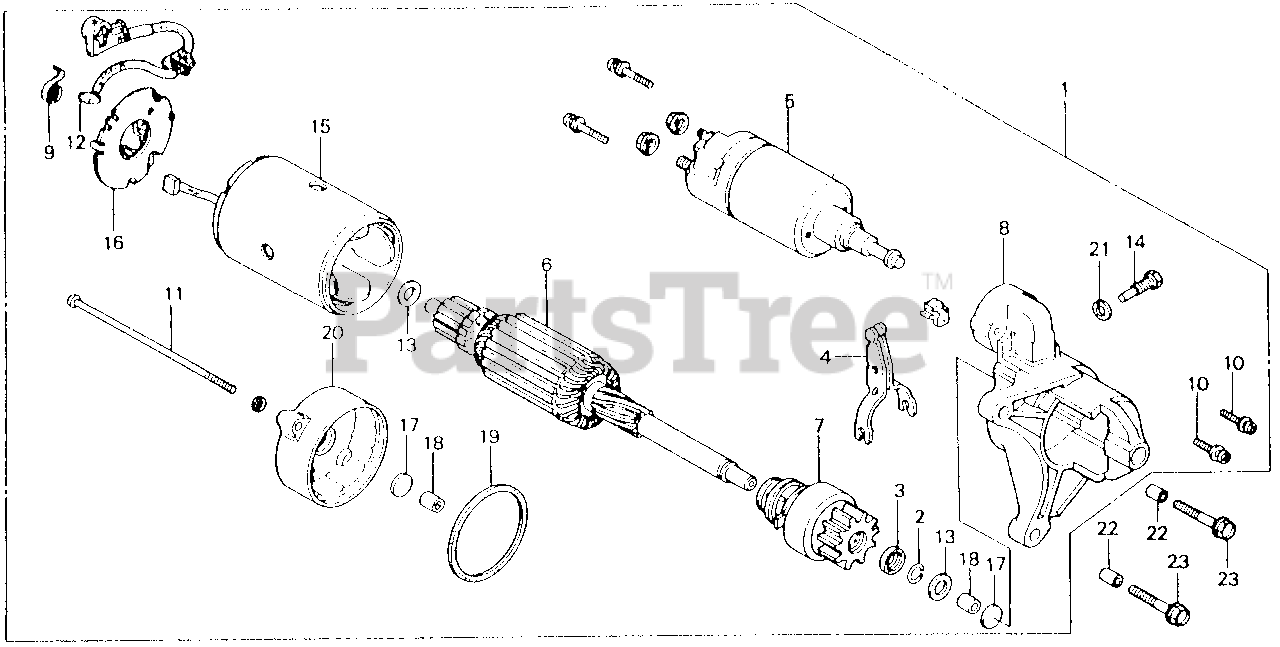

STARTER MOTOR (1) Parts Diagram

  • Title

1

Honda 31200-889-831

MOTOR ASSY., STARTER

Note: Use up to Engine SN 1294567.

$

$

Currently unavailable

2

Honda 31201-590-004

RING, SNAP (NOT AVAILABLE)

Note: Use up to Engine SN 1294567.

$

$

Currently unavailable

3

Honda 31202-590-004

COLLAR, CLUTCH STOP

Note: Use up to Engine SN 1294567.

$

$

Not available

4

Honda 31203-611-004

LEVER, PINION (NOT AVAILABLE)

Note: Use up to Engine SN 1294567.

$

$

Currently unavailable

5

Honda 31204-890-801

SWITCH, MAGNETIC

Note: Use up to Engine SN 1294567.

$

$

Currently unavailable

6

Honda 31206-890-801

ARMATURE (NOT AVAILABLE)

Note: Use up to Engine SN 1294567.

$

$

Currently unavailable

7

Honda 31207-890-801

PINION

Note: Use up to Engine SN 1294567.

$

$

Not available

8

Honda 31208-890-801

CASE, GEAR

Note: Use up to Engine SN 1294567.

$

$

Not available

9

Honda 31212-611-004

SPRING, BRUSH

Note: Use up to Engine SN 1294567.

$

$

Currently unavailable

10

Honda 31213-611-004

SCREW, MAGNETIC SWITCH SETTING

Note: Use up to Engine SN 1294567.

$

$

Not available

11

Honda 31214-611-004

BOLT, THROUGH

Note: Use up to Engine SN 1294567.

$

$

Not available

12

Honda 31215-890-801

BRUSH

Note: Use up to Engine SN 1294567.

$

$

Not available

13

Honda 31216-611-004

WASHER

Note: Use up to Engine SN 1294567.

$

$

Not available

14

Honda 31217-890-801

SCREW, ARMATURE SETTING

Note: Use up to Engine SN 1294567.

$

$

Not available

15

Honda 31218-890-801

COIL, FIELD

Note: Use up to Engine SN 1294567.

$

$

Not available

16

Honda 31231-890-801

HOLDER, BRUSH

Note: Use up to Engine SN 1294567.

$

$

Not available

17

Honda 31232-611-004

COVER, BEARING

Note: Use up to Engine SN 1294567.

$

$

Not available

18

Honda 31233-611-004

BUSH, BEARING

Note: Use up to Engine SN 1294567.

$

$

Not available

19

Honda 31234-611-004

GASKET, RUBBER PLATE

Note: Use up to Engine SN 1294567.

$

$

Not available

20

Honda 31219-611-004

COVER, RR.

Note: Use up to Engine SN 1294567.

$

$

Not available

21

Honda 94111-08000

WASHER, SPRING (8MM)

Note: Use up to Engine SN 1294567.

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94301-10160

PIN A, DOWEL (10X16)

Note: Use up to Engine SN 1294567.

$2.99

$

In Stock, only 3 left!

0

23

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

Note: Use up to Engine SN 1294567.

$1.99

$

Usually ships in 3-6 days

0
