EV6010 AC/A (ECB) - Honda Generator RV Type, Made in Japan (SN: ECB-1008383 - ECB-1019999) REAR HOUSING Parts Diagram

Generator RV Type, Made in Japan

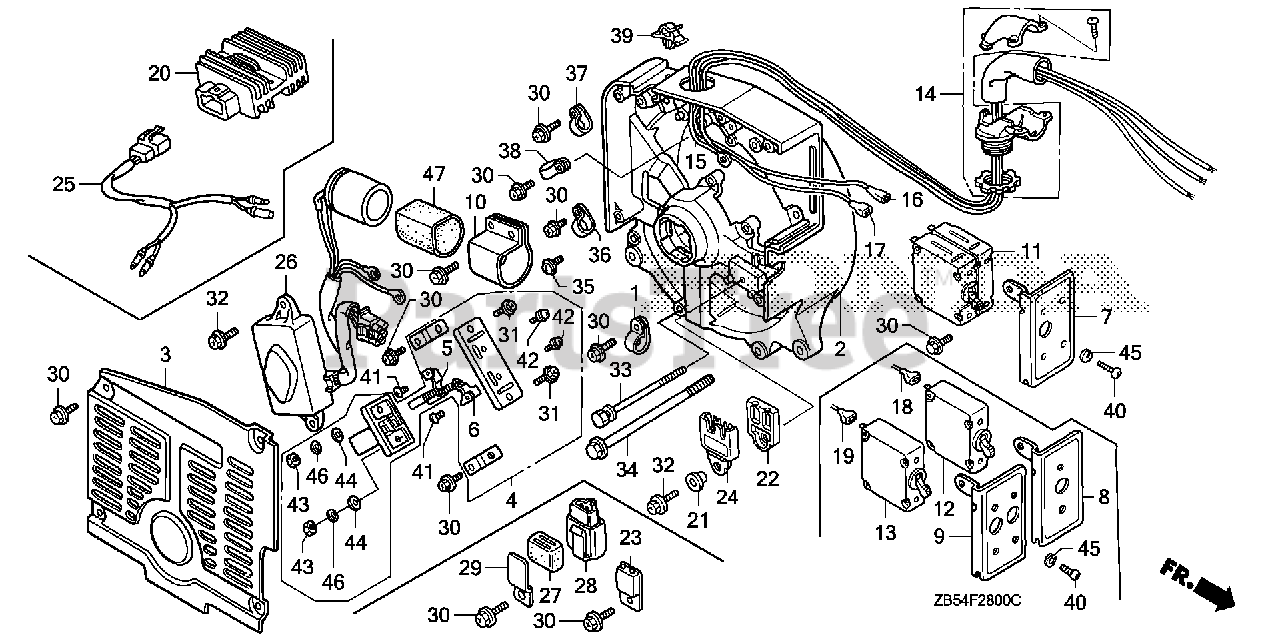

REAR HOUSING Parts Diagram

  • Title

1

Honda 30569-895-000

CLAMP F, CABLE

$4.99

$

Usually ships in 3-6 days

0

2

Honda 31108-ZB5-405

HOUSING, RR.

$343.99

$

Usually ships in 3-6 days

0

3

Honda 31113-ZB5-631

COVER, GENERATOR END

$

$

Not available

4

Honda 31120-880-010

SEE PART DETAILS - PRI; HOLDER ASSY., BRUSH

$

$

Not available

4

Honda 31120-895-000

SEE PART DETAILS - SUP; HOLDER ASSY., BRUSH
(Superseded to 31120-880-010)

$

$

Not available

5

Honda 31122-880-000

BRUSH A

$35.99

$

In Stock, only 1 left!

0

6

Honda 31128-880-000

BRUSH B

$

$

Not available

9

Honda 31415-ZB5-931ZA

BRACKET, BREAKER *NH192M* (GENTLY SILVER METALLIC)

$24.99

$

Usually ships in 3-6 days

0

10

Honda 31427-ZB5-003

HOLDER, CONDENSER

$10.99

$

Usually ships in 3-6 days

0

12

Honda 31430-ZB5-830

BREAKER, CIRCUIT (30A)

$246.99

$

Usually ships in 3-6 days

0

13

Honda 31430-ZB5-930

BREAKER, CIRCUIT (20A)

$246.99

$

Usually ships in 3-6 days

0

14

Honda 31482-895-000

FITTING (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 31571-ZB5-731

WIRE, GROUND

$30.99

$

Usually ships in 3-6 days

0

18

Honda 31572-ZB5-731

WIRE, BREAKER (RED)

$30.99

$

Usually ships in 3-6 days

0

19

Honda 31572-ZB5-931

WIRE, BREAKER (1720MM) (RED/WHITE)

$30.99

$

Usually ships in 3-6 days

0

23

Honda 31720-ZB4-003

SEE PART DETAILS - SUP; DIODE, D.C.
(Superseded to 31720-ZA8-013)

$51.99

$

Usually ships in 3-6 days

0

26

Honda 32350-ZB5-733

SEE PART DETAILS - PRI; REGULATOR ASSY., AUTOMATIC VOLTAGE

$891.99

$

Usually ships in 3-6 days

0

27

Honda 38306-KK4-000

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

$4.99

$

Usually ships in 3-6 days

0

28

Honda 38351-ZB5-701

RELAY, CONTROL

$66.99

$

Usually ships in 3-6 days

0

29

Honda 38353-ZB5-701

BRACKET, RELAY

$6.49

$

Usually ships in 3-6 days

0

30

Honda 90031-875-003

SCREW, TAPPING (5X12) (GROUND CABLE)

$3.49

$

In Stock, only 4 left!

0

31

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$3.49

$

Usually ships in 3-6 days

0

33

Honda 90091-ZB5-701

BOLT-WASHER (5X180)

$12.99

$

Usually ships in 3-6 days

0

34

Honda 90102-ZB5-000

BOLT, FLANGE (8X190)

$18.99

$

Usually ships in 3-6 days

0

35

Honda 90102-899-003

SCREW, PAN (5X12) (GROUND CABLE)

$4.49

$

Usually ships in 3-6 days

0

36

Honda 90626-ZB5-730

CLIP (10.7MM)

$6.49

$

Usually ships in 3-6 days

0

37

Honda 90626-ZB5-730

CLIP (10.7MM)

$6.49

$

Usually ships in 3-6 days

0

38

Honda 90627-ZC0-000

CLIP (15.5MM)

$4.49

$

Usually ships in 3-6 days

0

39

Honda 90673-GJ5-003

CLIP, CORD

$4.99

$

Usually ships in 3-6 days

0

40

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, Qty 10

0

41

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

42

Honda 93891-04016-08

SCREW-WASHER (4X16)

$1.99

$

Usually ships in 3-6 days

0

43

Honda 94001-04080-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0562116).

$1.49

$

Usually ships in 3-6 days

0

44

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0

45

Honda 94111-03800

WASHER, SPRING (3MM) (Honda Code 0285668).

$0.99

$

Usually ships in 3-6 days

0

46

Honda 94111-04800

WASHER, SPRING (4MM) (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

47

Honda 31428-ZB5-003

TUBE

$7.99

$

Usually ships in 3-6 days

0
