EVD4010 ADV/A (EZCW) - Honda Generator RV Type, Made in Japan (SN: EZCW-1000161 - EZCW-1009999) CONTROL BOX (2) Parts Diagram

Generator RV Type, Made in Japan

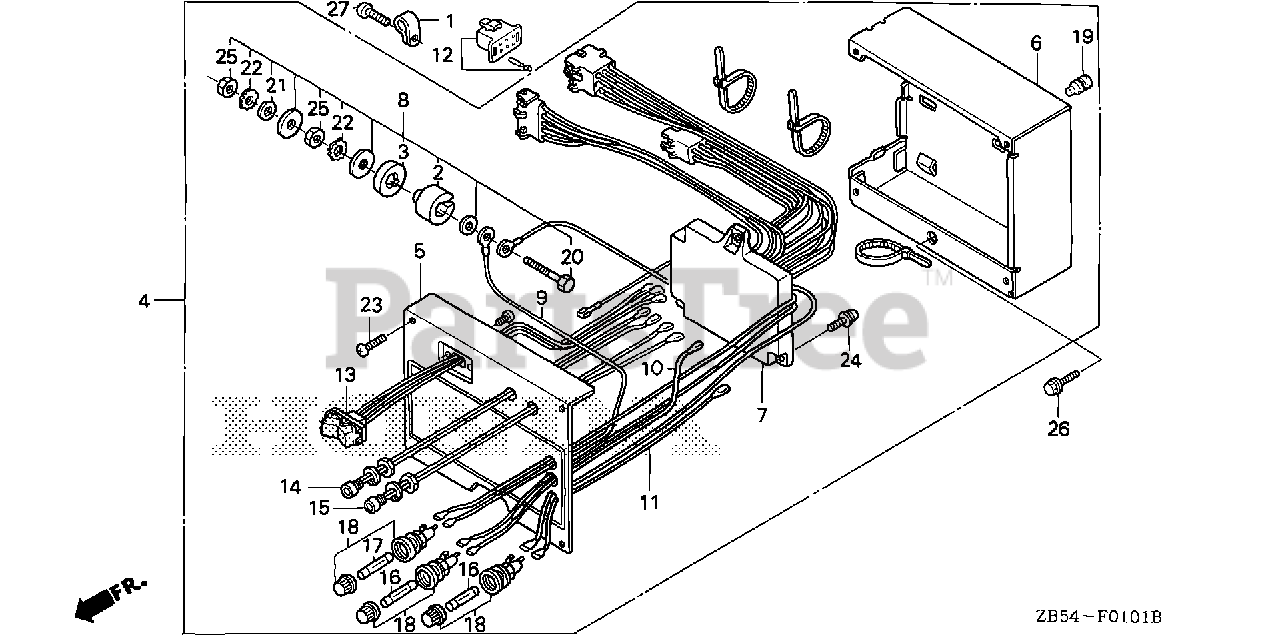

CONTROL BOX (2) Parts Diagram

  • Title

1

Honda 30569-895-000

CLAMP F, CABLE

$5.49

$

Usually ships in 3-6 days

0

2

Honda 31211-895-300

COLLAR A, D.C. TERMINAL

$17.99

$

Usually ships in 3-6 days

0

3

Honda 31213-895-300

COLLAR B, D.C. TERMINAL

$7.49

$

Usually ships in 3-6 days

0

4

Honda 31400-ZB5-G31ZA

BOX ASSY., CONTROL *NH192M* (GENTLY SILVER METALLIC)

$

$

Not available

5

Honda 31420-ZB5-G30ZA

PANEL, CONTROL *NH192M* (GENTLY SILVER METALLIC)

$

$

Not available

6

Honda 31425-ZB5-731

BOX, CONTROL

$43.99

$

Usually ships in 3-6 days

0

7

Honda 31450-ZB5-702

CONTROL ASSY.

$

$

Not available

8

Honda 31520-ZB5-000

TERMINAL SET, BATTERY

$50.99

$

Usually ships in 3-6 days

0

9

Honda 31561-ZB5-732

WIRE A, FUSE HOLDER

$13.99

$

Usually ships in 3-6 days

0

10

Honda 31562-ZB5-732

WIRE B, FUSE HOLDER

$7.99

$

Usually ships in 3-6 days

0

11

Honda 31563-ZB5-732

WIRE C, FUSE HOLDER

$7.99

$

Usually ships in 3-6 days

0

13

Honda 36120-ZB5-003

SWITCH, ENGINE

$

$

Not available

14

Honda 37560-ZB5-731

SOCKET ASSY., LAMP (GREEN)

$50.99

$

Usually ships in 3-6 days

0

15

Honda 37570-ZB5-731

SOCKET ASSY., LAMP (RED)

$47.99

$

Usually ships in 3-6 days

0

16

Honda 38201-ZB5-640

FUSE (4A)

$17.99

$

Usually ships in 3-6 days

0

17

Honda 38202-ZB5-831

FUSE (15A)

$13.99

$

Usually ships in 3-6 days

0

18

Honda 38211-ZB5-831

SEE PART DETAILS - PRI; HOLDER, FUSE

$35.99

$

Usually ships in 3-6 days

0

19

Honda 80109-KR3-000

CUSHION, RR. FENDER

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90102-895-000

BOLT, D.C. TERMINAL

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90501-895-300

WASHER, D.C. TERMINAL

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90502-895-003

WASHER, STAR

$2.99

$

Usually ships in 3-6 days

0

23

Honda 93500-04012-0G

SCREW, PAN (4X12)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12)
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94002-08300-0S

NUT, HEX. (8MM)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

27

Honda 93891-05012-00

SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0
