EVD4010 ADV/A (EZCW) - Honda Generator RV Type, Made in Japan (SN: EZCW-1000161 - EZCW-1009999) THERMOSTAT CASE Parts Diagram

Generator RV Type, Made in Japan

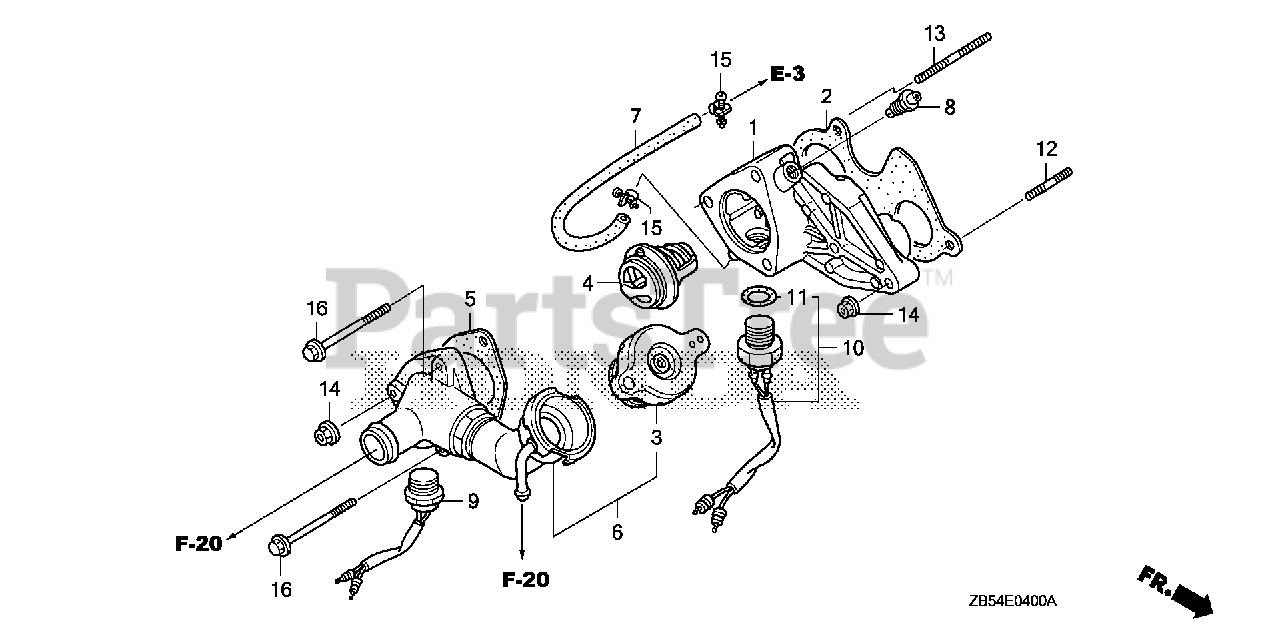

THERMOSTAT CASE Parts Diagram

  • Title

1

Honda 16560-ZA0-951

CASE, THERMOSTAT

$124.99

$

Usually ships in 3-6 days

0

2

Honda 16563-ZA0-800

SEE PART DETAILS - PRI; GASKET, GOVERNOR CASE

$10.99

$

In Stock, only 1 left!

0

3

Honda 19111-KE1-013

CAP, RADIATOR FILLER

$52.99

$

Usually ships in 3-6 days

0

4

Honda 19310-ZA0-701

SEE PART DETAILS - PRI; THERMOSTAT ASSY.

$77.99

$

In Stock, only 2 left!

0

5

Honda 19318-ZA0-800

SEE PART DETAILS - PRI; GASKET, THERMOSTAT COVER

$5.99

$

In Stock, only 1 left!

0

6

Honda 19320-ZA0-980

COVER, THERMOSTAT

$150.99

$

Usually ships in 3-6 days

0

7

Honda 19508-ZA0-000

HOSE, WATER BYPASS

$10.99

$

In Stock, only 1 left!

0

8

Honda 19516-PC1-000

BOLT, BREATHING WATER

$30.99

$

Usually ships in 3-6 days

0

9

Honda 37765-ZA0-982

SWITCH, ENGINE THERMOSTAT (NIPPON THERMOSTAT)

$117.99

$

Usually ships in 3-6 days

0

10

Honda 37800-ZA0-981

SWITCH, THERMOSTAT SOLENOID

$115.99

$

Usually ships in 3-6 days

0

11

Honda 91307-PH9-000

O-RING (15.5X1.4)

$

$

Not available

12

Honda 92900-06025-1B

BOLT, STUD (6X25)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 92900-06060-0B

BOLT, STUD (6X60)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 9

0

15

Honda 95002-41250-08

CLAMP, TUBE (D12.5)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 95701-06065-08

BOLT, FLANGE (6X65)

$3.49

$

Usually ships in 3-6 days

0
