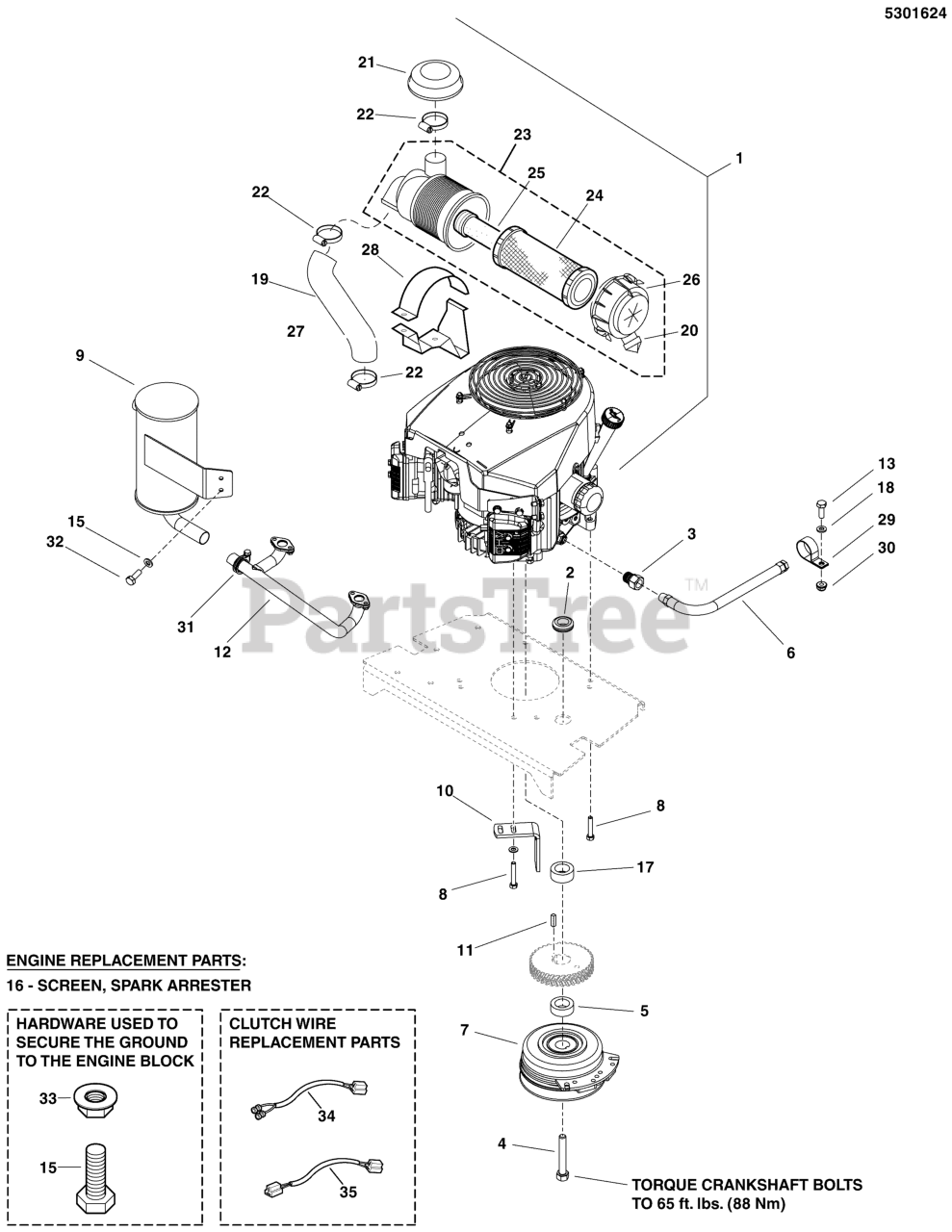

Evolution (5900779) - Ferris Evolution Series 48" Stand-On Mower, 27hp Kawasaki Engine & PTO Group - Kawasaki FX751V Parts Diagram

Evolution Series 48" Stand-On Mower, 27hp Kawasaki

Engine & PTO Group - Kawasaki FX751V Parts Diagram

  • Title

1

ENGINE, 27HP, KAWASAKI

$

$

Not available

2

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

3

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5102864

BOLT, CRANKSHAFT,7/16-20X2-1/2, GD8
(Superseded to 5102864YP)

$5.49

$

Usually ships in 2-12 days

0

5

Ferris 5048135

SPACER, 1.13 x 1.75 x .62
(Superseded to 5048135FS)

$17.99

$

Usually ships in 2-12 days

0

6

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

7

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

8

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5102144

MUFFLER, 27HP KAWASAKI, EVOLUTION

Note: (S/N: 2013821874 & ABOVE)

$210.99

$

Usually ships in 2-12 days

0

9

Ferris 5600351

KIT, MUFFLER & DECK GUARD, EVO

Note: (S/N: 2013821873 & BELOW)

$281.99

$

Usually ships in 2-12 days

0

10

Ferris 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

11

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5101866

MANIFOLD, EXHAUST

$81.99

$

Usually ships in 2-12 days

0

13

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

16

Ferris 5101641

SCREEN, SPARK ARRESTER (SV)
(Superseded to 5101641YP)

$84.99

$

Usually ships in 2-12 days

0

17

Ferris 5101289

SPACER, 1.13 X 1.75 X .75

$20.99

$

Usually ships in 2-12 days

0

18

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5102126X9

AIR INLET TUBE, 22,24&26HP KAWASAKI (SV)

Note: (S/N: 2013821996 & ABOVE)

$

$

Not available

19

Ferris 5101548

AIR INLET TUBE (SV)

Note: (S/N: 2013821995 & BELOW)

$88.99

$

Usually ships in 2-12 days

0

20

Ferris 5102126X8

RUBBER, Dust Valve, 22,24&26HP KAWASAKI (SV)

Note: (S/N: 2013821996 & ABOVE)

$

$

Not available

20

Ferris 5023144

RUBBER, Dust Valve (SV)

Note: (S/N: 2013821995 & BELOW)

$

$

Not available

21

Ferris 5023143

RAIN CAP, AIR FILTER, 22,24&26HP, KAWASAKI (SV)

Note: (S/N: 2013821996 & ABOVE)

$

$

Not available

21

Ferris 5101538

RAIN CAP, KAWA, DFI

Note: (S/N: 2013821995 & BELOW)

$

$

Currently unavailable

22

Ferris 5023146

CLAMP, HOSE

Note: (S/N: 2013821996 & ABOVE)

$11.99

$

Usually ships in 2-12 days

0

22

Ferris 5101539

CLAMP, CAP

Note: (S/N: 2013821995 & BELOW)

$8.99

$

Usually ships in 2-12 days

0

23

Ferris 5102126X1

AIR FILTER ASSEMBLY, 22,24&26HP KAWASAKI (SV)

Note: (S/N: 2013821996 & ABOVE)

$

$

Not available

23

Ferris 5101540

AIR FILTER ASSEMBLY (SV)

Note: (S/N: 2013821995 & BELOW)

$

$

Currently unavailable

24

Ferris 5102126X3

AIR FILTER, PRIMARY,22,24&26HP, KAWASAKI (SV)

Note: (S/N: 2013821996 & ABOVE)

$

$

Not available

24

Ferris 5101543

AIR FILTER, ELEMENT, PRIMARY

Note: (S/N: 2013821995 & BELOW)

$

$

Currently unavailable

25

Ferris 5102126X4

AIR FILTER, SECONDARY, 22, 24&26HP KAWASAKI (SV)

Note: (S/N: 2013821996 & ABOVE)

$

$

Not available

25

Ferris 5101542

AIR FILTER, ELEMENT, SECONDARY

Note: (S/N: 2013821995 & BELOW)

$

$

Currently unavailable

26

Ferris 5101544

CAP END, FILTER CASE (SV)

Note: (S/N: 2013821995 & BELOW)

$

$

Currently unavailable

26

Ferris 5102126X2

CAP END, FILTER CASE, 22,24&26HP, KAWASAKI (SV)

Note: (S/N: 2013821996 & ABOVE)

$

$

Not available

27

Ferris 5102126X6

BRACKET PLATE, LOWER, 22,24&26HP KAWASAKI (SV)

Note: (S/N: 2013821996 & ABOVE)

$46.99

$

Usually ships in 2-12 days

0

27

Ferris 5101546

BRACKET PLATE, LOWER (SV)

Note: (S/N: 2013821995 & BELOW)

$29.99

$

Usually ships in 2-12 days

0

28

Ferris 5102126X5

BRACKET PLATE, UPPER, 22,24&26HP KAWASAKI (SV)

Note: (S/N: 2013821996 & ABOVE)

$

$

Not available

28

Ferris 5101545

BRACKET PLATE, UPPER 27, 34 & 37 (SV)

Note: (S/N: 2013821995 & BELOW)

$17.99

$

Usually ships in 2-12 days

0

29

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

30

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

31

Ferris 5022810

CLAMP, EXHAUST EXTENSION
(Superseded to 5022810FS)

$7.49

$

Usually ships in 2-12 days

0

32

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

33

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

34

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

Note: (SV - S/N: 2015375706 & Above)

$66.99

$

Usually ships in 2-12 days

0

35

Ferris 5403576

WIRE HARNESS, JUMPER, WARNER CLUTCH (SV)
(Superseded to 5403576YP)

Note: (SV - S/N: 2015375705 & Below)

$65.99

$

Usually ships in 2-12 days

0
