Evolution (5900930) - Ferris Evolution Series 52" Stand-On Mower, 22hp Kawasaki Fuel Tank Mount & Supply Group Parts Diagram

Evolution Series 52" Stand-On Mower, 22hp Kawasaki

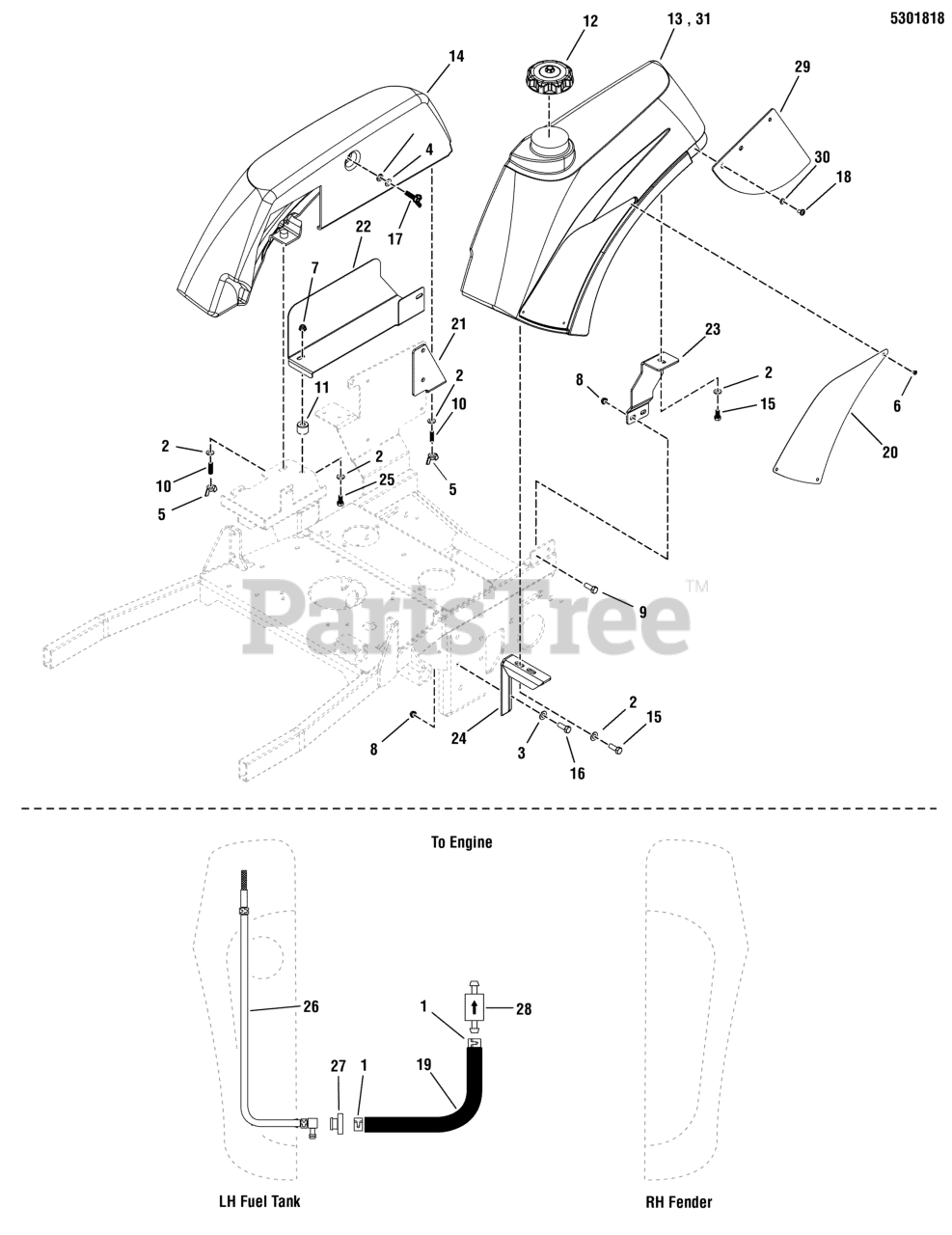

Fuel Tank Mount & Supply Group Parts Diagram

  • Title

1

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, only 3 left!

0

2

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025277

NUT, 5/16-18 WING NYLON LOCK

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 10

0

9

Ferris 5025501

SCREW, BUTTON HD. SOC CAP, 3/8-16X1. BZ

$2.49

$

Usually ships in 2-12 days

0

10

Ferris 5025530

SOC SET SCREW, 5/16-18 X 1-1/2 SS

$2.49

$

Usually ships in 2-12 days

0

11

Ferris 5046446

SPACER, .39 X 1.00 X .80
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

12

Ferris 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

Note: (S/N: 2015235971 & Below)

$30.99

$

In Stock, Qty 5

0

12

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

Note: (S/N: 2015235972 & Above)

$40.99

$

In Stock, only 1 left!

0

13

Ferris 5102019

FUEL TANK, EVOLUTION, 48/52

Note: (S/N: 2015235971 & Below)

$324.99

$

Usually ships in 2-12 days

0

14

Ferris 5102020

FENDER, EVOLUTION, 48/52

$279.99

$

Usually ships in 2-12 days

0

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

16

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

17

Ferris 5025525X10

WING, SCREW, 5/16-18 X 1-1/4, CZ

$5.99

$

Usually ships in 2-12 days

0

18

Ferris 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, only 3 left!

0

19

Ferris 5050831X24

HOSE, 1/4" FUEL, 24.00"
(Superseded to 5050831X24YP)

$8.99

$

Usually ships in 2-12 days

0

20

Ferris 5405628B

PLATE, BADGE EVOLUTION, 52 - RED

$16.99

$

Usually ships in 2-12 days

0

21

Ferris 5404764B

PLATE, RIGHT REAR TANK MOUNT - RED

$

$

Currently unavailable

22

Ferris 5404913B

GUARD, OIL FILTER - RESERVOIR, EVO - RED

$

$

Currently unavailable

23

Ferris 5405416B

PLATE, REAR TANK MOUNT, 48 - RED

$36.99

$

Usually ships in 2-12 days

0

24

Ferris 5405475B

WELD, MOUNT, FUEL TANK, FRONT - RED

$37.99

$

Usually ships in 2-12 days

0

25

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5101929

PICKUP TUBE ASM, FUEL TANK, 18.38" (SV)

$

$

Currently unavailable

27

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 5

0

28

Ferris 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$12.99

$

Usually ships in 2-12 days

0

29

Ferris 5102114

FLAP, GUARD, 48/52

$

$

Currently unavailable

30

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

31

Ferris 5103181

FUEL TANK, EVOLUTION, 48/52

Note: (S/N: 2015235972 & Above)

$

$

Currently unavailable
