Evolution (5900930) - Ferris Evolution Series 52" Stand-On Mower, 22hp Kawasaki Motion Control Group Parts Diagram

Evolution Series 52" Stand-On Mower, 22hp Kawasaki

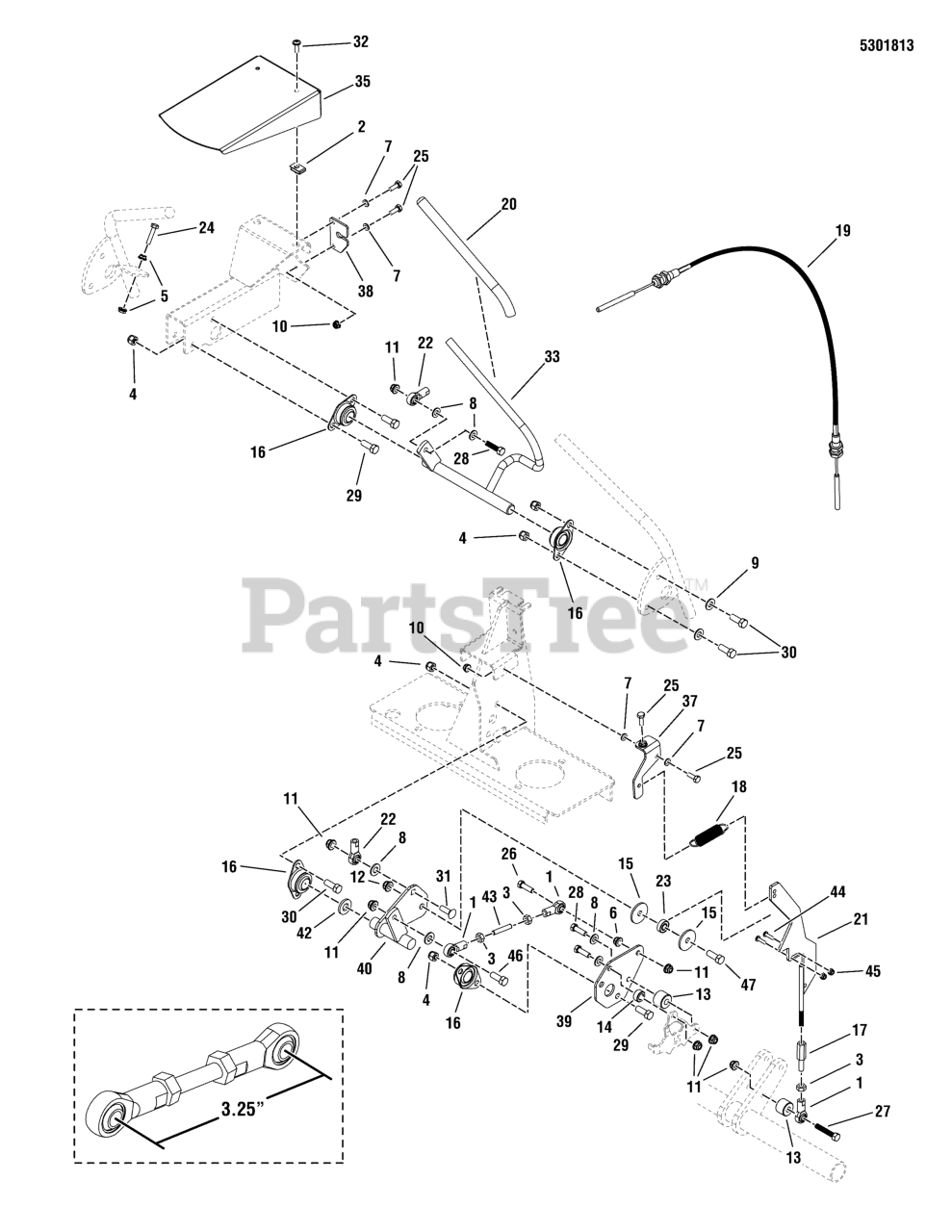

Motion Control Group Parts Diagram

  • Title

1

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

2

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 6

0

5

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

7

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 10

0

13

Ferris 5043815

SPACER, .39 X 1.00 X .75
(Superseded to 5043815YP)

$10.99

$

Usually ships in 2-12 days

0

14

Ferris 5044933

SPACER, .39 X .75 X .38a
(Superseded to 5044933SM)

$4.99

$

Usually ships in 2-12 days

0

15

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

16

Ferris 5100561

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5100561SM)

$14.99

$

In Stock, only 2 left!

0

17

Ferris 5101243

ADJUSTER, ROD LINKAGE 5/16-24

$15.99

$

Usually ships in 2-12 days

0

18

Ferris 5101339

SPRING-EXT, 3.281 x .751 x .075 WIRE
(Superseded to 5101339FS)

$13.99

$

Usually ships in 2-12 days

0

19

Ferris 5102273

CABLE, PUSH/PULL, 30" SPEED CONTROL
(Superseded to 5102273FS)

$98.99

$

Usually ships in 2-12 days

0

20

Ferris 5101715

GRIP, FOAM, .48 x 10 x .125 Black
(Superseded to 5101715FS)

$7.49

$

Usually ships in 2-12 days

0

21

Ferris 5102149

WELD, CONTROL RAMP, EVO
(Superseded to 5102149FS)

$36.99

$

Usually ships in 2-12 days

0

22

Ferris 5101801

ROD END, FEMALE, 10-32 W 5/16" BORE
(Superseded to 5101801YP)

$19.99

$

In Stock, only 1 left!

0

23

Ferris 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

24

Ferris 5025010X10

BOLT, 1/4-20 X 1-1/4, GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 9

0

25

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

26

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5025011X16

BOLT, 5/16-18 X 2, GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025011X9

BOLT, 5/16-18 X 1-1/8 GD5
(Superseded to 5025011X9SM)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

31

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

32

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5405637B

WELD,CONTROLS, HANDLE BARS, LH, EVO -RED
(Superseded to 5405637BFS)

$56.99

$

Usually ships in 2-12 days

0

34

Ferris 5405636B

WELD,CONTROLS, HANDLE BARS, RH, EVO -RED
(Superseded to 5405636BFS)

$56.99

$

Usually ships in 2-12 days

0

35

Ferris 5404625B

PLATE, MOTION CONTROL GUARD - RED

$

$

Currently unavailable

36

Ferris 5404835B

WELD, SPRING ADJUSTER, RH - RED

$

$

Currently unavailable

37

Ferris 5404836B

WELD, SPRING ADJUSTER, LH - RED

$

$

Currently unavailable

38

Ferris 5404848B

PLATE, CABLE - RED

$5.49

$

Usually ships in 2-12 days

0

39

Ferris 5405411B

PLATE, PUMP CONTROL, 48/52 - RED

$

$

Currently unavailable

40

Ferris 5405473B

SHAFT, LOWER CONTROL, LH - RED

$

$

Currently unavailable

41

Ferris 5405474B

SHAFT, LOWER CONTROL, RH - RED

$

$

Currently unavailable

42

Ferris 5047461

SPACER, .76 X 1.00 X .25
(Superseded to 5047461SM)

$4.99

$

Usually ships in 2-12 days

0

43

Ferris 5047740

LINK, STUD
(Superseded to 5047740SM)

$11.99

$

Usually ships in 2-12 days

0

44

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

45

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

46

Ferris 5025011X10

BOLT, 5/16-20 X 1-1/4, GD5
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

47

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

Usually ships in 2-12 days

0
