Evolution (5900930) - Ferris Evolution Series 52" Stand-On Mower, 22hp Kawasaki Pump Drive Group Parts Diagram

Evolution Series 52" Stand-On Mower, 22hp Kawasaki

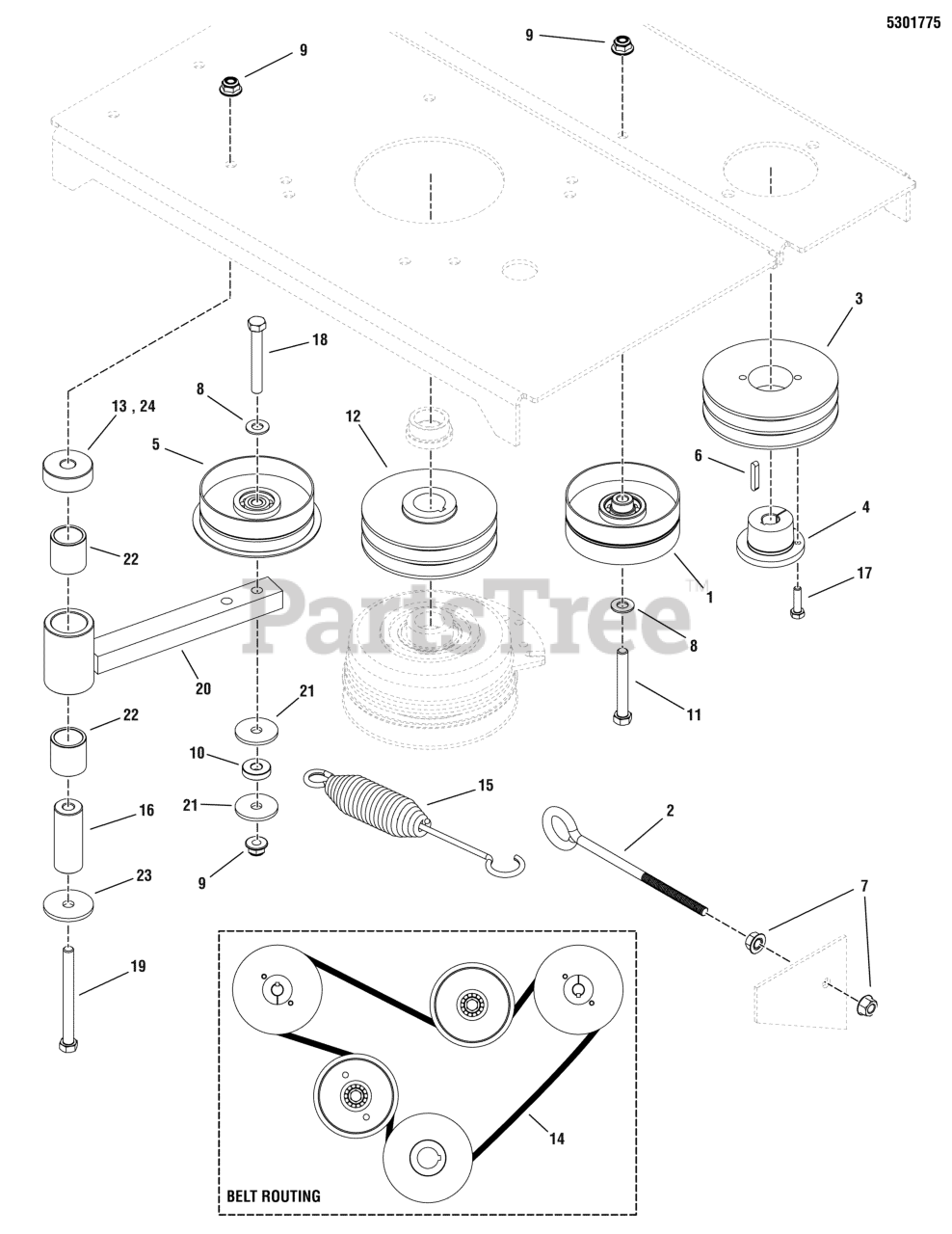

Pump Drive Group Parts Diagram

  • Title

1

Ferris 5021442

PULLEY-IDLER, 5.00OD, .385ID, 1.50W STL

$

$

Not available

2

Ferris 5021811

EYE BOLT, 3/8-16 X 8, 1 EYE
(Superseded to 5021811SM)

$8.49

$

In Stock, only 1 left!

0

3

Ferris 5022586

PULLEY, PUMP DRIVE
(Superseded to 5022586SM)

$121.99

$

Usually ships in 2-12 days

0

4

Ferris 5022587

BUSHING, TAPERED HUB
(Superseded to 5022587SM)

$27.99

$

Usually ships in 2-12 days

0

5

Ferris 5103808

PULLEY, IDLER, SINGLE FLANGE

$

$

Currently unavailable

6

Ferris 5023254

KEY, 5MM SQ. W/ RADIUS
(Superseded to 5023254SM)

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

8

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 10

0

10

Ferris 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, only 2 left!

0

11

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5047075

PULLEY, CRANKSHAFT, 1.126 ID X 4.75 OD

$128.99

$

Usually ships in 2-12 days

0

13

Ferris 5100314

SPACER, .51 X 1.75 X .63
(Superseded to 5100314YP)

Note: (S/N: 2013951792 & BELOW)

$15.99

$

Usually ships in 2-12 days

0

14

Ferris 5100555

BELT, BANDED A-SEC,64.76EL,POLY,RAW EDGE

$101.99

$

Usually ships in 2-12 days

0

15

Ferris 5100632

SPRING, EXTENSION, SWIVEL. LONG HOOK
(Superseded to 5100632YP)

$38.99

$

Usually ships in 2-12 days

0

16

Ferris 5102004

SPACER, .39 X 1.000 X 2.55, SS
(Superseded to 5102004YP)

$27.99

$

Usually ships in 2-12 days

0

17

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

19

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

20

See "PUMP DRIVE [Cast Idler Arm for replacing Steel Pump Drive Idler Arm]"

$

$

Not available

21

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

22

Ferris 5022157

BUSHING, BRASS, 1.25X1X1.25
(Superseded to 5022157SM)

$12.99

$

Usually ships in 2-12 days

0

23

Ferris 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, only 1 left!

0

24

Ferris 5045475

SPACER, .45 X 1.88 X .38
(Superseded to 5045475SM)

Note: (S/N: 2013951793 & ABOVE)

$14.99

$

Usually ships in 2-12 days

0
