EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki 36" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

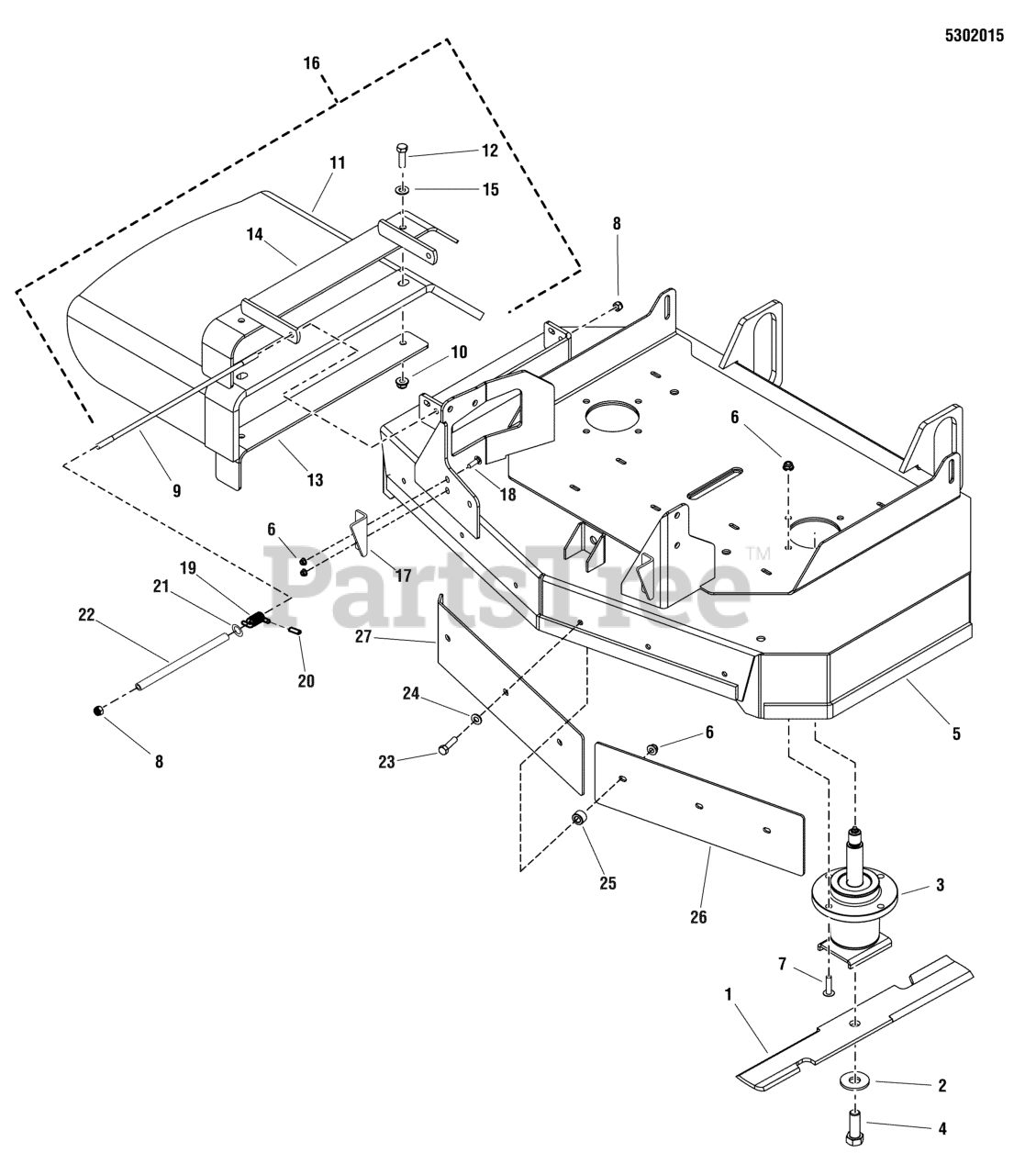

36" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5021227S

BLADE, 18", SET OF THREE

$80.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025159

WASHER, 5/8 USS

$

$

Currently unavailable

3

Snapper Pro 5061175

ASSM, SPINDLE, BLADE SADDLE

$308.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5600403

DECK SHELL W/ DECALS, EVS, 36 - RED

$

$

Currently unavailable

6

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 4 left!

0

8

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

9

Snapper Pro 5042555

ROD, 5/16 X 13.75, TBE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

11

Snapper Pro 5402404

CHUTE, DISCHARGE, RUBBER
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5402362A

SUPPORT,DISCHARGE CHUTE - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5600132

KIT, DISCHARGE CHUTE, 44/48/52

Note: (Includes Ref No. 10 - 15)(SV)

$

$

Not available

17

Snapper Pro 5405103D

PLATE, DECK STOP, EVO 48 - RED

$

$

Currently unavailable

18

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

19

Snapper Pro 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.49

$

In Stock, only 1 left!

0

20

Snapper Pro 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5050086X8P25

TUBE, 1/2 X 3/8 BLACK POLY, 8.25 LONG

$

$

Currently unavailable

23

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

24

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

25

Snapper Pro 5047408

SPACER, .39 X .75 X .50, CZ

$

$

Currently unavailable

26

Snapper Pro 5406221D

PLATE, BLOCKOFF BAFFLE, LH, 36 - RED

$

$

Currently unavailable

27

Snapper Pro 5406222D

PLATE, BLOCKOFF BAFFLE, RH, 36 - RED

$

$

Currently unavailable
