EW140 A (EA9) - Honda Generator, Made in Japan (SN: EA9-1000001 - EA9-9999999) CYLINDER Parts Diagram

Generator, Made in Japan

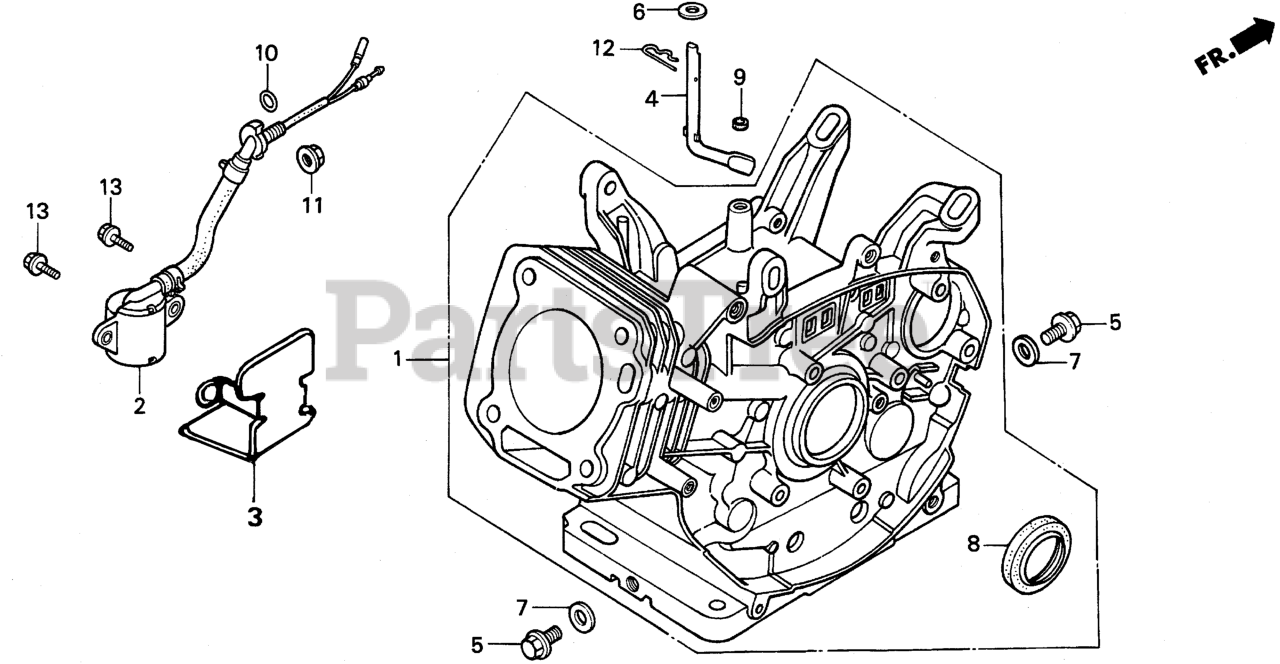

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZE2-406

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 7668635).

$779.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-033

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL (Honda Code 5361605).
(Superseded to 15510-ZE2-043)

Note: Use up to Engine SN 1053959.

$71.99

$

In Stock, only 2 left!

0

2

Honda 15510-ZE2-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL (Honda Code 5792361).
(Superseded to 15510-ZE2-053)

Note: Use up to Engine SN 1053959.

$71.99

$

In Stock, only 2 left!

0

2

Honda 15510-ZE2-053

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

Note: Use up to Engine SN 1053959.

$71.99

$

In Stock, only 2 left!

0

2

Honda 15510-ZE2-703

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-704)

Note: Use from Engine SN 1053960.

$

$

Not available

3

Honda 15515-ZE2-700

PROTECTOR, OIL LEVEL SWITCH

$

$

Not available

4

Honda 16541-ZE2-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$13.99

$

Usually ships in 3-6 days

0

5

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$3.49

$

In Stock, Qty 20+

0

6

Honda 90446-KE1-000

WASHER (8.2X17X0.8) (Honda Code 2027134).

$2.99

$

Usually ships in 3-6 days

0

7

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM) (Honda Code 2028793).

Note: Use up to Engine SN 1518601.

$3.99

$

In Stock, only 1 left!

0

7

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

Note: Use from Engine SN 1518602.

$1.99

$

In Stock, Qty 20+

0

8

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$13.99

$

In Stock, only 3 left!

0

9

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$6.49

$

In Stock, only 4 left!

0

9

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$6.49

$

In Stock, only 4 left!

0

10

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$4.49

$

In Stock, Qty 20+

0

11

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$2.49

$

In Stock, Qty 19

0

12

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 20+

0

13

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
