EW171 A (EB1) - Honda Generator, Made in Japan (SN: EB1-1000001 - EB1-1099999) CYLINDER Parts Diagram

Generator, Made in Japan

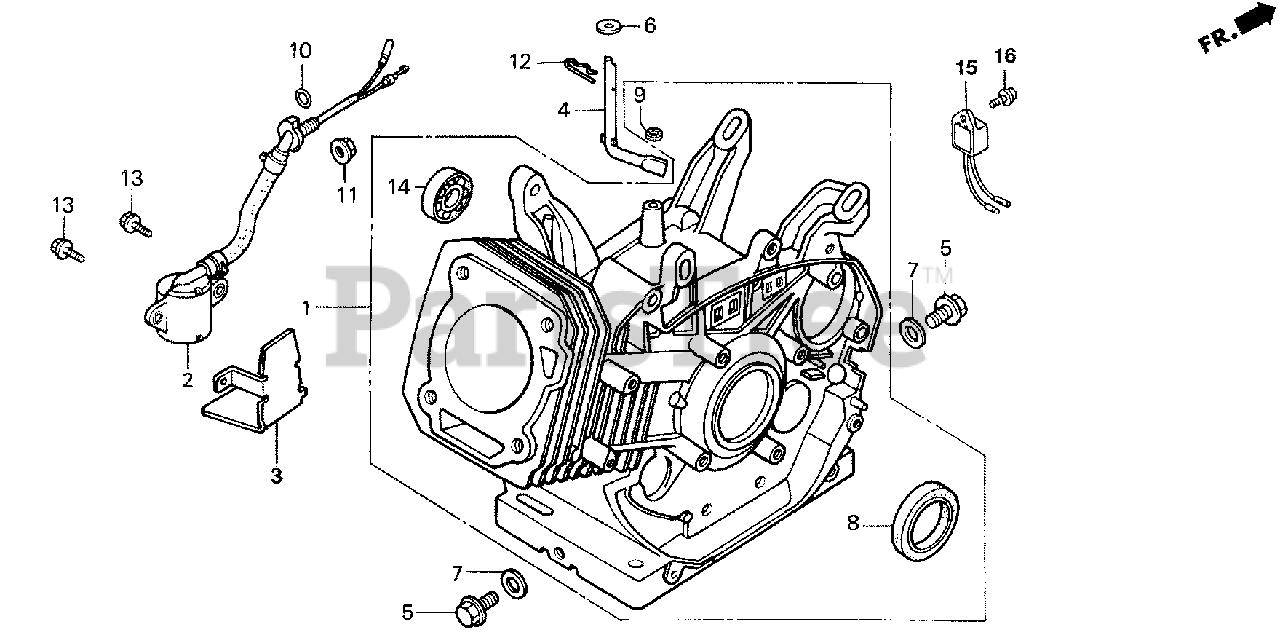

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZE3-406

SEE PART DETAILS - SUP; CYLINDER ASSY.

$

$

Currently unavailable

2

Honda 15510-ZE2-023

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL

Note: Use up to Engine SN 1053959.

$56.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-703

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-704)

Note: Use from Engine SN 1053960.

$

$

Not available

2

Honda 15510-ZE2-704

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

Note: Use from Engine SN 1053960.

$

$

Not available

3

Honda 15515-ZE3-701

PLATE, OIL LEVEL SWITCH

$

$

Not available

4

Honda 16541-ZE3-010

SHAFT, GOVERNOR ARM

$16.99

$

In Stock, only 1 left!

0

5

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

5

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, Qty 11

0

6

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

In Stock, only 1 left!

0

7

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM)

Note: Use up to Engine SN 1463925.

$3.49

$

In Stock, only 2 left!

0

7

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

Note: Use from Engine SN 1463926.

$1.49

$

In Stock, Qty 20+

0

8

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 9

0

9

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$4.99

$

In Stock, only 1 left!

0

9

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$4.99

$

In Stock, only 1 left!

0

10

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$3.49

$

In Stock, Qty 12

0

11

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

12

Honda 94251-08000

PIN, LOCK (8MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

13

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0

14

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$11.99

$

In Stock, only 1 left!

0
