EW171 K1 A (EB1) - Honda Generator, Made in Japan (SN: EB1-1100001 - EB1-1119999) EW171K1 RECOIL STARTER (1) Parts Diagram

Generator, Made in Japan

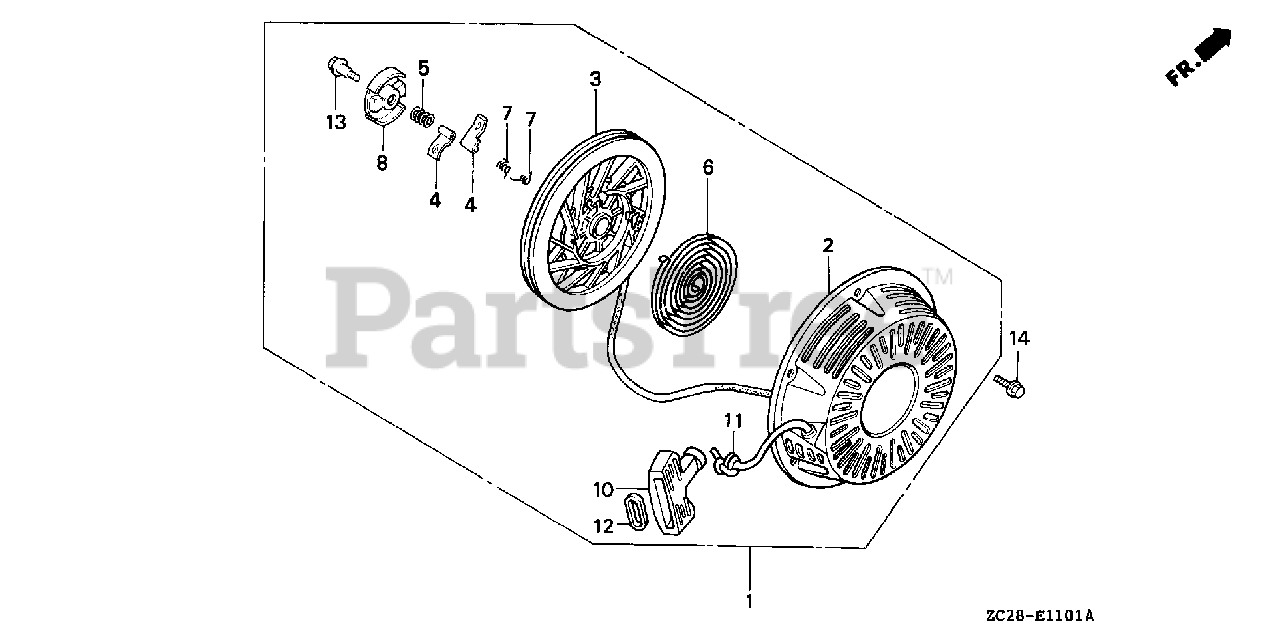

EW171K1 RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZE3-W01ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use from Engine SN 2215399 to 2951711.

$

$

Currently unavailable

1

Honda 28400-ZE3-W01ZF

STARTER ASSY., RECOIL *NH16M* (GUN METALLIC BLACK)

Note: Use up to Engine SN 2215398.

$

$

Not available

2

Honda 28410-ZE3-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

Note: Use from Engine SN 2215399 to 2951711.

$125.99

$

In Stock, only 2 left!

0

2

Honda 28410-ZE3-W01ZC

CASE, RECOIL STARTER *NH16M* (GUN METALLIC BLACK)

Note: Use up to Engine SN 2215398.

$

$

Not available

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

Note: Use up to Engine SN 2951711.

$50.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

Note: Use up to Engine SN 2951711.

$8.49

$

In Stock, Qty 6

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

Note: Use up to Engine SN 2951711.

$6.99

$

In Stock, only 2 left!

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

Note: Use up to Engine SN 2951711.

$20.99

$

In Stock, Qty 5

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

Note: Use up to Engine SN 2951711.

$5.99

$

In Stock, Qty 7

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

Note: Use up to Engine SN 2951711.

$16.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

Note: Use up to Engine SN 2951711.

$8.99

$

In Stock, only 2 left!

0

11

Honda 28462-ZE3-W01

ROPE, RECOIL STARTER (#6X64") (N/A: USE P/N 08560-ZG921-11)

Note: Use up to Engine SN 2951711.

$16.99

$

In Stock, only 2 left!

0

12

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT

Note: Use up to Engine SN 2951711.

$7.49

$

In Stock, only 1 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

Note: Use up to Engine SN 2951711.

$4.99

$

In Stock, Qty 9

0

14

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use up to Engine SN 2951711.

$4.99

$

In Stock, Qty 19

0
