EW171 K1 A (EB1) - Honda Generator, Made in Japan (SN: EB1-1100001 - EB1-1119999) FRAME Parts Diagram

Generator, Made in Japan

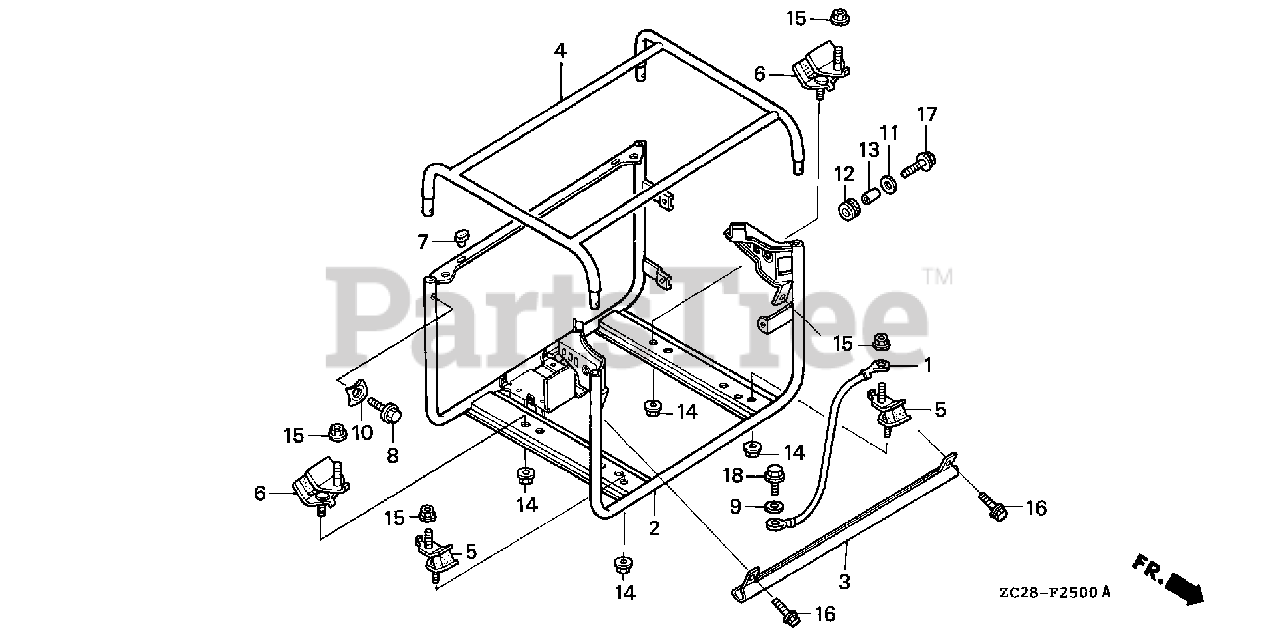

FRAME Parts Diagram

  • Title

1

Honda 32610-899-000

CABLE, GROUND

$16.99

$

Usually ships in 3-6 days

0

2

Honda 50311-ZC2-830ZA

FRAME (LOWER) *NH105* (MAT BLACK)

$

$

Not available

3

Honda 50316-ZC2-800ZA

CHANNEL, FR. *NH105* (MAT BLACK)

$72.99

$

Usually ships in 3-6 days

0

4

Honda 50351-ZC2-800ZA

FRAME (UPPER) *NH105* (MAT BLACK)

$332.99

$

Usually ships in 3-6 days

0

5

Honda 68325-ZC2-000

RUBBER (LOWER)

$46.99

$

Usually ships in 3-6 days

0

6

Honda 68325-899-000

RUBBER (LOWER)

$60.99

$

Usually ships in 3-6 days

0

7

Honda 76122-952-000

STOPPER, DISCHARGE GUARD

$5.49

$

Usually ships in 3-6 days

0

8

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.99

$

In Stock, Qty 20+

0

9

Honda 90432-898-000

WASHER, LOCK (6MM)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90501-898-000

WASHER, FRAME JOINT

$3.49

$

Usually ships in 3-6 days

0

11

Honda 91412-538-000

WASHER, FLAT (20MM)

Note: Use up to Frame SN 1102289.

$

$

Not available

12

Honda 90852-898-000

RUBBER, CONTROL BOX

$5.99

$

In Stock, only 2 left!

0

13

Honda 91552-898-000

COLLAR, CONTROL BOX

$5.99

$

In Stock, only 3 left!

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 16

0

17

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

Note: Use up to Frame SN 1102289.

$2.49

$

In Stock, only 3 left!

0

17

Honda 93404-06020-00

BOLT-WASHER (6X20)

Note: Use from Frame SN 1102290.

$2.49

$

Usually ships in 3-6 days

0

18

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0
