EX 135 WT-C (866052) - Briggs & Stratton Plate Compactor Main Unit (866052) Parts Diagram

Plate Compactor

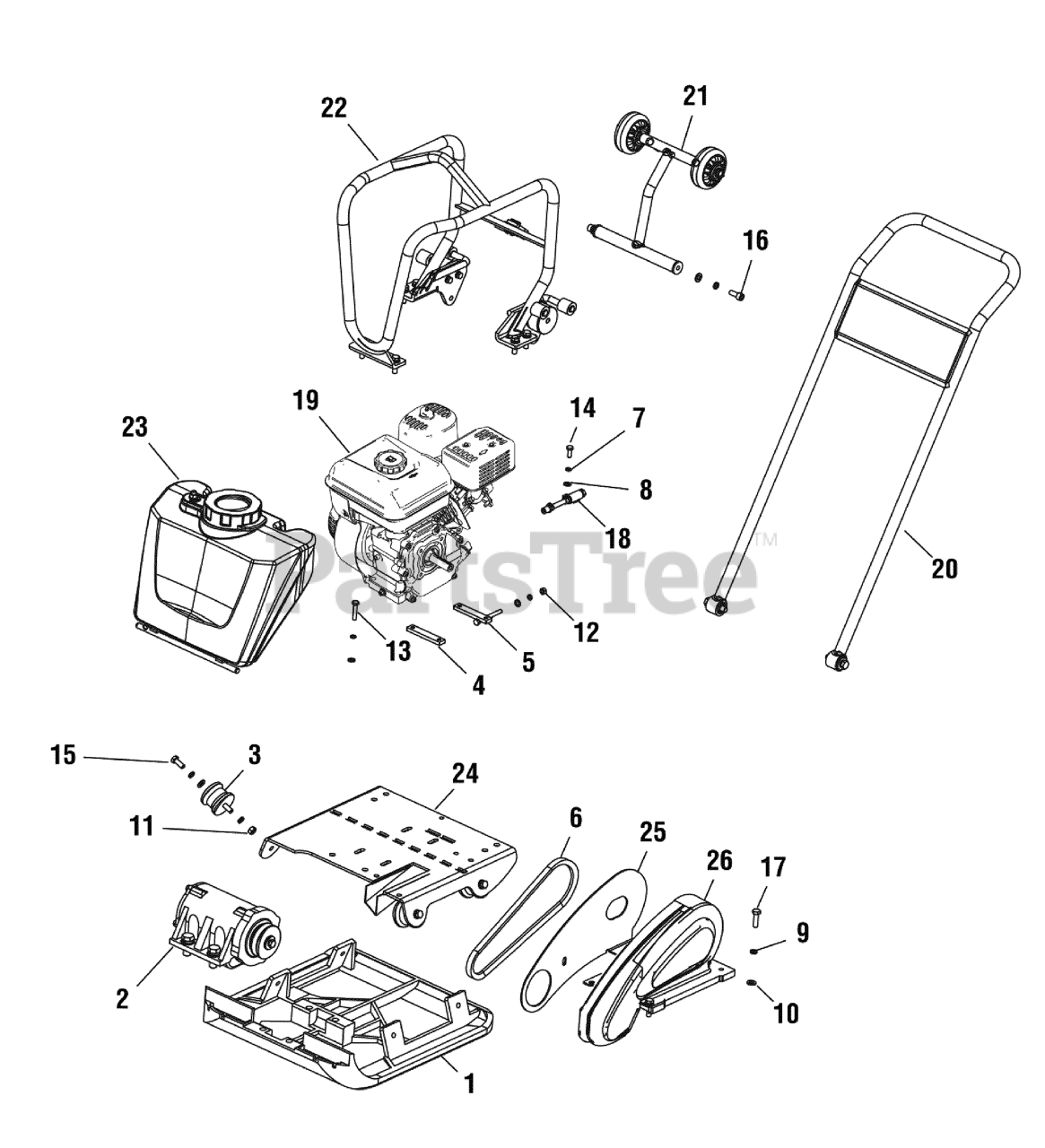

Main Unit (866052) Parts Diagram

  • Title

1

Murray 700530

BASE PLATE

$

$

Currently unavailable

2

Murray 700531

ECCENTRIC BOX

$2.49

$

Usually ships in 3-10 days

0

3

Murray 700532

VIBRATION MOUNT, Rubber

$

$

Currently unavailable

4

Murray 700539

ENGINE NUT CLAMP

$

$

Currently unavailable

5

Murray 700540

ENGINE FIXING PLATE

$

$

Currently unavailable

6

Murray 700546

V-BELT, XPA882

$

$

Currently unavailable

7

Murray 700598

WASHER, Spring, 8

$

$

Currently unavailable

8

Murray 700599

WASHER, Flat, 8

$

$

Currently unavailable

9

Murray 700604

WASHER, Spring, 10

$

$

Currently unavailable

10

Murray 700605

WASHER, Flat, 10

$

$

Currently unavailable

11

Murray 700608

NUT, Hex, M10

$

$

Currently unavailable

12

Murray 700637

NUT, Hex, M8

$

$

Not available

13

Murray 700621

BOLT, Hex, M8 x 40

$

$

Currently unavailable

14

Murray 701541

BOLT, Hex, M8 x 20

$

$

Currently unavailable

15

Murray 702600

BOLT, Hex, M10 x 25

$

$

Currently unavailable

16

Murray 702643

SCREW, Socket Head, M10 x 25

$

$

Currently unavailable

17

Murray 702732

BOLT, Hex, M10 x 35

$

$

Currently unavailable

18

Murray 702758

EXHAUST OIL ASSEMBLY

$

$

Currently unavailable

19

Murray 702975

ENGINE ASSEMBLY

$

$

Currently unavailable

20

Murray 702976

HANDLE ASSEMBLY

$

$

Currently unavailable

21

Murray 702977

ROAD WHEEL FRAME ASSEMBLY

$

$

Currently unavailable

22

Murray 702978

TANK GUARD ASSEMBLY

$

$

Currently unavailable

23

Murray 702979

WATER TANK ASSEMBLY

$

$

Currently unavailable

24

Murray 702981

ENGINE PLATE

$

$

Currently unavailable

25

Murray 702982

COVER, Belt, Inner

$

$

Currently unavailable

26

Murray 702983

COVER, Belt, Outer

$

$

Currently unavailable
