EX 150 WT-C (866053) - Briggs & Stratton Plate Compactor Main Unit (866053) Parts Diagram

Plate Compactor

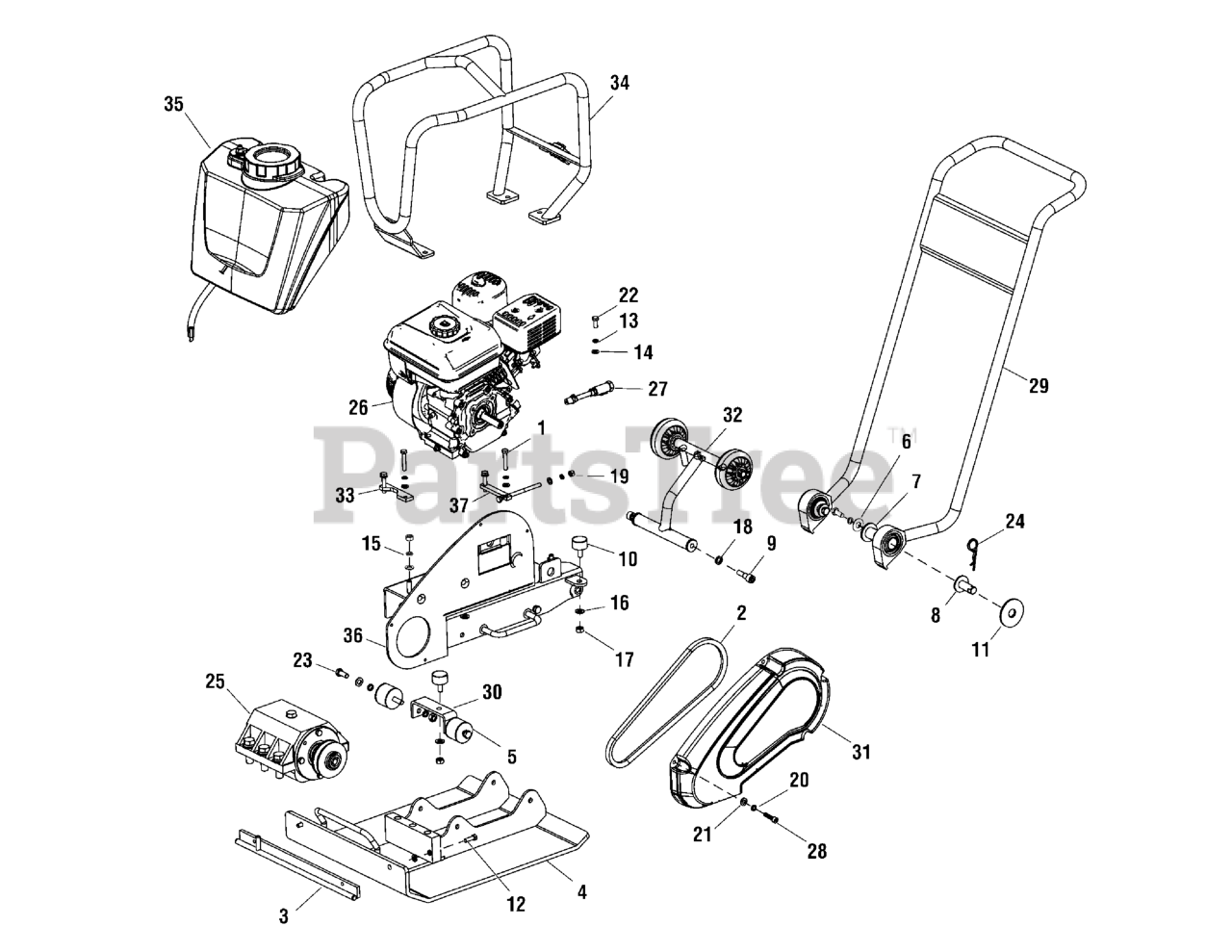

Main Unit (866053) Parts Diagram

  • Title

1

Murray 700472

BOLT, Hex, M8 x 45

$

$

Currently unavailable

2

Murray 700477

V-BELT

$

$

Currently unavailable

3

Murray 700482

WATER HOSE

$

$

Currently unavailable

4

Murray 700486

BASE PLATE

$

$

Currently unavailable

5

Murray 700487

VIBRATION MOUNT, Rubber

$

$

Currently unavailable

6

Murray 700494

WASHER

$

$

Currently unavailable

7

Murray 700495

BUSHING, Nylon

$

$

Currently unavailable

8

Murray 700496

SHAFT

$

$

Currently unavailable

9

Murray 700497

BOLT, Locking, Wheel Frame

$

$

Currently unavailable

10

Murray 700499

HANDLE VIBRATION, Rubber

$

$

Currently unavailable

11

Murray 700529

WASHER

$

$

Currently unavailable

12

Murray 700597

BOLT, Hex, M8 x 25

$

$

Not available

13

Murray 700598

WASHER, Spring

$

$

Currently unavailable

14

Murray 700599

WASHER, Flat

$

$

Currently unavailable

15

Murray 700604

WASHER, Spring

$

$

Currently unavailable

16

Murray 700605

WASHER, Flat

$

$

Currently unavailable

17

Murray 700608

NUT, Hex, M8

$

$

Currently unavailable

18

Murray 700623

WASHER, Spring

$

$

Currently unavailable

19

Murray 700637

NUT, Hex, M8

$

$

Not available

20

Murray 700666

WASHER, Spring

$

$

Currently unavailable

21

Murray 700667

WASHER, Flat

$

$

Currently unavailable

22

Murray 701541

BOLT, Hex,

$

$

Currently unavailable

23

Murray 702600

BOLT, Hex,

$

$

Currently unavailable

24

Murray 702751

RETAINER RING

$

$

Currently unavailable

25

Murray 702756

ECCENTRIC BOX ASSEMBLY

$

$

Not available

26

Murray 702757

ENGINE ASSEMBLY

$129.99

$

Usually ships in 3-10 days

0

27

Murray 702758

EXHAUST OIL ASSEMBLY

$

$

Currently unavailable

28

Murray 702759

SCREW, Socket Head

$

$

Currently unavailable

29

Murray 702760

HANDLE ASSEMBLY

$

$

Currently unavailable

30

Murray 702765

BRACKET

$

$

Currently unavailable

31

Murray 702767

BELT COVER

$

$

Currently unavailable

32

Murray 702769

ROAD WHEEL FRAME ASSEMBLY

$

$

Currently unavailable

33

Murray 702770

ENGINE FIXING PLATE

$

$

Currently unavailable

34

Murray 702771

TANK GUARD ASSEMBLY

$

$

Currently unavailable

35

Murray 702772

WATER TANK ASSEMBLY

$

$

Currently unavailable

36

Murray 702773

ENGINE PLATE

$

$

Not available

37

Murray 702774

ENGINE ADJUSTING PLATE

$2.49

$

Usually ships in 3-10 days

0
