EX 20-S (866057) - Briggs & Stratton Concrete Floor Walk-Behind Saw Water Tank Frame Assembly (80003285) Parts Diagram

Concrete Floor Walk-Behind Saw

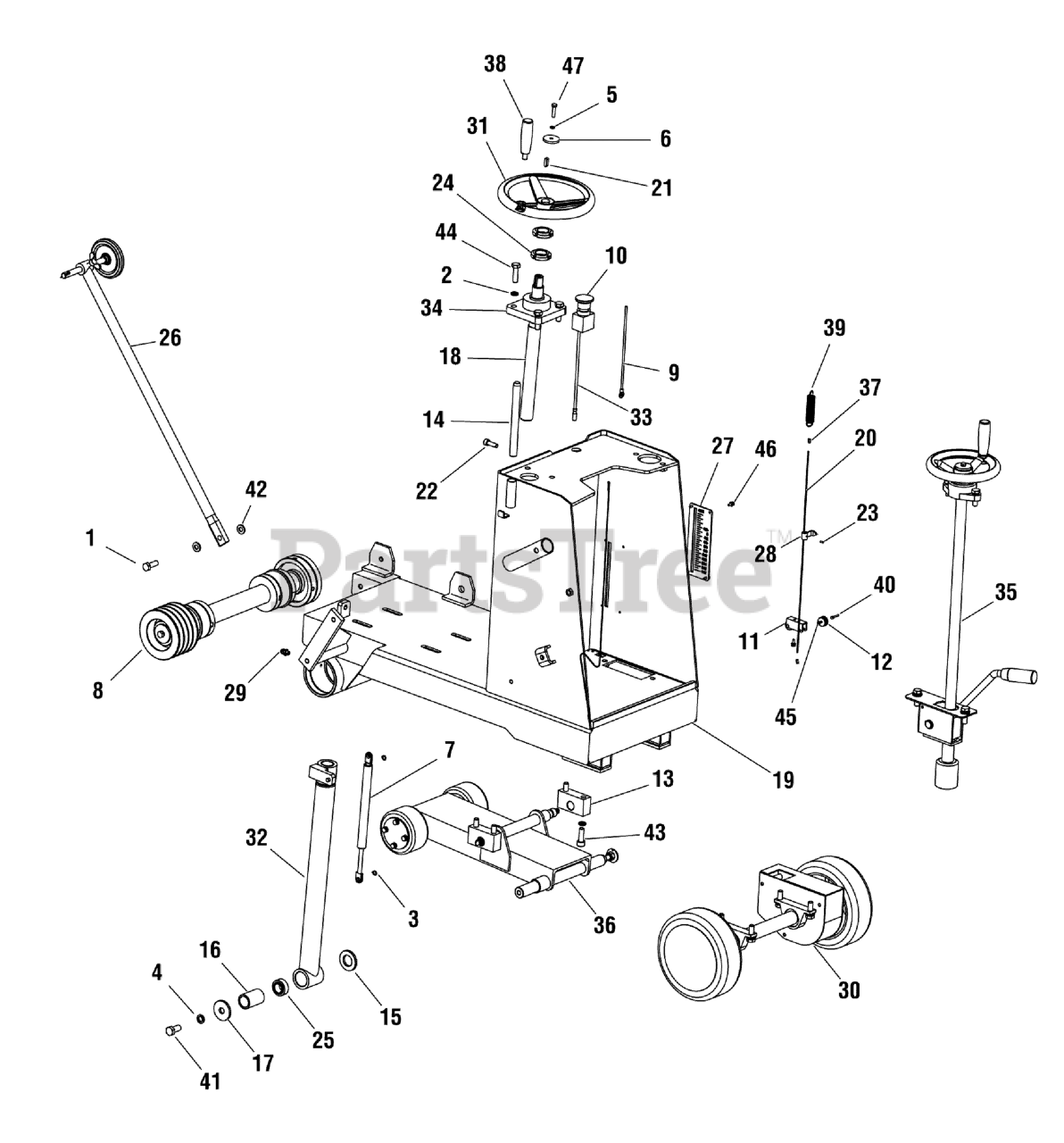

Water Tank Frame Assembly (80003285) Parts Diagram

  • Title

1

Murray 700603

BOLT, Hex, M10 x 30

$

$

Currently unavailable

2

Murray 700604

WASHER, Spring

$

$

Currently unavailable

3

Murray 700618

CIRCLIP

$

$

Not available

4

Murray 700623

WASHER, Spring

$

$

Currently unavailable

5

Murray 700666

WASHER, Spring

$

$

Currently unavailable

6

Murray 702531

WASHER, Flat

$2.49

$

Usually ships in 3-10 days

0

7

Murray 702622

SPRING, Gas

$

$

Currently unavailable

8

Murray 702623

BLADE SHAFT ASSEMBLY

$

$

Currently unavailable

9

Murray 702624

GROUND WIRE

$

$

Not available

10

Murray 702626

EMERGENCY BUTTON

$

$

Currently unavailable

11

Murray 702627

FIXING RACK, Guide Pulley

$

$

Currently unavailable

12

Murray 702628

GUIDE PULLEY

$

$

Currently unavailable

13

Murray 702629

WHEEL MOUNTING SEAT

$

$

Currently unavailable

14

Murray 702633

LIMIT ROD

$

$

Currently unavailable

15

Murray 702634

WASHER, Flat

$

$

Currently unavailable

16

Murray 702635

BUSHING

$

$

Currently unavailable

17

Murray 702636

WASHER, Flat

$

$

Currently unavailable

18

Murray 702637

THREAD

$

$

Not available

19

Murray 702638

PLATE, Engine

$

$

Currently unavailable

20

Murray 702639

WIRE ROPE

$

$

Currently unavailable

21

Murray 702642

KEY

$

$

Currently unavailable

22

Murray 702644

SCREW, Socket Head, M8 x 25

$

$

Currently unavailable

23

Murray 702645

SCREW, Flat Point, M3 x 8

$

$

Currently unavailable

24

Murray 702646

NUT, Round

$

$

Currently unavailable

25

Murray 702648

BEARING

$4.49

$

Usually ships in 3-10 days

0

26

Murray 702649

GUIDE ROD ASSEMBLY

$

$

Currently unavailable

27

Murray 702630

DEPTH CARD

$

$

Currently unavailable

28

Murray 702650

DEPTH POINTER

$

$

Not available

29

Murray 702651

NOZZLE, Grease

$

$

Currently unavailable

30

Murray 702653

REAR WHEEL ASSEMBLY

$

$

Currently unavailable

31

Murray 702654

HANDLE, Wheel, Nylon

$

$

Currently unavailable

32

Murray 702655

THREAD

$

$

Currently unavailable

33

Murray 702656

PARKING LINE

$

$

Currently unavailable

34

Murray 702657

BEARING

$

$

Currently unavailable

35

Murray 702658

SEMI-AUTO ASSEMBLY

$

$

Currently unavailable

36

Murray 702659

WHEEL FRAME ASSEMBLY

$

$

Currently unavailable

37

Murray 702660

WIRE CLAMP

$2.49

$

Usually ships in 3-10 days

0

38

Murray 702672

HANDLE

$

$

Not available

39

Murray 702714

SPRING

$

$

Currently unavailable

40

Murray 702719

BOLT, Hex, M3 x 20

$

$

Currently unavailable

41

Murray 702720

BOLT, Hex, M12 x 25

$

$

Currently unavailable

42

Murray 702721

SPRING, Belleville, A20

$

$

Currently unavailable

43

Murray 702723

SCREW, Socket Head, M10 x 30

$

$

Currently unavailable

44

Murray 702732

BOLT, Hex, M10 x 35

$

$

Currently unavailable

45

Murray 702748

NUT, Hex Head, Prevailing Torque, M3

$

$

Currently unavailable

46

Murray 702750

SCREW, Pan Head, Slotted, M4 x 12

$17.99

$

Usually ships in 3-10 days

0

47

Murray 702992

BOLT, Hex, M6 x 25

$204.99

$

Usually ships in 2-12 days

0
