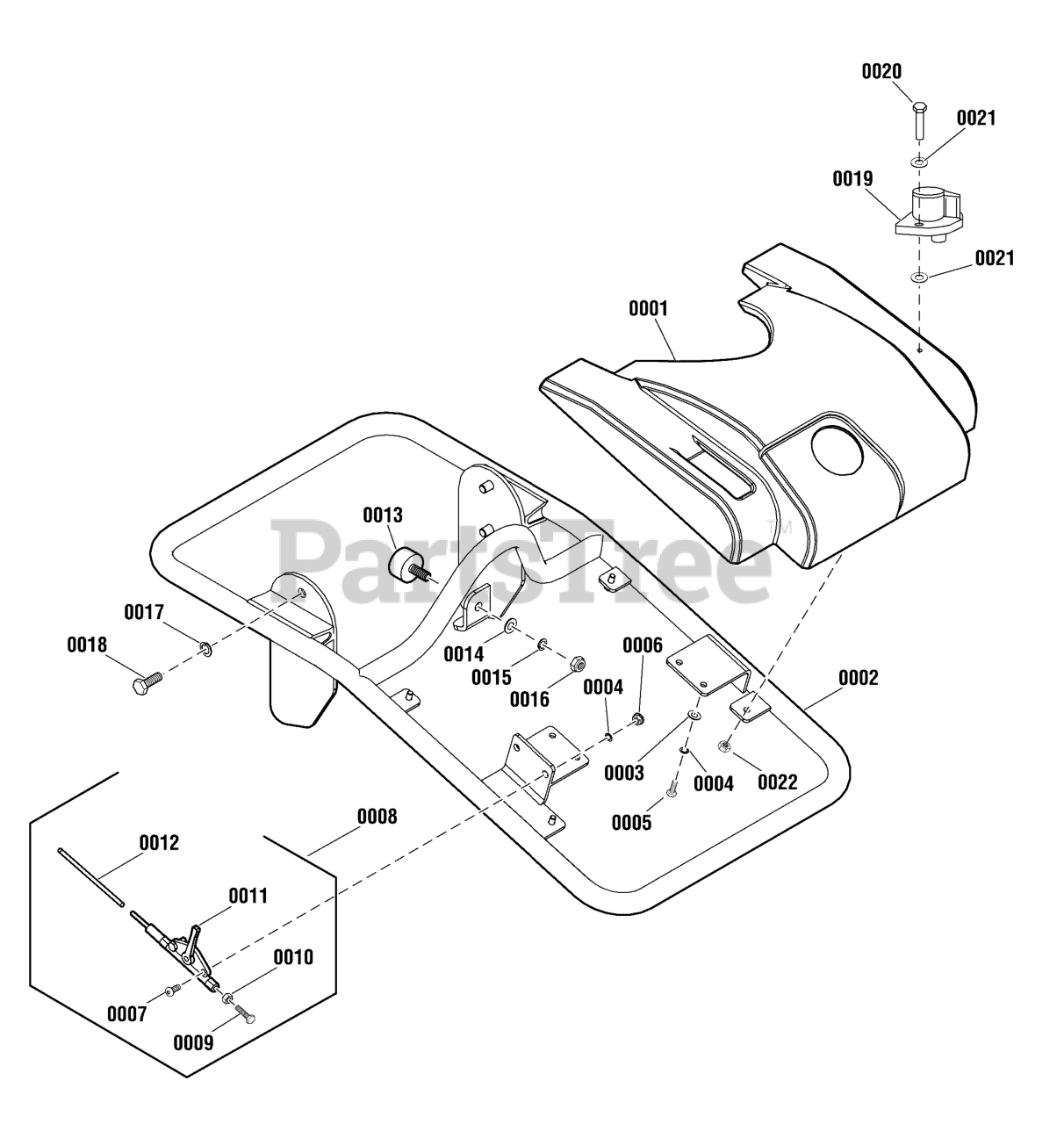

EX 75-R (866070) - Briggs & Stratton Rammer Handle Group (80003809) Parts Diagram

Rammer

Handle Group (80003809) Parts Diagram

  • Title

0001

Murray 702823

REAR COVER

$

$

Currently unavailable

0002

Murray 702813

HANDLE ASSEMBLY

$

$

Not available

0003

Murray 700667

WASHER, Flat, 6

$

$

Currently unavailable

0004

Murray 700604

WASHER, Spring, 6

$

$

Currently unavailable

0005

Murray 702710

BOLT, Hex, M6 x 16

$

$

Not available

0006

Murray 703244

NUT, Lock, M6

$

$

Currently unavailable

0007

Murray 702715

BOLT, Hex Socket Countersunk Head, M6 x 16

$

$

Currently unavailable

0008

Murray 702833

THROTTLE SWITCH ASSEMBLY

Note: (Includes Ref. Nos. 0007, 0009, 0010, 0011 & 0012)

$

$

Currently unavailable

0009

Murray 702931

BOLT, Hex, M6 x 20

$

$

Currently unavailable

0010

Murray 701125

NUT, M6

$

$

Currently unavailable

0011

Murray 703245

BODY, Throttle Switch

$

$

Currently unavailable

0012

Murray 703246

CABLE, Throttle Switch

$

$

Currently unavailable

0013

Murray 700487

VIBRATION MOUNT, Rubber

$

$

Currently unavailable

0014

Murray 700599

WASHER, Flat, 8

$

$

Currently unavailable

0015

Murray 700598

WASHER, Spring, 8

$

$

Currently unavailable

0016

Murray 700506

NUT, Lock, M8

$

$

Currently unavailable

0017

Murray 700604

WASHER, Spring, 10

$

$

Currently unavailable

0018

Murray 703247

BOLT, Hex Socket Countersunk Head, M10 x 20

$

$

Currently unavailable

0019

Murray 703455

EMERGENCY BUTTON

$

$

Currently unavailable

0020

Murray 703811

SCREW, Slotted Pan Head, M4 x 16

$

$

Currently unavailable

0021

Murray 703010

WASHER, Flat, 4
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0022

Murray 703808

NUT, Torque Head, M4

$

$

Currently unavailable
