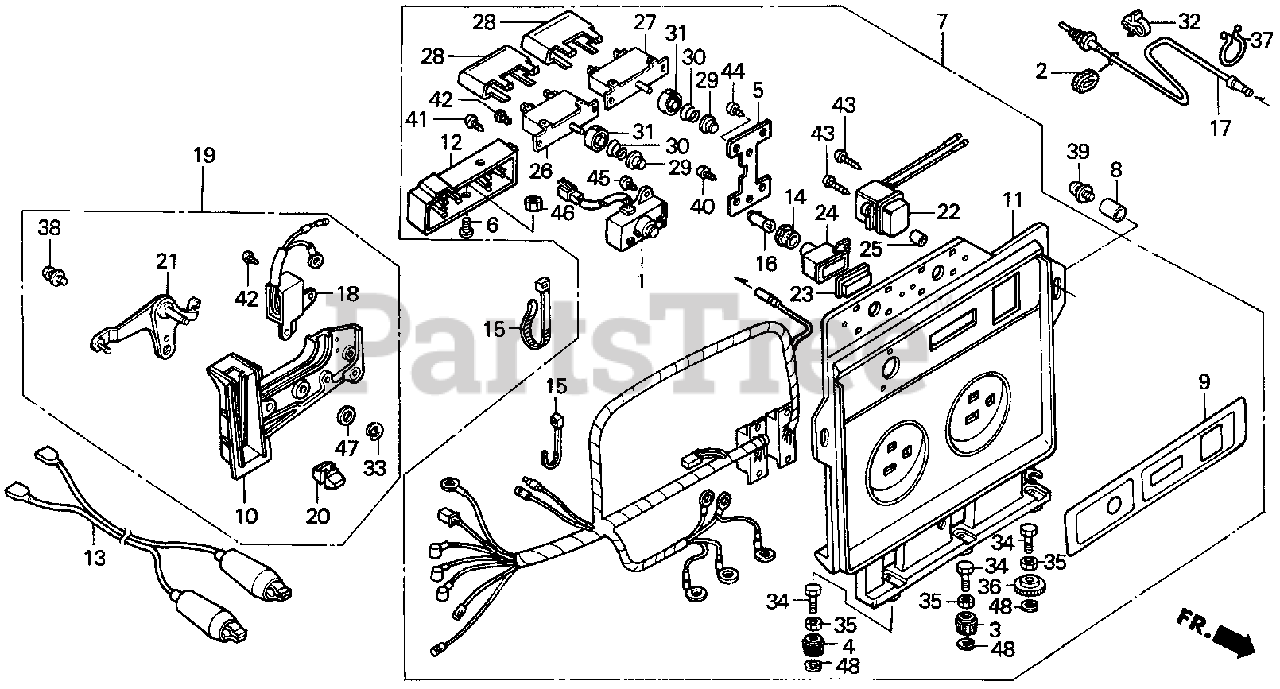

EX1000 A (EA4) - Honda Generator, Made in Japan (SN: EA4-1000001 - EA4-1236195) CONTROL PANEL Parts Diagram

Generator, Made in Japan

CONTROL PANEL Parts Diagram

  • Title

1

Honda 15520-ZC0-003

ALERT UNIT, OIL

Note: Use up to Frame SN 1157373.

$

$

Not available

3

Honda 31468-ZC0-003

CLAMP, TERMINAL (B)

$

$

Not available

4

Honda 31469-ZC0-003

CLAMP, TERMINAL (A)

$

$

Not available

5

Honda 32301-ZC0-003

HOLDER, CONNECTOR

$

$

Not available

6

Honda 32339-ZC0-003

SCREW, ELECTRIC (4X6)

$

$

Not available

7

Honda 32340-ZC0-631

PANEL ASSY., CONTROL

Note: Use up to Frame SN 1026243.

$

$

Currently unavailable

7

Honda 32340-ZC0-632

PANEL ASSY., CONTROL

Note: Use from Frame SN 1026244 to 1157373.

$

$

Not available

7

Honda 32340-ZC0-633

PANEL ASSY., CONTROL

Note: Use from Frame SN 1157374 to 1202223.

$

$

Currently unavailable

7

Honda 32340-ZC0-634

PANEL ASSY., CONTROL

Note: Use from Frame SN 1202224.

$

$

Not available

8

Honda 32344-892-000

COLLAR, PANEL

$

$

Not available

9

Honda 32345-ZC0-650

MARK, PANEL

Note: Use up to Frame SN 1157373.

$

$

Not available

9

Honda 32345-ZC0-652

MARK, PANEL

Note: Use from Frame SN 1157374 to 1202223.

$

$

Currently unavailable

9

Honda 32345-ZC0-653

MARK, PANEL (E)

Note: Use from Frame SN 1202224.

$

$

Not available

10

Honda 32375-ZA7-000

BRACKET, ENGINE SWITCH

$

$

Not available

11

Honda 32410-ZC0-631

SEE PART DETAILS - PRI; PLATE, BASE

Note: Use up to Frame SN 1157373.

$

$

Not available

11

Honda 32410-ZC0-632

PLATE, BASE

Note: Use from Frame SN 1157374.

$

$

Not available

12

Honda 32421-ZA7-003

CASE

$

$

Not available

13

Honda 32650-825-005

SEE PART DETAILS - SUP; WIRE ASSY., CHARGE
(Superseded to 32650-825-015)

$19.99

$

In Stock, only 1 left!

0

14

Honda 32901-892-003

GROMMET

Note: Use up to Frame SN 1202223.

$

$

Not available

15

Honda 32902-892-003

BAND

Note: Use up to Frame SN 1157373.

$4.49

$

Usually ships in 3-6 days

0

15

Honda 32902-892-003

BAND

Note: Use from Frame SN 1157374.

$4.49

$

Usually ships in 3-6 days

0

16

Honda 34902-202-000

BULB, DASH (6V 3W)

Note: Use up to Frame SN 1202223.

$3.99

$

In Stock, Qty 17

0

18

Honda 36100-ZA7-000

SWITCH ASSY., STOP

$

$

Not available

19

Honda 36110-ZA7-000

BRACKET ASSY., ENGINE SWITCH

$

$

Not available

20

Honda 36112-ZA7-000

KNOB, ENGINE SWITCH

$12.99

$

Usually ships in 3-6 days

0

21

Honda 36115-ZA7-000

LEVER, PETCOCK

$

$

Not available

22

Honda 37500-ZA7-003

METER, FREQUENCY

$

$

Not available

23

Honda 37901-ZA7-013

LENS, LAMP

Note: Use up to Frame SN 1202223.

$

$

Not available

24

Honda 37902-ZA7-013

CASE, LAMP

Note: Use up to Frame SN 1202223.

$10.99

$

Usually ships in 3-6 days

0

25

Honda 37903-ZC0-701

COLLAR

Note: Use from Frame SN 1202224.

$

$

Not available

26

Honda 38240-ZA7-000

PROTECTOR, D.C. CIRCUIT (12A)

$

$

Not available

27

Honda 38241-ZC0-630

PROTECTOR, CIRCUIT (8A)

$

$

Not available

28

Honda 38243-ZC0-003

COVER, CIRCUIT PROTECTOR

$5.99

$

Usually ships in 3-6 days

0

29

Honda 38251-892-003

CAP, BREAKER

$

$

Not available

30

Honda 38253-ZA8-631

SPRING, RETURN

$

$

Not available

31

Honda 38254-ZA7-003

HOLDER, BREAKER

$

$

Not available

33

Honda 54114-609-000

CLIP, LOCK PIN

$

$

Currently unavailable

34

Honda 90001-ZC0-003

BOLT, TERMINAL (6X25)

$3.99

$

Usually ships in 3-6 days

0

35

Honda 90201-ZC0-003

NUT, CLAMP (6MM)

$

$

Not available

36

Honda 90381-812-710

NUT, SPECIAL (6MM)

$2.49

$

In Stock, only 1 left!

0

38

Honda 93891-05016-08

SCREW-WASHER (5X16)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 93894-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 93901-24220

SCREW, TAPPING (4X10)

Note: Use up to Frame SN 1205502.

$3.99

$

Usually ships in 3-6 days

0

40

Honda 93901-34220

SCREW, TAPPING (4X10)

Note: Use from Frame SN 1205503.

$1.49

$

Usually ships in 3-6 days

0

41

Honda 93901-24520

SCREW, TAPPING (4X20)

Note: Use up to Frame SN 1205502.

$1.49

$

Usually ships in 3-6 days

0

41

Honda 93901-34520

SCREW, TAPPING (4X20)

Note: Use from Frame SN 1205503.

$1.49

$

Usually ships in 3-6 days

0

42

Honda 93901-32120

SCREW, TAPPING (3X8)

$0.99

$

Usually ships in 3-6 days

0

43

Honda 93901-32420

SCREW, TAPPING (3X16)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 93903-32120

SCREW, TAPPING (3X8)

$

$

Not available

45

Honda 93903-34420

SCREW, TAPPING (4X16)

Note: Use up to Frame SN 1157373.

$0.99

$

Usually ships in 3-6 days

0

46

Honda 94001-04390-0S

NUT, HEX. (4MM)

$0.99

$

Usually ships in 3-6 days

0

47

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM)

$

$

Currently unavailable

47

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

48

Honda 94540-03010

E-RING (3MM)

$1.49

$

In Stock, only 3 left!

0
