EX1000 A2 (EA4) - Honda Generator, Made in Japan (SN: EA4-1236196 - EA4-9999999) CARBURETOR Parts Diagram

Generator, Made in Japan

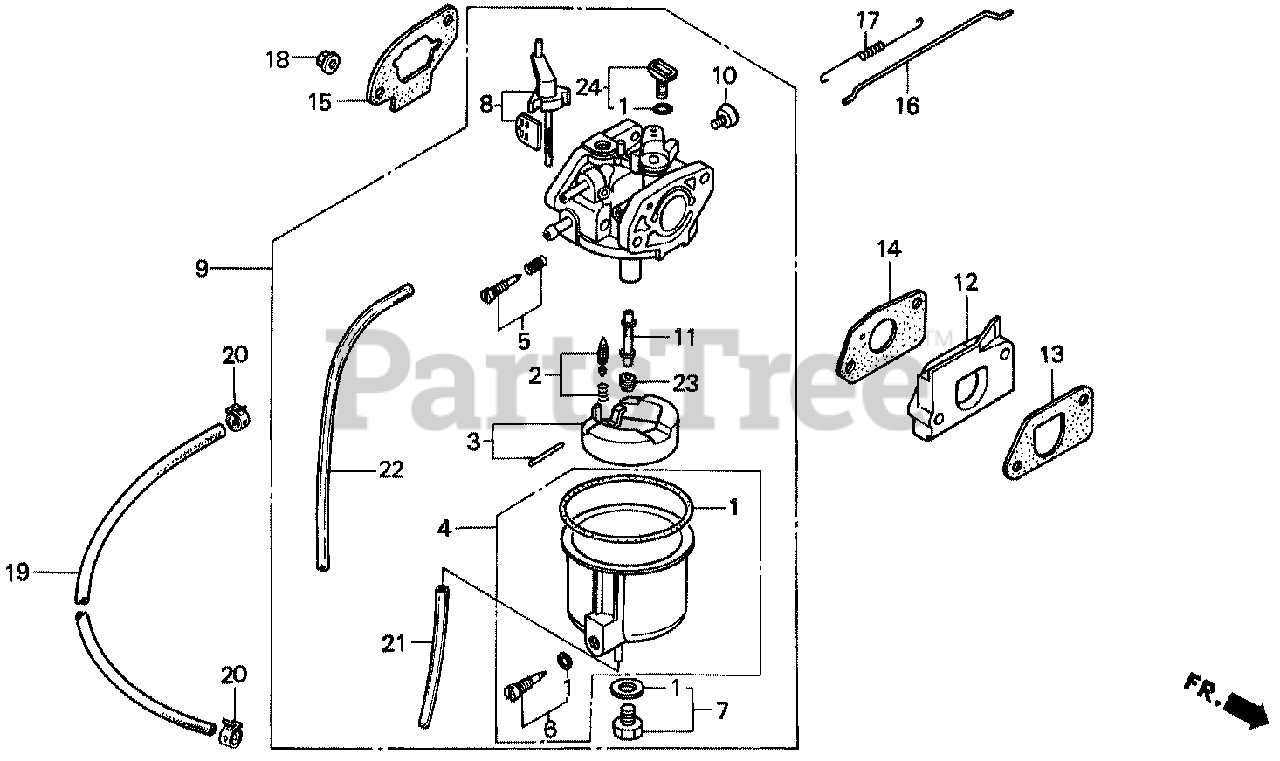

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZC0-005

GASKET SET

$27.99

$

In Stock, only 2 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$33.99

$

In Stock, Qty 8

0

3

Honda 16013-ZG0-811

FLOAT SET
(Superseded to 16013-ZDJ-801)

$6.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZC0-005

CHAMBER SET, FLOAT

$

$

Not available

5

Honda 16016-ZG0-W00

SCREW SET

$14.99

$

In Stock, only 2 left!

0

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$16.99

$

In Stock, only 2 left!

0

7

Honda 16028-ZC0-005

SCREW SET

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZC0-D31

CHOKE SET

$

$

Not available

9

Honda 16100-ZC0-D32

CARBURETOR ASSY. (BF03E A)

$

$

Not available

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$20.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZC0-005

NOZZLE, MAIN

$36.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZC0-000

SEE PART DETAILS - SUP; INSULATOR, CARBURETOR
(Superseded to 16211-ZC0-010)

$16.99

$

In Stock, only 1 left!

0

12

Honda 16211-ZC0-010

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$16.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZG0-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 6

0

14

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.49

$

In Stock, Qty 20+

0

15

Honda 16269-ZG0-800

GASKET, AIR CLEANER

$2.99

$

In Stock, Qty 9

0

16

Honda 16555-ZG0-000

ROD, GOVERNOR

$

$

Not available

17

Honda 16562-ZA7-000

SPRING, THROTTLE RETURN

$3.49

$

Usually ships in 3-6 days

0

18

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

19

Honda 95001-45003-20M

SEE PART DETAILS - SUP; BULK HOSE, FUEL (4.5X3000) (4.5X470)
(Superseded to 95001-45003-50M)

$91.99

$

In Stock, only 1 left!

0

20

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.99

$

In Stock, only 2 left!

0

21

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X160)

$32.99

$

In Stock, only 2 left!

0

22

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X250)

$32.99

$

In Stock, only 2 left!

0

23

Honda 99101-ZG0-0520

SEE PART DETAILS - PRI; JET, MAIN (#52)

$12.99

$

In Stock, only 1 left!

0

23

Honda 99101-ZG0-0550

SEE PART DETAILS - PRI; JET, MAIN (#55)

$12.99

$

In Stock, only 3 left!

0

23

Honda 99101-ZG0-0580

JET, MAIN (#58)

$9.99

$

In Stock, only 3 left!

0

24

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$26.99

$

In Stock, only 3 left!

0
