EX130D50033 (EX13) - Subaru Robin Engine 400 Governor Parts Diagram

Engine

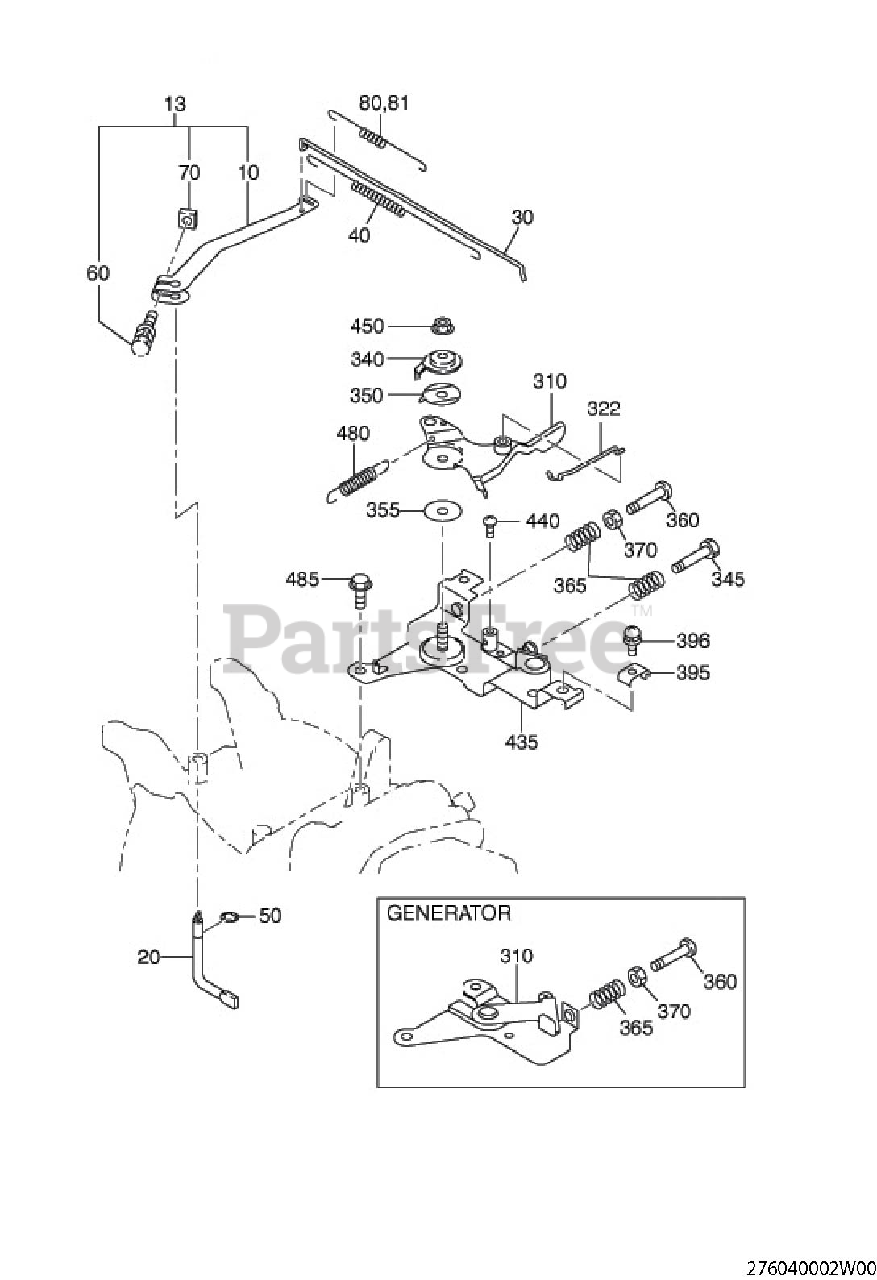

400 Governor Parts Diagram

  • Title

10

Subaru Robin 277-42301-40

GOVERNOR LEVER

$37.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 277-42201-33

GOVERNOR SHAFT

$

$

Not available

30

Subaru Robin 279-42701-11

GOVERNOR ROD CP

Note: INTERCHANGEABLE W/279-42701-23

$7.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 277-42801-23

ROD SPRING

Note: 7DX0.5DX182L N=16

$

$

Not available

50

Subaru Robin 003-13050-00

CLIP

$0.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 013-00602-40

BOLT AND WASHER AY

Note: M6X1.0X25L W/TWO W

$1.49

$

In Stock, only 3 left!

0

70

Subaru Robin 018-60600-20

NUT

Note: M6X1.0X4.9H SQUARE

$0.99

$

In Stock, Qty 5

0

80

Subaru Robin 277-42510-13

GOVERNOR SPRING

Note: 7.5DX0.7DX115L N=16 INTERCHANGEABLE W/277-42510-23

$9.49

$

In Stock, Qty 16

0

310

Subaru Robin 277-43303-01

SPEED CONT. LEVER CP

Note: W/SWIVEL

$

$

Not available

322

Subaru Robin 277-43701-01

LINK ROD CP

$3.49

$

Usually ships in 2-12 days

0

340

Subaru Robin 277-43502-03

STOP PLATE

$

$

Not available

350

Subaru Robin 277-44501-03

WASHER

Note: T=0.4

$2.99

$

In Stock, Qty 5

0

355

Subaru Robin 021-70600-70

FRICTION WASHER

Note: 6.5DX24DX0.8T NYLON

$1.99

$

In Stock, Qty 10

0

360

Subaru Robin 004-31062-50

SCREW

Note: M6X1.0X25L

$1.49

$

In Stock, Qty 9

0

365

Subaru Robin 237-45004-23

SPRING (ADJUST)

Note: 6.9DX0.9DX20L N=7

$1.99

$

Usually ships in 2-12 days

0

395

Subaru Robin 277-43902-03

CLAMP

$9.99

$

In Stock, Qty 12

0

396

Subaru Robin 013-10500-30

SCREW AND WASHER AY

Note: M5X0.8X20L W/W,SW

$1.49

$

In Stock, only 3 left!

0

435

Subaru Robin 277-46002-01

SPEED CONT.BRKT CP

$28.99

$

In Stock, only 1 left!

0

440

Subaru Robin 004-31040-80

SCREW

Note: M4X0.7X8L

$0.99

$

In Stock, only 3 left!

0

450

Subaru Robin 002-35060-00

SELF LOCK NUT

Note: M6X1.0X6.8H

$3.99

$

In Stock, Qty 5

0

480

Subaru Robin 277-45103-03

RETURN SPRING

Note: 7DX0.7DX28L N=15

$

$

Not available

485

Subaru Robin 011-00600-20

FLANGE BOLT

Note: M6X1.0X14DX12L

$4.49

$

In Stock, only 3 left!

0
