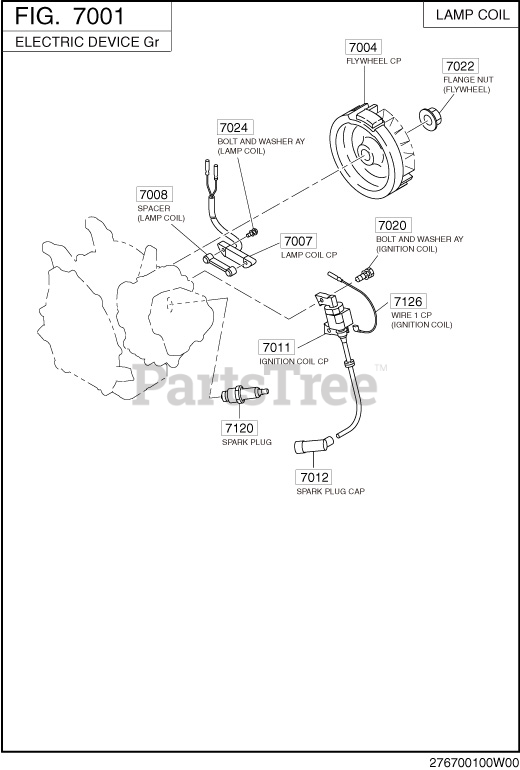

EX130D70210 (EX13) - Subaru Robin Engine 700 Electric Device Parts Diagram

Engine

700 Electric Device Parts Diagram

  • Title

7004

Subaru Robin 276-79241-01

FLYWHEEL CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 15W,40W LAMP.

$573.99

$

Usually ships in 2-12 days

0

7007

Subaru Robin 277-79302-01

LAMP COIL CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 12V-40W.

$127.99

$

Usually ships in 2-12 days

0

7008

Subaru Robin 277-79501-03

SPACER

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: LAMP .

$27.99

$

Usually ships in 2-12 days

0

7011

Subaru Robin 277-79431-11

IGNITION COIL CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: ID NO.BM3790 .

$368.99

$

In Stock, only 2 left!

0

7012

Subaru Robin 065-50002-70

SPARK PLUG CAP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$8.99

$

Usually ships in 2-12 days

0

7020

Subaru Robin 001-14062-50

BOLT AND WASHER AY

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$1.49

$

In Stock, only 4 left!

0

7022

Subaru Robin 018-01400-20

FLANGE NUT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$5.49

$

Usually ships in 2-12 days

0

7024

Subaru Robin 001-13064-00

BOLT AND WASHER AY

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: LAMP COIL.

$0.99

$

Usually ships in 2-12 days

0

7120

Subaru Robin 065-01407-50

SPARK PLUG

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 14DX12.7B BPR-2HS.

$

$

Not available

7126

Subaru Robin 277-73101-H1

WIRE 1 CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$8.49

$

Usually ships in 2-12 days

0
