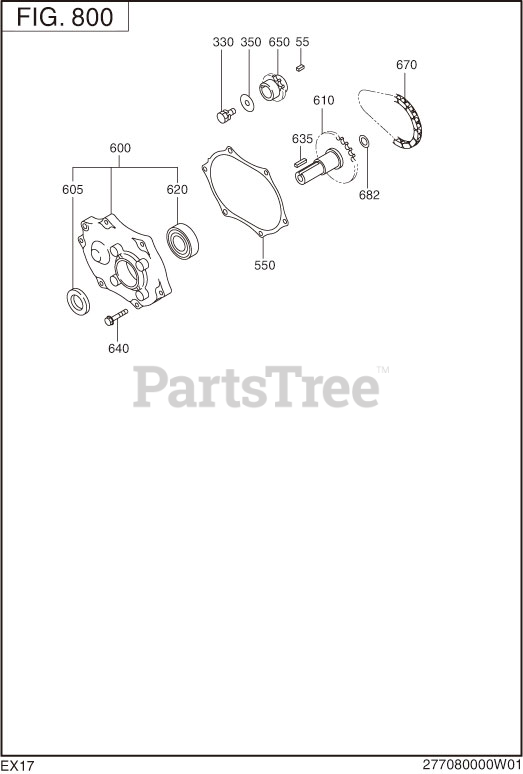

EX170DR7030 (EX17) - Subaru Robin Engine 800 Reduction Parts Diagram

Engine

800 Reduction Parts Diagram

  • Title

$5.89

$

Usually ships in 2-12 days

0

330

Subaru Robin 001-04082-00

FLANGE BOLT

Note: Start Code: 6545.

$0.99

$

Usually ships in 2-12 days

0

330

Subaru Robin 001-13082-00

BOLT & WASHER AY

Note: End Code: 6544.

$1.49

$

Usually ships in 2-12 days

0

350

020-00802-00

WASHER

$

$

Not available

550

Subaru Robin 277-86001-03

GASKET(REDUC.COVER)

$4.49

$

Usually ships in 2-12 days

0

600

Subaru Robin 277-80601-01

REDUCTION COVER CP

$63.98

$

Usually ships in 2-12 days

0

605

Subaru Robin 044-02502-10

OIL SEAL

Note: Remarks: 25DX41.25DX6B.

$15.99

$

Usually ships in 2-12 days

0

610

277-81101-03

DRIVING SHAFT

$

$

Not available

620

$33.99

$

Usually ships in 2-12 days

0

635

Subaru Robin 005-30053-01

KEY

Note: Interchangable with 032-00500-10.

$5.49

$

Usually ships in 2-12 days

0

640

$0.99

$

Usually ships in 2-12 days

0

650

277-82401-03

DRIVING SPROCKET

$

$

Not available

670

277-85001-01

REDUCTION CHAIN CP

$

$

Not available

682

Subaru Robin 023-02200-50

SPACER

Note: Remarks: 22.2DX32.5DX0.6T.

$3.49

$

Usually ships in 2-12 days

0
