EX20KC - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 130000 - 149999) (1997) Engine Controls - Pg. 47 Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

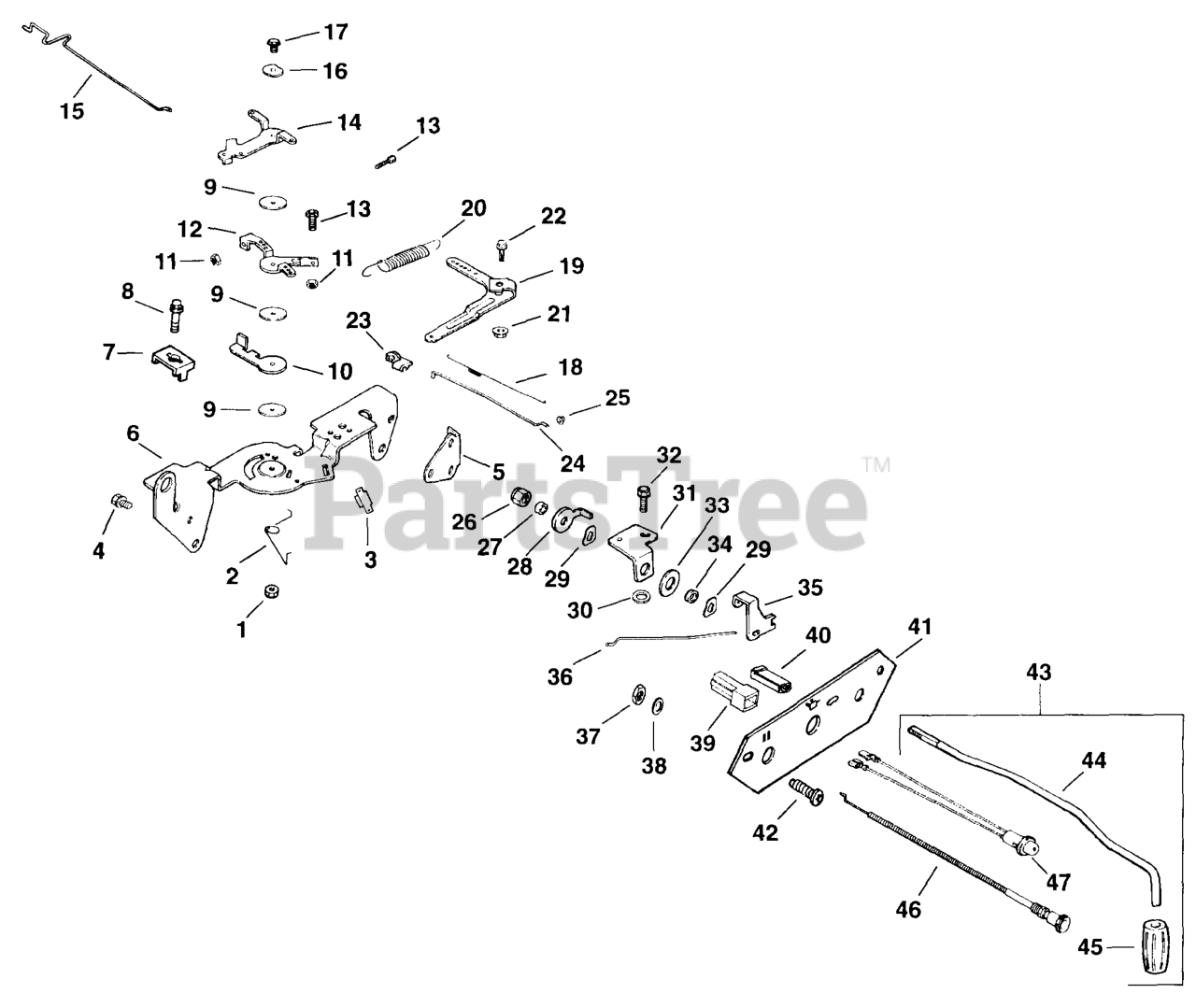

Engine Controls - Pg. 47 Parts Diagram

  • Title
1

Exmark M-0547050

Nut, Hex. Flange M5x0.8

$

$

Currently unavailable

2

Exmark 2408903-S

Spring, Choke Return

$

$

Currently unavailable

4

Exmark M-0645016

Screw, Hex. Flange M6x1.0x16

$

$

Currently unavailable

6

Exmark 2412613

Bracket, Control

$

$

Currently unavailable

7

Exmark 1223701-S

Clamp, Cable

$

$

Currently unavailable

8

Exmark SM-0545016

Screw, Hex. Flange M5x0.8x16

$

$

Currently unavailable

9

Exmark 2446801-S

Washer, Plain 5 Mm

$

$

Currently unavailable

10

Exmark 2409007-S

Lever, Throttle Actuator

$

$

Currently unavailable

11

Exmark M-0446030

Nut, Hex. Flange M4x0.7

$

$

Currently unavailable

12

Exmark 2409003-S

Lever, Throttle Control

$

$

Currently unavailable

13

Exmark M-0401030

Screw, Hex. Cap M4x0.7x30

$

$

Currently unavailable

14

Exmark 2409005-S

Lever, Choke

$

$

Currently unavailable

15

Exmark 2407902-S

Linkage, Choke

$

$

Currently unavailable

16

Exmark 4146803-S

Washer, Wave

$

$

Currently unavailable

17

Exmark SM-0545020

Screw, Hex. Flange M5x0.8x20

$

$

Currently unavailable

18

Exmark 2408901-S

Spring, Linkage

$

$

Currently unavailable

19

Exmark 2409014-S

Lever, Governor

$

$

Currently unavailable

20

Exmark 2408915-S

Spring, Governor

$

$

Currently unavailable

21

Exmark M-0641060

Nut, Hex. Flange M6x1.0

$

$

Currently unavailable

22

Exmark M-0642025

Screw, Hex. Cap M6x1.0x25

$

$

Currently unavailable

23

Exmark 2515811-S

Bushing, Linkage - Black

$

$

Currently unavailable

24

Exmark 2407901-S

Linkage, Throttle

$

$

Currently unavailable

25

Exmark 2515808-S

Bushing, Linkage - Natural

$

$

Currently unavailable
