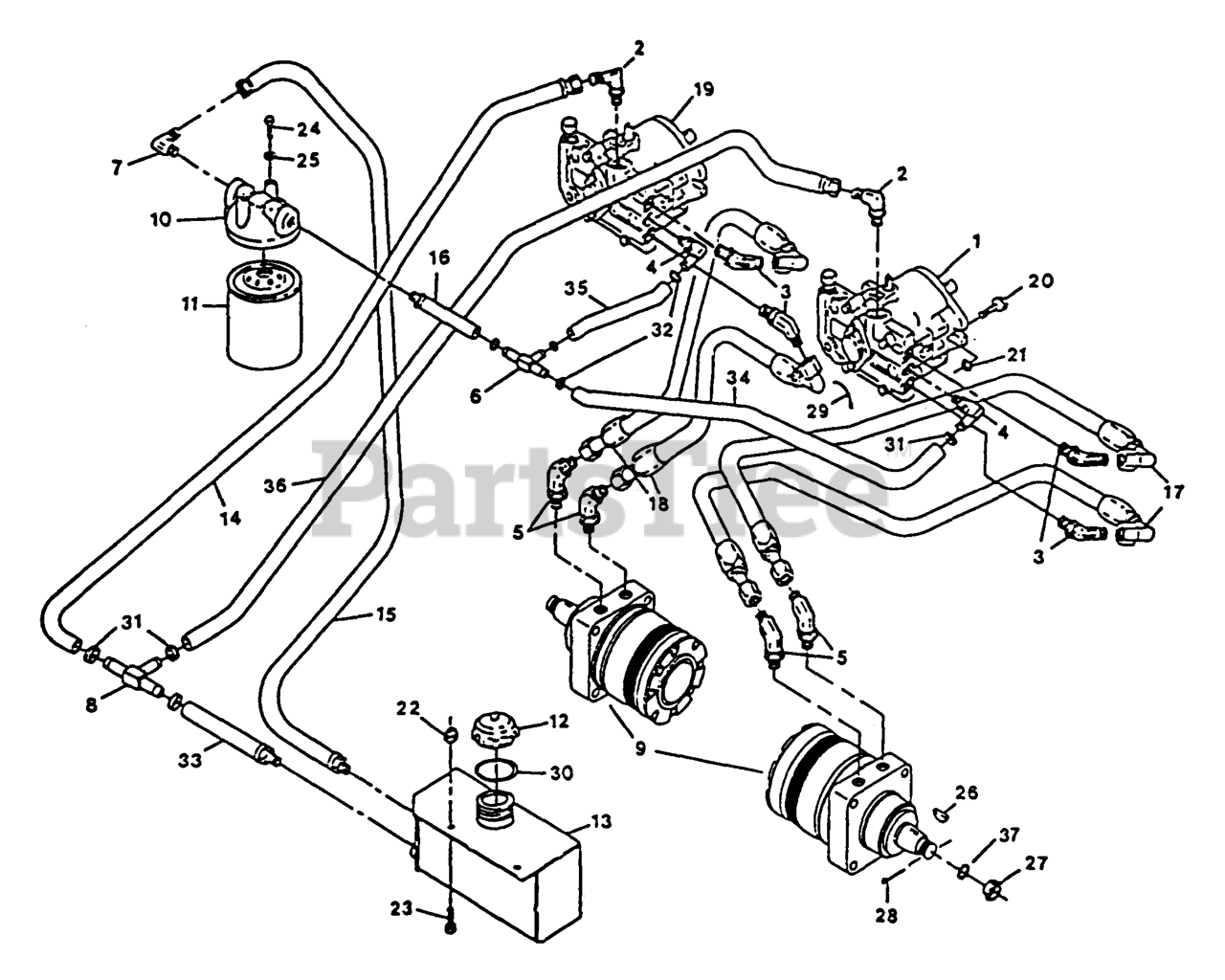

EX20KC - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 130000 - 149999) (1997) Hydraulics Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

Hydraulics Parts Diagram

  • Title

1

Exmark 1-523187

DISCONTINUED

Note: LH

$

$

Not available

Exmark 2513018

80-6130
(Superseded to 80-6130)

$80.99

$

In Stock, Qty 6

0

2

Exmark 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

3

Exmark 1-523221

FITTING-HYD, 45 DEG

$47.99

$

Usually ships in 3-6 days

0

4

Exmark 1-603989

FITTING

$35.99

$

Usually ships in 3-6 days

0

5

Exmark 1-523222

FITTING-HYD, 45 DEG

$61.99

$

Usually ships in 3-6 days

0

6

Exmark 1-603721

FITTING-TEE, HOSE

Note: 3/8" ID hose

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 1-513509

103-1012
(Superseded to 103-1012)

$25.99

$

Usually ships in 3-6 days

0

8

Exmark 1-603722

FITTING-TEE, HOSE

Note: 1/4" ID hose

$21.99

$

Usually ships in 3-6 days

0

9

Exmark 1-523328

MOTOR-WHEEL

$1299.99

$

Usually ships in 3-6 days

0

Exmark 1-000099

103-6994
(Superseded to 103-6994)

$339.99

$

Usually ships in 3-6 days

0

Exmark 1-000139

Kit, Bearing

$

$

Not available

10

Exmark 1-513006

FILTER-HEAD

Note: Use Teflon pipe sealant on pipe threads in reservoir 8 filter head

$87.99

$

Usually ships in 3-6 days

0

11

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$47.99

$

In Stock, Qty 20+

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: winter Use only for operation below 32øF(0øC)

$47.99

$

In Stock, only 2 left!

0

12

Exmark 1-513167

CAP

$26.99

$

In Stock, only 4 left!

0

13

Exmark 1-512166-03

DISCONTINUED

Note: Use Teflon pipe sealant on pipe threads in reservoir 8 filter head

$

$

Not available

14

Exmark 1-522217

LOW PRESSURE HOSE ASM

Note: 7"

$37.99

$

Usually ships in 3-6 days

0

15

Exmark 1-522216

DISCONTINUED

Note: 13"

$

$

Not available

16

Exmark 1-522215

DISCONTINUED

Note: 4 1/4"

$

$

Not available

17

Exmark 1-403102

HOSE-PRESSURE, HIGH

Note: LH

$111.99

$

In Stock, Qty 5

0

18

Exmark 1-523325

HOSE,HIGH PRESSURE

Note: RH

$

$

Not available

19

Exmark 1-523188

DISCONTINUED

Note: RH

$

$

Not available

Exmark 2513018

80-6130
(Superseded to 80-6130)

$80.99

$

In Stock, Qty 6

0

20

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 18

0

21

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

23

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 13

0

25

Exmark 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 1-807020

3257-42
(Superseded to 3257-42)

$6.49

$

In Stock, Qty 20+

0

27

Exmark 1-809039

DISCONTINUED (EXMARK)

$

$

Not available

28

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

29

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

30

Exmark 1-523103

GASKET-CAP, TANK

$6.49

$

In Stock, Qty 14

0

31

Exmark 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 1-603827

CLAMP-HOSE

$2.99

$

In Stock, only 4 left!

0

33

Exmark 1-522219

DISCONTINUED

Note: 3"

$

$

Not available

34

Exmark 1-523214

HOSE,LO PRESSURE

Note: 12"

$

$

Not available

35

Exmark 1-523213

DISCONTINUED

Note: 4.3"

$

$

Not available

36

Exmark 1-522218

DISCONTINUED (EXMARK)

Note: 10"

$

$

Not available

37

Exmark 1-523157

WASHER-SPACER

Note: As Req'd.

$1.49

$

In Stock, Qty 20+

0
