EX2200 A (EA2) - Honda Generator, Made in Japan (SN: EA2-1000001 - EA2-9999999) CONTROL PANEL Parts Diagram

Generator, Made in Japan

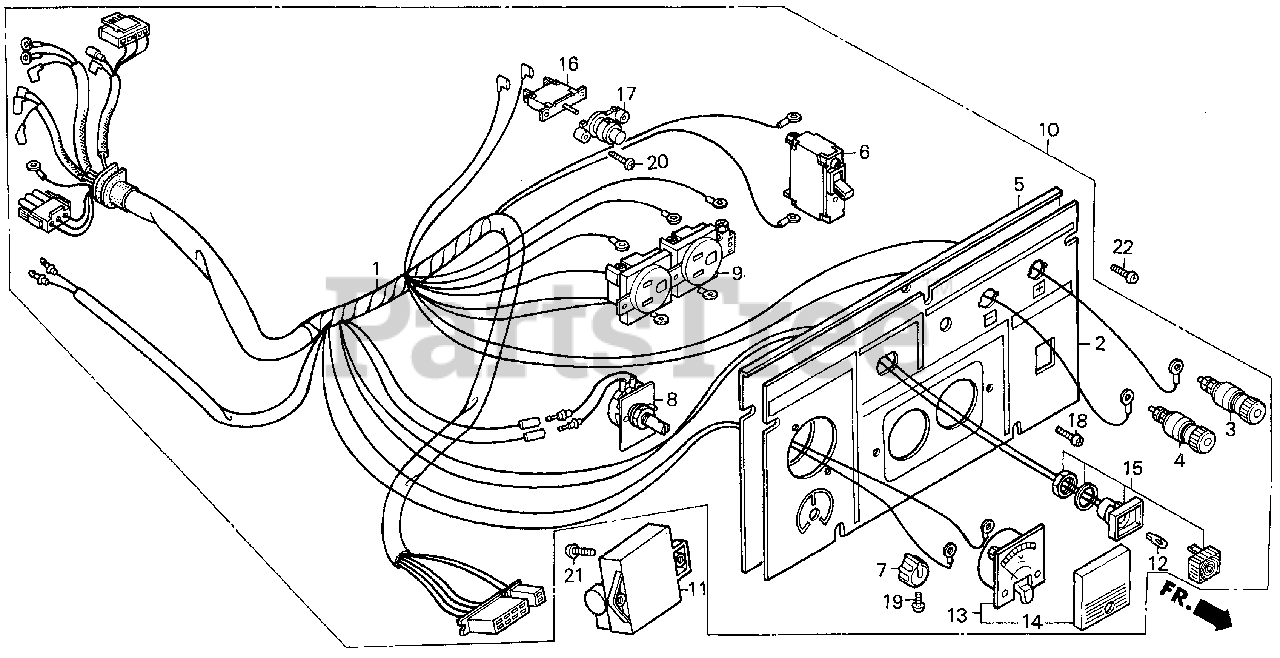

CONTROL PANEL Parts Diagram

  • Title

1

Honda 31404-ZB6-003

WIRE HARNESS ASSY.

Note: Use up to Frame SN 1007230.

$

$

Not available

1

Honda 31404-ZB6-013

WIRE HARNESS ASSY.

Note: Use from Frame SN 1007231.

$

$

Not available

2

Honda 31406-ZB6-630

MARK, SWITCH PANEL

$

$

Currently unavailable

3

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$43.99

$

Usually ships in 3-6 days

0

4

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$43.99

$

Usually ships in 3-6 days

0

5

Honda 31420-ZB6-003

PANEL, CONTROL

$

$

Not available

6

Honda 31430-ZB3-630

BREAKER, CIRCUIT (17.5A)

$

$

Not available

7

Honda 31461-898-000

KNOB, ADJUSTING

$12.99

$

Usually ships in 3-6 days

0

8

Honda 31465-ZB2-003

RESISTOR

$103.99

$

Usually ships in 3-6 days

0

9

Honda 32330-877-000

RECEPTACLE (15A/125V)

$72.99

$

Usually ships in 3-6 days

0

10

Honda 32340-ZB6-631

PANEL ASSY., CONTROL

Note: Use up to Frame SN 1007230.

$

$

Not available

10

Honda 32340-ZB6-632

PANEL ASSY., CONTROL (A)

Note: Use from Frame SN 1007231.

$

$

Not available

11

Honda 32350-ZB3-004

SEE PART DETAILS - SUP; REGULATOR UNIT, AUTOMATIC
(Superseded to 32350-ZB3-014)

Note: Use up to Frame SN 1009989.

$186.99

$

In Stock, only 1 left!

0

11

Honda 32350-ZB3-014

SEE PART DETAILS - PRI; REGULATOR UNIT, AUTOMATIC

$186.99

$

In Stock, only 1 left!

0

12

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W) (TSD30) (STANLEY)

$3.49

$

In Stock, only 1 left!

0

13

Honda 37450-ZB2-C00

SEE PART DETAILS - PRI; VOLTMETER ASSY.

$214.99

$

Usually ships in 3-6 days

0

14

Honda 37451-ZB2-000

LENS, METER

$18.99

$

Usually ships in 3-6 days

0

15

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN)

$40.99

$

Usually ships in 3-6 days

0

16

Honda 38240-898-000

PROTECTOR, CIRCUIT (DC)

$34.99

$

In Stock, only 4 left!

0

17

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

$18.99

$

Usually ships in 3-6 days

0

18

Honda 90182-ZB6-003

SCREW-WASHER (4X10)

$

$

Not available

19

Honda 93500-03008-0A

SCREW, PAN (3X8)

$0.99

$

In Stock, only 1 left!

0

20

Honda 93500-03012-0A

SCREW, PAN (3X12)

$0.99

$

In Stock, Qty 7

0

21

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

22

Honda 93500-05012-0G

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0
