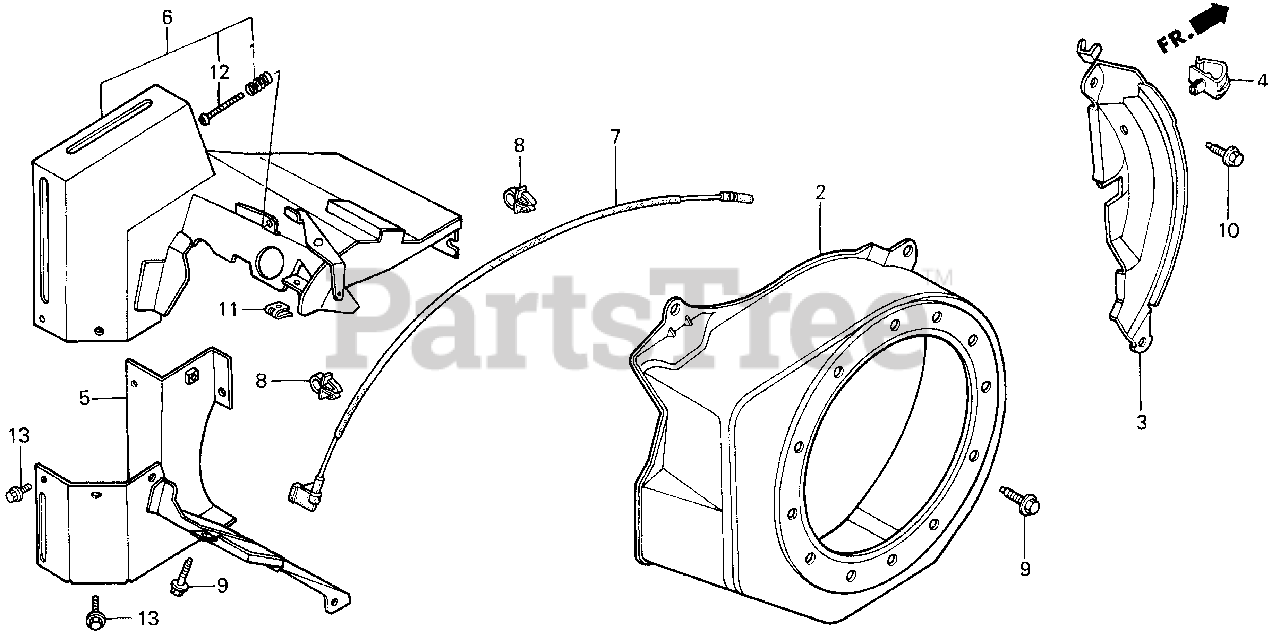

EX2200 A (EA2) - Honda Generator, Made in Japan (SN: EA2-1000001 - EA2-9999999) FAN COVER + SIDE PLATE Parts Diagram

Generator, Made in Japan

FAN COVER + SIDE PLATE Parts Diagram

  • Title

1

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, only 1 left!

0

2

Honda 19610-ZB6-000

SEE PART DETAILS - SUP; COVER, FAN

$

$

Currently unavailable

3

Honda 19612-ZH8-830

PLATE, SIDE (ALERT & LAMP)

$

$

Not available

4

Honda 19613-ZE1-010

SEE PART DETAILS - PRI; CLAMP, CORD

$1.99

$

Usually ships in 3-6 days

0

5

Honda 19630-ZB6-000

SHROUD (LOWER)

$87.99

$

Usually ships in 3-6 days

0

6

Honda 19640-ZB6-000

SHROUD ASSY. (UPPER)

$

$

Not available

7

Honda 36101-ZB6-000

WIRE, STOP SWITCH

Note: Use up to Engine SN 3155568.

$

$

Not available

7

Honda 36101-ZB6-010

WIRE, STOP SWITCH (NOT AVAILABLE)

Note: Use from Engine SN 3155569.

$

$

Currently unavailable

8

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 13

0

10

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 1 left!

0

11

Honda 90344-SA7-980

NUT, SPRING (5MM)

$

$

Not available

12

Honda 93500-05032-0A

SCREW, PAN (5X32)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0
