EX2200 A (EA2) - Honda Generator, Made in Japan (SN: EA2-1000001 - EA2-9999999) FLYWHEEL Parts Diagram

Generator, Made in Japan

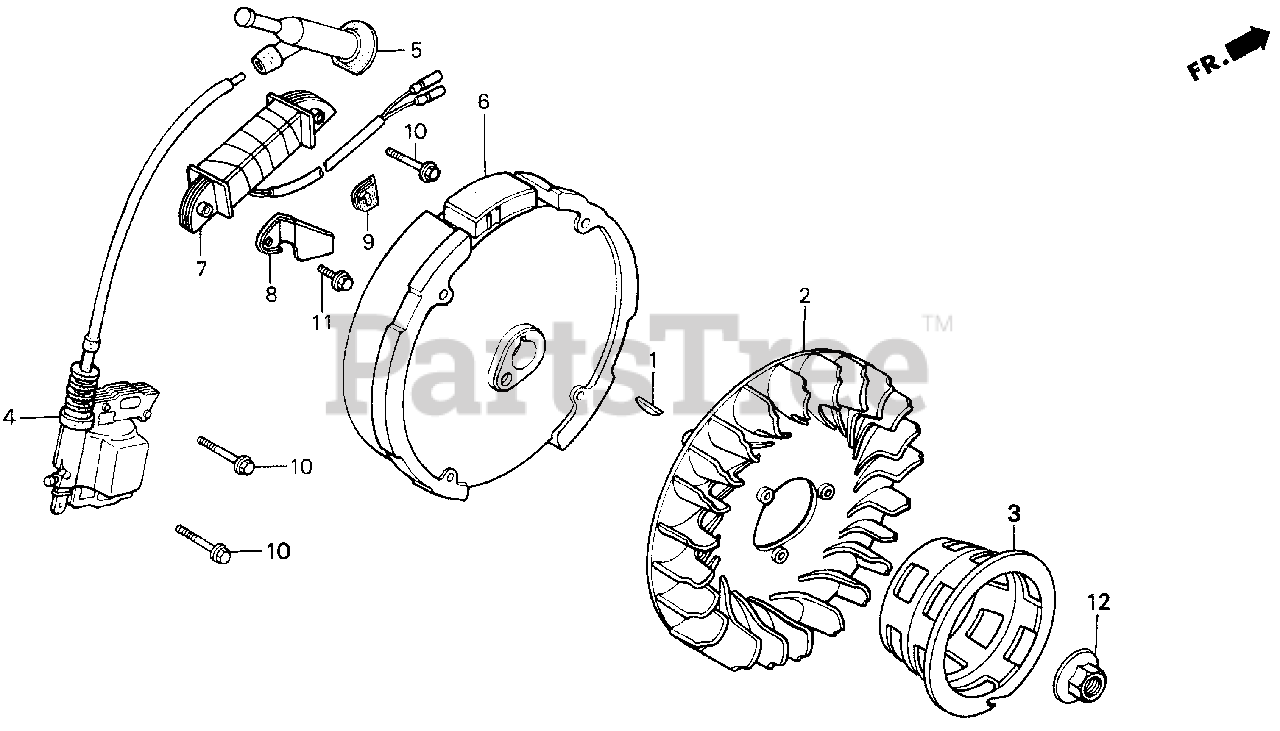

FLYWHEEL Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$5.99

$

In Stock, Qty 20+

0

2

Honda 19511-ZE1-000

FAN, COOLING

$33.99

$

In Stock, only 2 left!

0

3

Honda 28451-ZE1-003

PULLEY, STARTER

$38.99

$

Usually ships in 3-6 days

0

4

Honda 30500-ZE1-013

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

Note: Use up to Engine SN 3155568.

$

$

Currently unavailable

4

Honda 30500-ZE1-033

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZE1-073)

Note: Use from Engine SN 3155569.

$118.99

$

In Stock, only 1 left!

0

4

Honda 30500-ZE1-043

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZE1-073)

Note: Use from Engine SN 3155569.

$118.99

$

In Stock, only 1 left!

0

4

Honda 30500-ZE1-063

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZE1-073)

Note: Use from Engine SN 3155569.

$118.99

$

In Stock, only 1 left!

0

5

Honda 30700-ZB6-013

CAP ASSY., NOISE SUPPRESSOR

$31.99

$

Usually ships in 3-6 days

0

6

Honda 31100-ZE1-811

FLYWHEEL (LAMP)

$212.99

$

Usually ships in 3-6 days

0

7

Honda 31510-ZB6-003

COIL ASSY., BACK-UP

$73.99

$

Usually ships in 3-6 days

0

8

Honda 31511-ZE1-000

CLAMP, WIRE

$5.49

$

In Stock, only 2 left!

0

9

Honda 31512-ZE1-000

GROMMET, WIRE

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90015-883-000

BOLT, FLANGE (6X28)

$4.49

$

In Stock, only 4 left!

0

11

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$8.49

$

In Stock, only 2 left!

0
