EX2200 A (EA2) - Honda Generator, Made in Japan (SN: EA2-1000001 - EA2-9999999) FUEL TANK Parts Diagram

Generator, Made in Japan

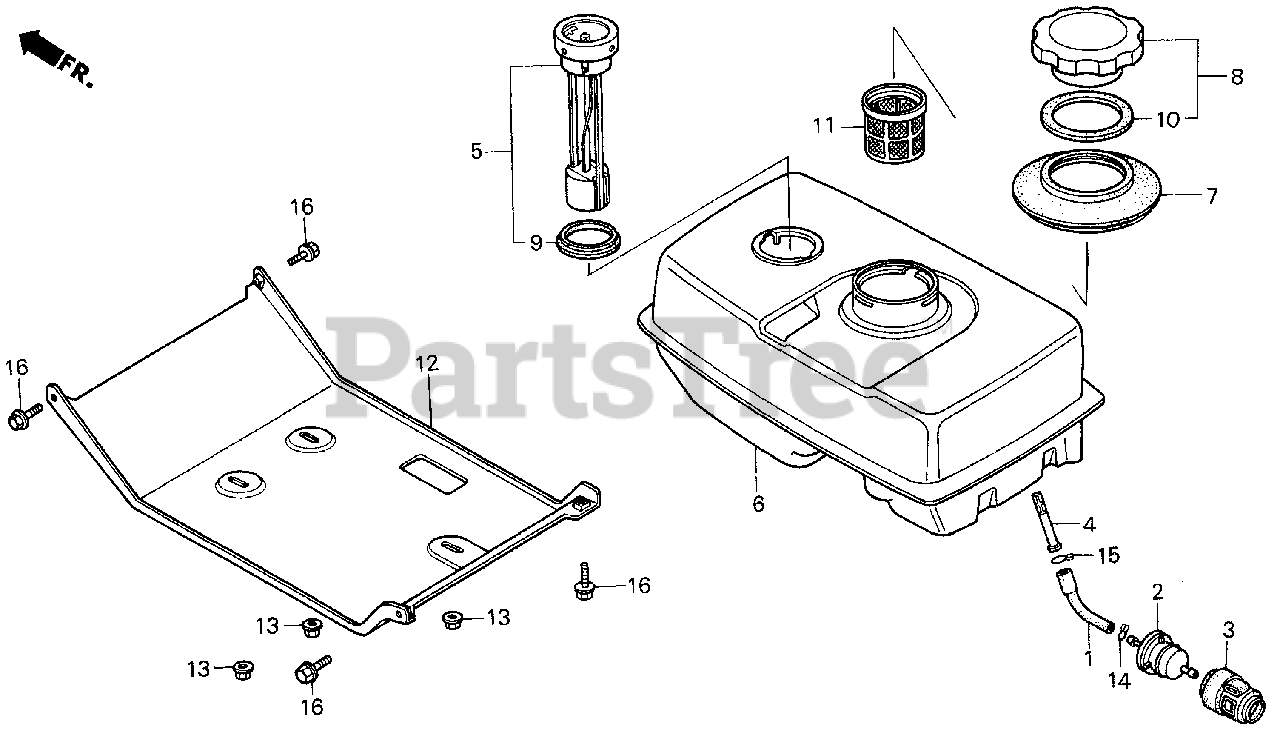

FUEL TANK Parts Diagram

  • Title

1

Honda 16852-ZB6-000

TUBE, FUEL TANK

$11.99

$

Usually ships in 3-6 days

0

2

Honda 16910-GB2-005

FILTER, FUEL

$19.99

$

In Stock, Qty 12

0

3

Honda 16915-GB2-000

SUSPENSION, STRAINER

$8.49

$

Usually ships in 3-6 days

0

4

Honda 16952-ZB6-000

SEE PART DETAILS - SUP; BUSH, FUEL PURGE
(Superseded to 16952-ZB6-010)

$9.99

$

Usually ships in 3-6 days

0

5

Honda 17505-898-623

METER, FUEL

$

$

Not available

6

Honda 17510-ZB6-010

TANK, FUEL

Note: Use up to Frame SN 1012961.

$256.99

$

Usually ships in 3-6 days

0

7

Honda 17520-ZA0-800

SEAL, FUEL FILLER NECK

$27.99

$

Usually ships in 3-6 days

0

8

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL TANK
(Superseded to 17620-899-023)

$47.99

$

In Stock, only 1 left!

0

9

Honda 17624-187-020

GASKET C, FUEL METER

$

$

Not available

10

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$9.49

$

In Stock, Qty 11

0

11

Honda 17672-899-000

FILTER, FUEL

$20.99

$

Usually ships in 3-6 days

0

12

Honda 63125-ZB6-000

PLATE, FUEL TANK HANGER

$

$

Not available

13

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

15

Honda 95002-02100

CLIP, TUBE (B10)

$2.99

$

In Stock, Qty 20+

0

16

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-00)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
