EX2200 A (EA2) - Honda Generator, Made in Japan (SN: EA2-1000001 - EA2-9999999) MUFFLER Parts Diagram

Generator, Made in Japan

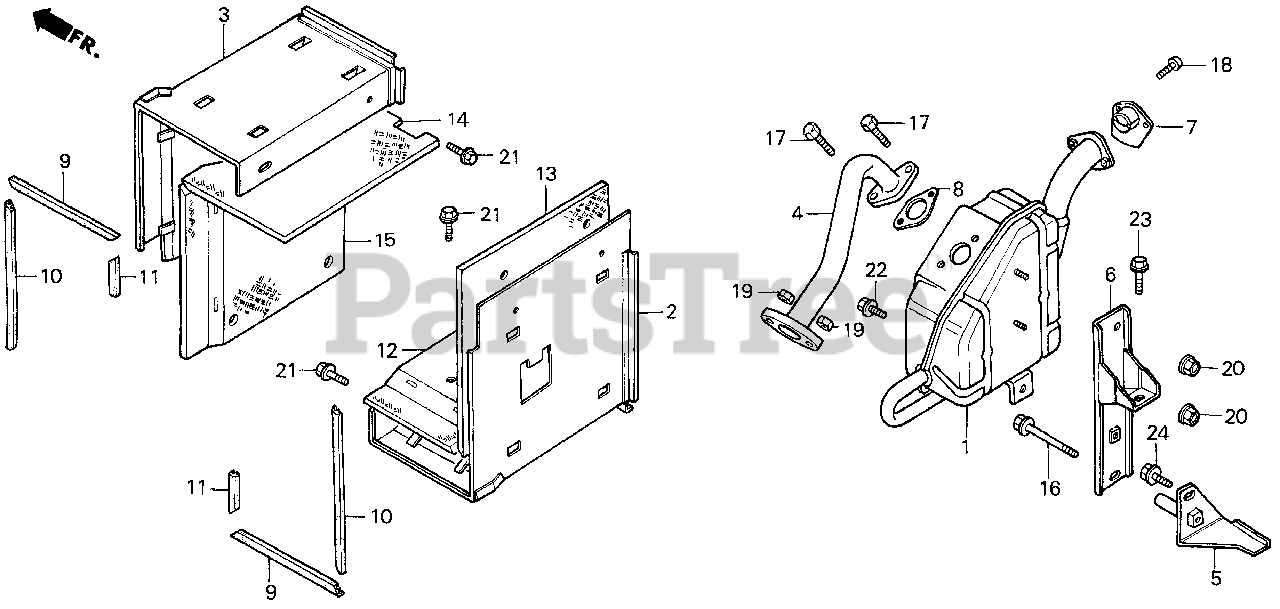

MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZB6-631

MUFFLER

$

$

Not available

2

Honda 18321-ZB6-000

DUCT, MUFFLER (LOWER)

$89.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZB6-000

DUCT, MUFFLER (UPPER)

$89.99

$

Usually ships in 3-6 days

0

4

Honda 18330-ZB6-000

PIPE, EX.

$38.99

$

Usually ships in 3-6 days

0

5

Honda 18335-ZB6-000

BRACKET, MUFFLER STAY SETTING

$

$

Not available

6

Honda 18338-ZB6-000

STAY, MUFFLER

$

$

Not available

7

Honda 18355-ZB6-631

ARRESTER, SPARK

$22.99

$

Usually ships in 3-6 days

0

8

Honda 18381-ZE1-800

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-ZE1-801)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 18412-ZB6-000

SEAL A, MUFFLER DUCT

$6.99

$

Usually ships in 3-6 days

0

10

Honda 18413-ZB6-000

SEAL B, MUFFLER DUCT

$6.99

$

Usually ships in 3-6 days

0

11

Honda 18414-ZB6-000

SEAL C, MUFFLER DUCT

$8.99

$

Usually ships in 3-6 days

0

12

Honda 64181-ZB6-000

INSULATOR A, MUFFLER DUCT (LOWER)

$23.99

$

Usually ships in 3-6 days

0

13

Honda 64182-ZB6-000

INSULATOR B, MUFFLER DUCT (LOWER)

$25.99

$

Usually ships in 3-6 days

0

14

Honda 64185-ZB6-000

INSULATOR A, MUFFLER DUCT (UPPER)

$23.99

$

Usually ships in 3-6 days

0

15

Honda 64186-ZB6-000

INSULATOR B, MUFFLER DUCT (UPPER)

$25.99

$

Usually ships in 3-6 days

0

16

Honda 90165-ZB6-000

BOLT, FLANGE (8X70)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 92101-08020-0A

BOLT, HEX. (8X20)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 9

0

19

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 20+

0

20

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

22

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

22

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

23

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

23

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

24

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 4 left!

0
