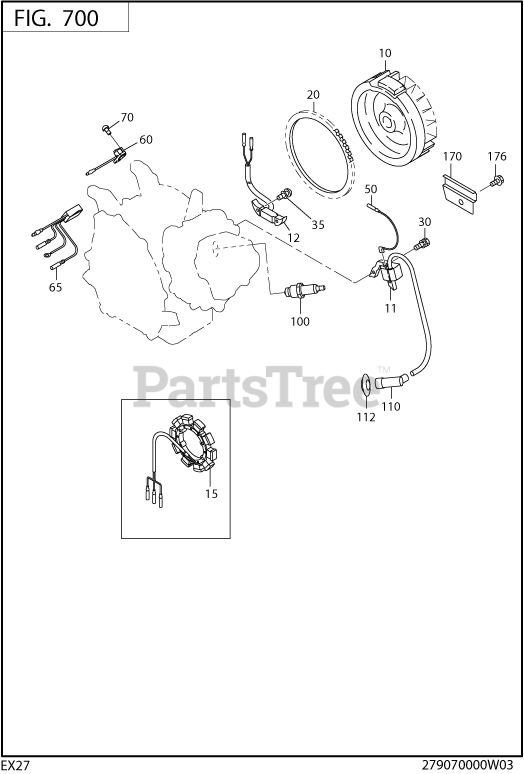

EX270D50103 (EX27) - Subaru Robin Engine 700 Electric Device Parts Diagram

Engine

700 Electric Device Parts Diagram

  • Title

10

Subaru Robin 279-79230-11

FLYWHEEL CP

Note: Start Date: 1/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: MARK FA AP02.

$222.96

$

Usually ships in 2-12 days

0

11

Subaru Robin 279-79430-01

IGNITION COIL CP

Note: Start Date: 1/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: MARK AB.

$188.99

$

In Stock, only 1 left!

0

30

Subaru Robin 001-14062-50

BOLT AND WASHER AY

Note: Start Date: 1/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X25L W/W,SW.

$0.99

$

In Stock, Qty 8

0

50

Subaru Robin 277-73102-H1

WIRE 2 CP

Note: Start Date: 1/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=360 BLACK.

$

$

Not available

60

Subaru Robin 066-00004-90

SWITCH AY

Note: End Code: 8279. Start Date: 1/1/2008 0:00:00. Start Date: 8/31/2009 0:00:00.

$9.66

$

Usually ships in 2-12 days

0

60

Subaru Robin 066-00004-91

SWITCH AY

Note: Start Code: 8280. Start Date: 9/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$9.66

$

Usually ships in 2-12 days

0

70

Subaru Robin 015-00400-90

TAPPING SCREW

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M4X12L.

$0.99

$

In Stock, only 1 left!

0

100

Subaru Robin 065-01401-50

SPARK PLUG

Note: Start Date: 1/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: NGK BR6HS.

$3.49

$

In Stock, Qty 19

0

110

Subaru Robin 065-50002-70

SPARK PLUG CAP

Note: Start Date: 1/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00.

$6.16

$

Usually ships in 2-12 days

0
