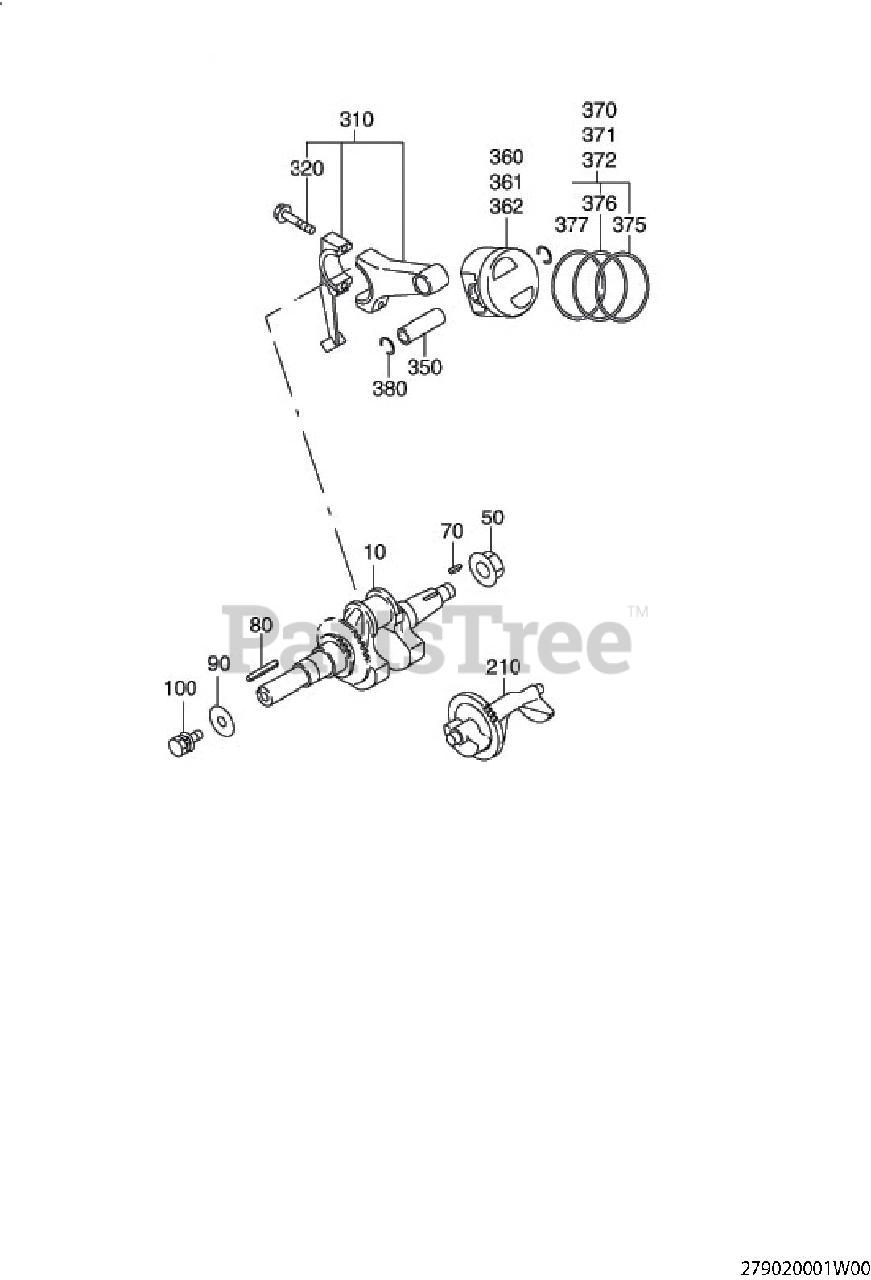

EX270D50212 (EX27) - Subaru Robin Engine 200 Crankshaft Parts Diagram

Engine

200 Crankshaft Parts Diagram

  • Title

10

Subaru Robin 279-20902-21

CRANK SHAFT CP

$500.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 018-01800-10

FLANGE NUT

Note: M18X1.5X31DX14H

$16.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 032-30300-10

WOODRUFF KEY

Note: 3BX6HX16D

$7.49

$

Usually ships in 2-12 days

0

210

Subaru Robin 279-24101-33

BALANCER SHAFT

$223.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 279-22501-20

CONNECTING ROD AY

$293.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 279-23001-03

CONNECTING ROD BOLT

Note: M7X1.0X13.8DX40L

$18.99

$

Usually ships in 2-12 days

0

350

Subaru Robin 279-23301-13

PISTON PIN

Note: 18DX13DX53L

$25.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 279-23401-H3

PISTON

Note: STD (75DX43H)

$

$

Not available

361

Subaru Robin 279-23403-H3

PISTON

Note: 0.25 O.S.(75DX43H).

$129.99

$

In Stock, only 1 left!

0

362

Subaru Robin 279-23404-H3

PISTON

Note: 0.50 O.S.(75DX43H).

$129.99

$

Usually ships in 2-12 days

0

370

Subaru Robin 279-23511-17

PISTON RING SET

Note: STD (75D) OIL EXPAND

$101.99

$

In Stock, only 1 left!

0

371

Subaru Robin 279-23512-17

PISTON RING SET

Note: 0.25 O.S. OIL EXPAND

$151.99

$

Usually ships in 2-12 days

0

372

Subaru Robin 279-23513-17

PISTON RING SET

Note: 0.50 O.S. OIL EXPAND

$151.99

$

Usually ships in 2-12 days

0

380

Subaru Robin 056-51800-10

CLIP

Note: 18.9DX1.6D

$2.49

$

In Stock, Qty 10

0
