Ex3200 (54AAC4M-727) - Cub Cadet Yanmar Ex Series Compact Tractor Front Drive Shaft Parts Diagram

Ex Series Compact Tractor

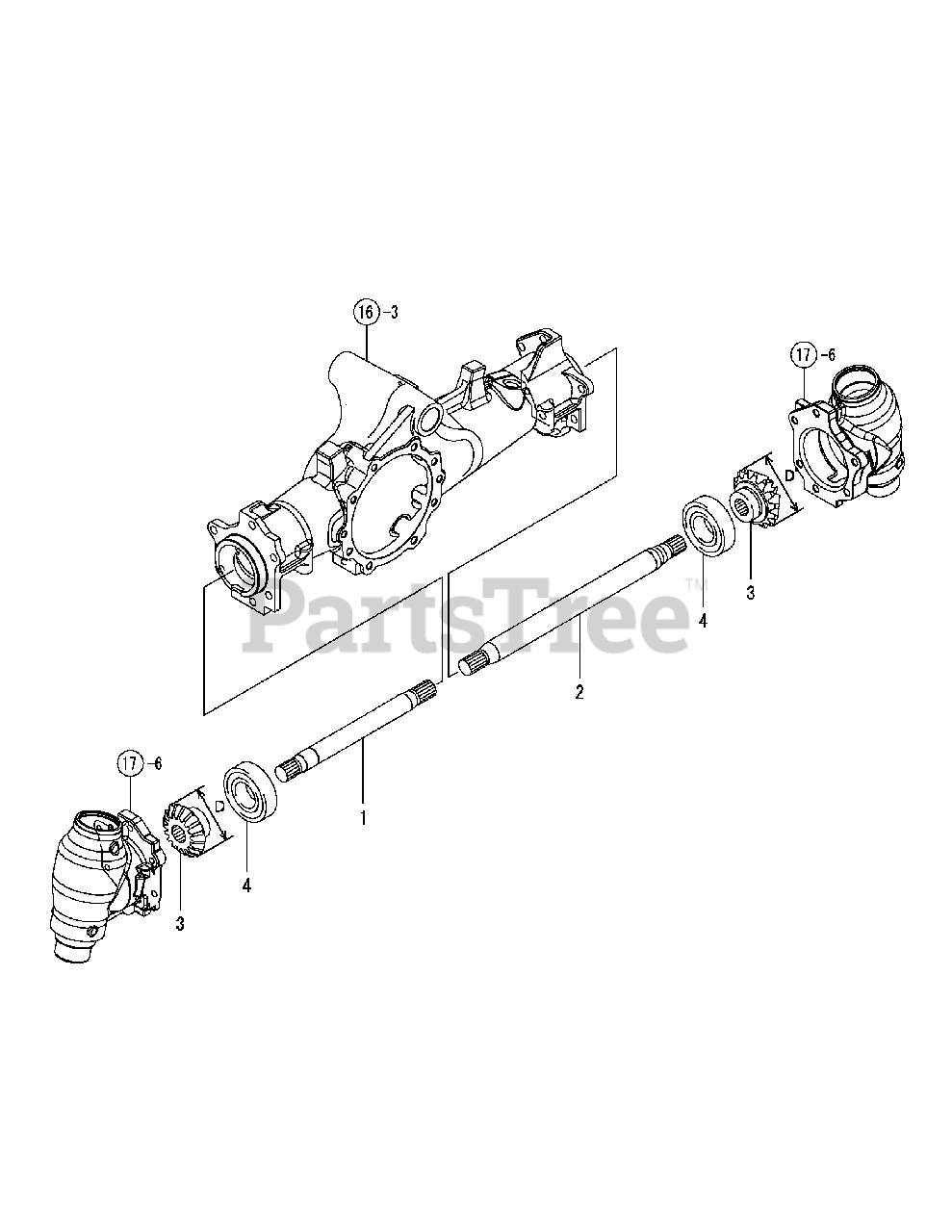

Front Drive Shaft Parts Diagram

  • Title
1

Cub Cadet CY-1A8160-13510

SHAFT, DRIVE L.H.

$

$

Not available

2

Cub Cadet CY-1A8160-13520

SHAFT, DRIVE R.H.

$

$

Not available

3

Cub Cadet CY-1A8160-13560

PINION, FRONT 1ST D=72MM

Note: (Use with CY-1A8160-13980, Front Shaft Ref No.3 D=69MM)

$

$

Not available

3-1

Cub Cadet CY-1A8160-13561

PINION, FRONT 1ST D=70MM

Note: (Use with CY-1A8160-13981, Front Shaft Ref No.3 D=66MM)

$

$

Not available

4

$

$

Not available

Note: 16-3 Refer to FRONT AXLE CASE, Ref No 3

$

$

Not available

Note: 17-6 Refer to FRONT GEAR CASE, Ref No 6

$

$

Not available
