EX3300S K1 A/A (EB2) - Honda Generator, Made in Japan (SN: EB2-1102330 - EB2-1109999) CARBURETOR Parts Diagram

Generator, Made in Japan

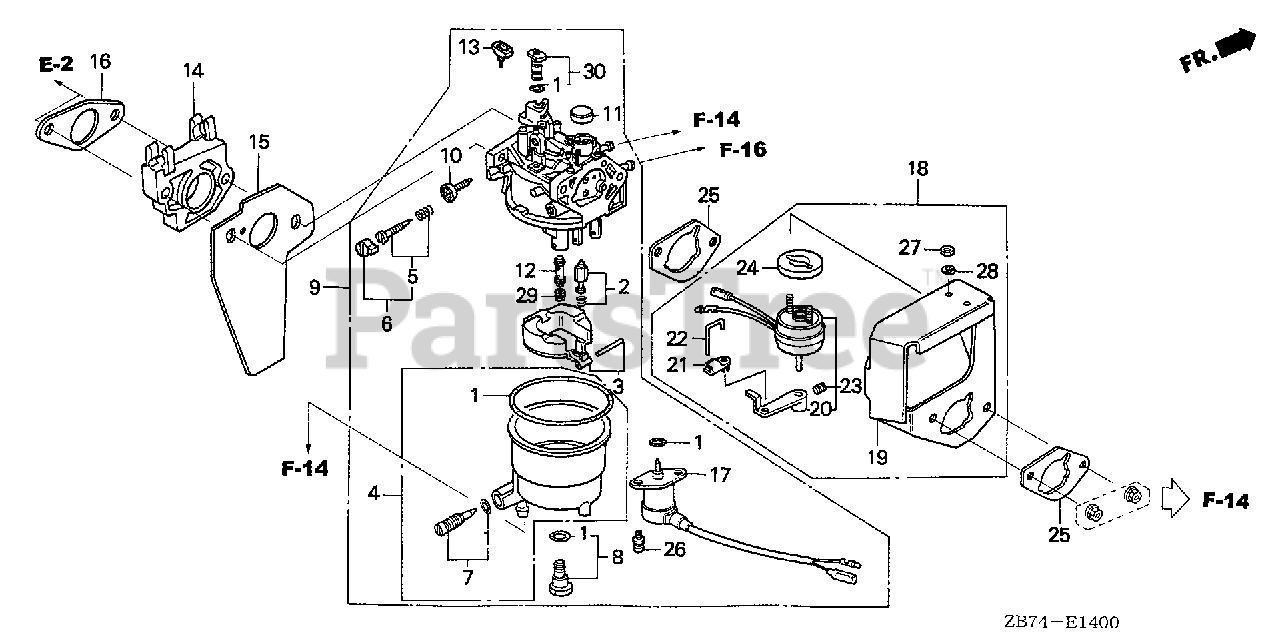

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE3-701

GASKET SET (Honda Code 2386233).

$17.99

$

In Stock, Qty 8

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$40.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$46.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT (Honda Code 2386241).

$75.99

$

Usually ships in 3-6 days

0

6

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

$19.99

$

In Stock, only 4 left!

0

7

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$13.99

$

Usually ships in 3-6 days

0

8

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 2097376).

$25.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE2-F31

CARBURETOR ASSY.

$

$

Not available

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$14.99

$

In Stock, only 2 left!

0

11

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

12

Honda 16166-ZE2-015

NOZZLE, MAIN (Honda Code 2157543).

$30.99

$

Usually ships in 3-6 days

0

13

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$9.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZB7-000

INSULATOR, CARBURETOR

$21.99

$

Usually ships in 3-6 days

0

15

Honda 16221-ZB7-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4011276).

$21.99

$

Usually ships in 3-6 days

0

16

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.49

$

In Stock, Qty 20+

0

17

Honda 16230-ZE3-702

SEE PART DETAILS - PRI; VALVE ASSY., SOLENOID

$67.99

$

In Stock, only 1 left!

0

18

Honda 16260-ZB7-000

STAY ASSY., SOLENOID (Honda Code 2297109).

$190.99

$

Usually ships in 3-6 days

0

19

Honda 16261-ZB7-000

STAY, CHOKE SOLENOID (Honda Code 2297117).

$33.99

$

Usually ships in 3-6 days

0

20

Honda 16262-ZB7-000

LEVER, CHOKE SOLENOID (Honda Code 2297125).

$7.99

$

Usually ships in 3-6 days

0

21

Honda 16263-ZA0-000

JOINT, ROD (Honda Code 1307677).

$4.99

$

In Stock, only 1 left!

0

22

Honda 16264-ZB7-000

ROD, CHOKE SOLENOID (Honda Code 2297133).

$2.49

$

In Stock, only 2 left!

0

23

Honda 16265-ZB7-000

SOLENOID ASSY., CHOKE (Honda Code 2297141).

$159.99

$

Usually ships in 3-6 days

0

24

Honda 16266-ZB7-000

SPACER, CHOKE SOLENOID (Honda Code 2297158).

$12.99

$

Usually ships in 3-6 days

0

25

Honda 16269-ZA0-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212).

$2.49

$

In Stock, Qty 10

0

26

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621).

$1.49

$

In Stock, Qty 5

0

27

Honda 94001-03000-0S

NUT, HEX. (3MM) (Honda Code 0166694).

$1.49

$

In Stock, Qty 7

0

28

Honda 94111-03800

WASHER, SPRING (3MM) (Honda Code 0285668).

$0.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZH8-0750

JET, MAIN (#75) (CARBURETOR NO.)

Note: (Optional).

$7.99

$

In Stock, only 2 left!

0

29

Honda 99101-ZH8-0780

JET, MAIN (#78) (CARBURETOR NO.)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZH8-0800

SEE PART DETAILS - PRI; JET, MAIN (#80)

$7.49

$

Usually ships in 3-6 days

0

30

Honda 99204-ZA0-0450

JET SET, PILOT (#45) (Honda Code 2060465).

$21.99

$

In Stock, only 1 left!

0
