EX3300S K1 A/A (EB2) - Honda Generator, Made in Japan (SN: EB2-1102330 - EB2-1109999) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

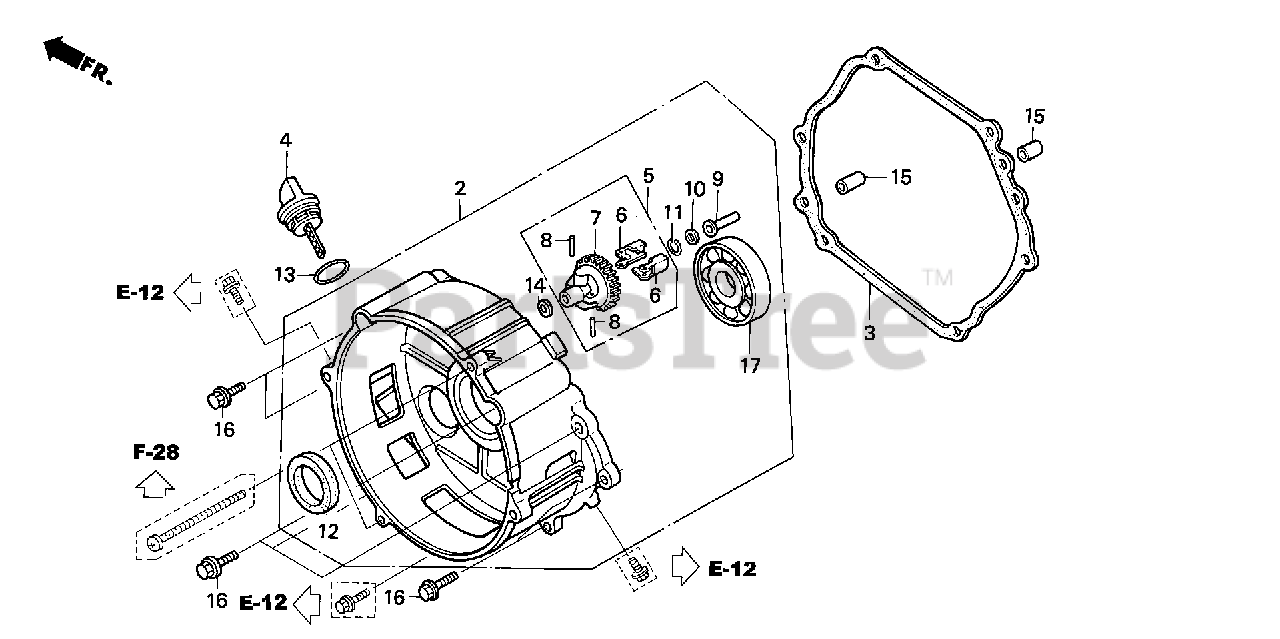

CRANKCASE COVER Parts Diagram

  • Title

2

Honda 11300-Z1D-700

COVER ASSY., CRANKCASE

$130.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZE2-800

SEE PART DETAILS - SUP; GASKET, CASE COVER (Honda Code 3678505).
(Superseded to 11381-ZE2-801)

Note: Use up to Engine SN 4045100.

$10.99

$

In Stock, only 3 left!

0

3

Honda 11381-ZE2-801

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 6436851).

Note: Use from Engine SN 4045101.

$10.99

$

In Stock, only 3 left!

0

4

Honda 15620-ZE2-700

CAP, OIL FILLER

$7.99

$

In Stock, only 1 left!

0

5

Honda 16510-ZE2-000

GOVERNOR ASSY. (STD) (Honda Code 2871390).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 16511-ZE2-000

WEIGHT, GOVERNOR (Honda Code 2025955).

$3.99

$

Usually ships in 3-6 days

0

7

Honda 16512-ZE2-000

HOLDER, GOVERNOR WEIGHT (Honda Code 2106219).

$17.99

$

Usually ships in 3-6 days

0

8

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

9

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.49

$

In Stock, Qty 6

0

9

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR (Honda Code 2025989).
(Superseded to 16531-Z0A-000)

Note: Use up to Engine SN 4211335.

$3.49

$

In Stock, Qty 6

0

11

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 13

0

12

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$10.99

$

In Stock, Qty 7

0

13

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$4.99

$

In Stock, only 2 left!

0

14

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

15

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.49

$

Usually ships in 3-6 days

0

16

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0

17

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$28.99

$

Usually ships in 3-6 days

0
