EX3300S K1 A/A (EB2) - Honda Generator, Made in Japan (SN: EB2-1102330 - EB2-1109999) ROTOR@STATOR Parts Diagram

Generator, Made in Japan

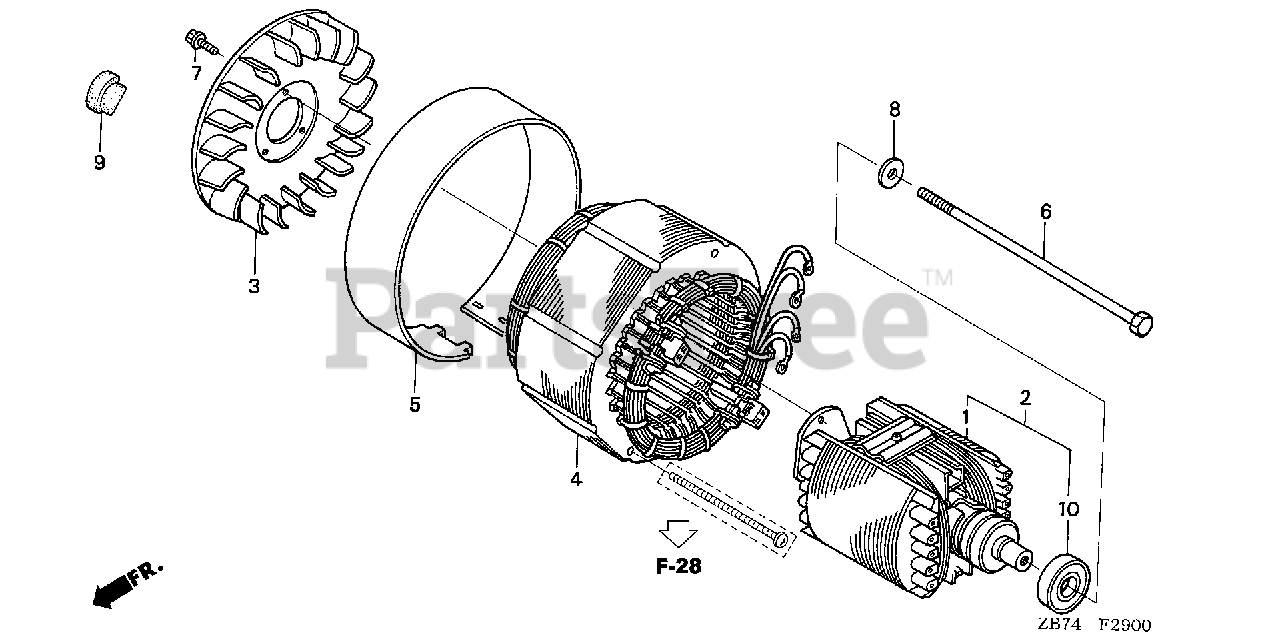

ROTOR@STATOR Parts Diagram

  • Title
2

Honda 31130-ZB4-023

SEE PART DETAILS - PRI; ROTOR

$914.99

$

Usually ships in 3-6 days

0

3

Honda 31112-ZB4-003

FAN, GENERATOR COOLING

$105.99

$

Usually ships in 3-6 days

0

4

Honda 31120-ZB4-631

STATOR ASSY.

$

$

Not available

5

Honda 31127-ZB4-631

COVER, STATOR

$43.99

$

Usually ships in 3-6 days

0

6

Honda 90021-ZB4-000

BOLT, HEX. (10X210)

$18.99

$

Usually ships in 3-6 days

0

7

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90504-ZA0-000

WASHER (10.5MM)

$5.99

$

Usually ships in 3-6 days

0

9

Honda 90855-ZB4-000

GROMMET, CRANKCASE

Note: Use up to Frame SN 1103123.

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90855-ZB4-000

GROMMET, CRANKCASE

Note: Use from Frame SN 1103124.

$3.99

$

Usually ships in 3-6 days

0

10

Honda 91051-ZB4-003

BEARING ASSY. (6204)

$30.99

$

Usually ships in 3-6 days

0
