EX3300S K1 A (EB2) - Honda Generator, Made in Japan (SN: EB2-1100001 - EB2-1102329) AUTO THROTTLE + SUB WIRE HARNESS Parts Diagram

Generator, Made in Japan

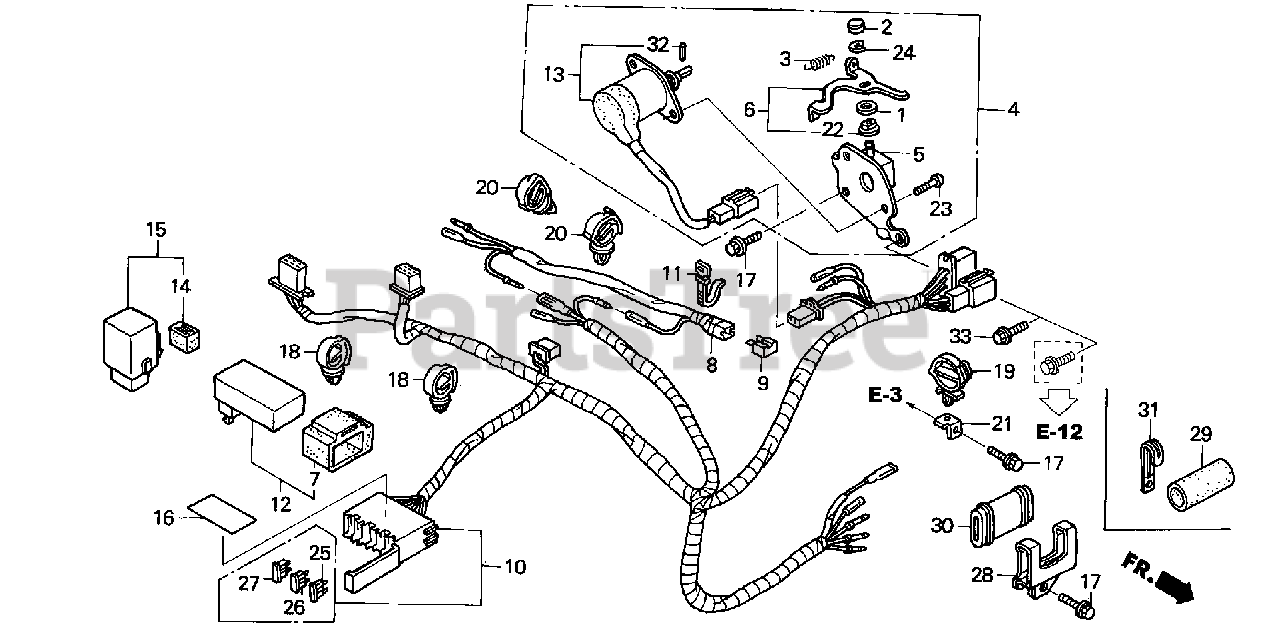

AUTO THROTTLE + SUB WIRE HARNESS Parts Diagram

  • Title

2

Honda 16252-ZA1-010

SEE PART DETAILS - PRI; CAP, CHOKE LEVER

$1.99

$

In Stock, only 2 left!

0

3

Honda 16268-893-000

SPRING, CHOKE RETURN

$4.49

$

In Stock, Qty 9

0

4

Honda 16270-ZB4-010

SEE PART DETAILS - PRI; AUTO-THROTTLE ASSY.

$168.99

$

Usually ships in 3-6 days

0

5

Honda 16271-ZB4-000

STAY, SOLENOID THROTTLE

$19.99

$

Usually ships in 3-6 days

0

6

Honda 16273-ZB4-000

LEVER, SOLENOID THROTTLE

$10.99

$

Usually ships in 3-6 days

0

7

Honda 30401-HA0-000

CUSHION, IGNITION CONTROL MODULE (CDI)
(Superseded to 30401-KYY-900)

$6.49

$

Usually ships in 3-6 days

0

8

Honda 31700-ZB7-003

DIODE ASSY., SOLENOID

$

$

Not available

9

Honda 31700-166-008

RECTIFIER, SILICON

$41.99

$

In Stock, only 1 left!

0

10

Honda 32100-ZB7-A00

SUB-WIRE HARNESS ASSY.

$

$

Not available

11

Honda 32161-404-000

BAND B1, WIRE

$3.49

$

In Stock, only 4 left!

0

12

Honda 36150-ZB7-A01

SEE PART DETAILS - SUP; CONTROL UNIT, SOLENOID

$

$

Currently unavailable

12

Honda 36150-ZB7-A02

SEE PART DETAILS - PRI; CONTROL UNIT, SOLENOID

$

$

Not available

13

Honda 36160-ZB4-003

SEE PART DETAILS - SUP; SOLENOID ASSY.
(Superseded to 36160-ZB4-013)

$126.99

$

In Stock, only 2 left!

0

13

Honda 36160-ZB4-013

SEE PART DETAILS - PRI; SOLENOID ASSY.

$126.99

$

In Stock, only 2 left!

0

14

Honda 38306-KK4-000

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 39500-ZB7-003

SEE PART DETAILS - SUP; TIMER UNIT

$137.99

$

Usually ships in 3-6 days

0

15

Honda 39500-ZB7-013

SEE PART DETAILS - PRI; TIMER UNIT

$

$

Not available

16

Honda 87117-ZB7-A30

LABEL, FUSE

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

18

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$13.99

$

Usually ships in 3-6 days

0

19

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

$10.99

$

Usually ships in 3-6 days

0

20

Honda 90691-ZB7-003

CLIP, HARNESS

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90700-ZB7-000

BASE, CORD CLIP

$6.99

$

Usually ships in 3-6 days

0

22

Honda 91502-ZB4-701

BUSH, AUTO-THROTTLE LEVER

$6.49

$

Usually ships in 3-6 days

0

23

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 5

0

24

Honda 94540-04018

E-RING (4MM)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 98200-30500

FUSE, BLADE (5A)

$1.99

$

In Stock, Qty 5

0

26

Honda 98200-30500

FUSE, BLADE (5A)

$1.99

$

In Stock, Qty 5

0

27

Honda 98200-31000

FUSE, BLADE (10A)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 30561-ZB4-000

CLIP, WIRE

Note: Use up to Frame SN 1101516.

$7.49

$

Usually ships in 3-6 days

0

29

Honda 91406-ZB3-740

TUBE, CORD

Note: Use from Frame SN 1101517.

$5.99

$

Usually ships in 3-6 days

0

30

Honda 91406-ZB4-000

TUBE, CORD

Note: Use up to Frame SN 1101516.

$13.99

$

Usually ships in 3-6 days

0

31

Honda 91406-671-000

CLIP, WIRE HARNESS

Note: Use from Frame SN 1101517.

$22.99

$

Usually ships in 3-6 days

0

32

Honda 94305-20062

PIN, SPRING (2X6)

$1.99

$

Usually ships in 3-6 days

0
