EX3300S K1 A (EB2) - Honda Generator, Made in Japan (SN: EB2-1100001 - EB2-1102329) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

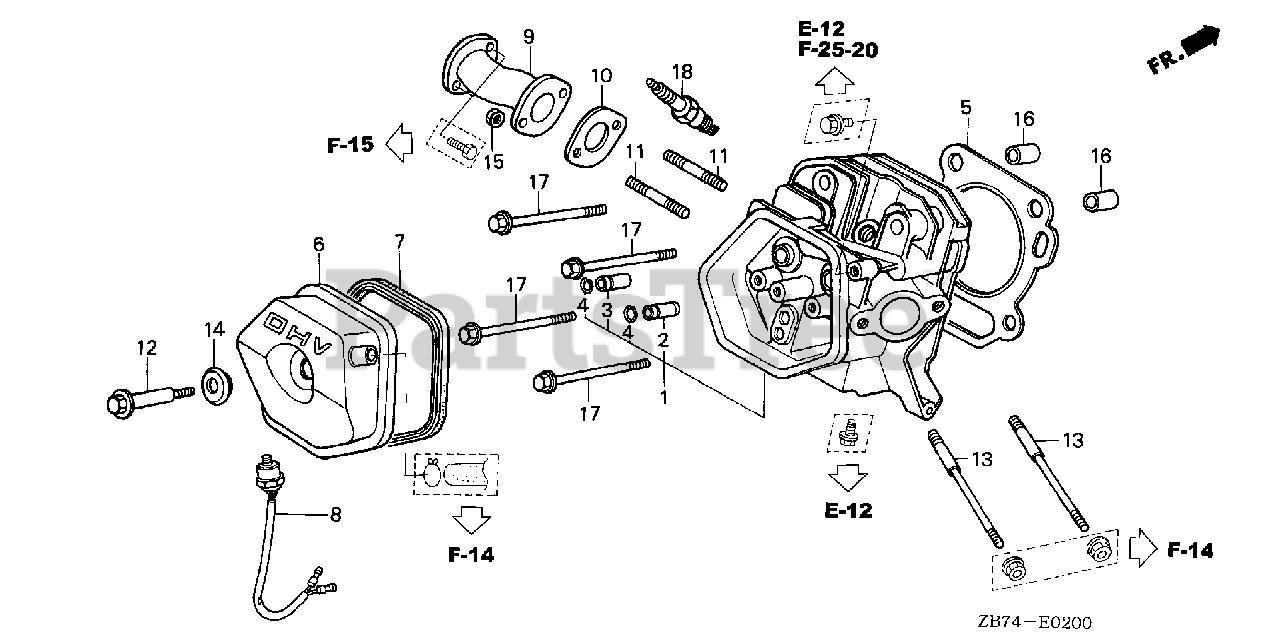

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZH9-405

SEE PART DETAILS - PRI; CYLINDER HEAD

$310.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$14.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE2-801)

$13.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE3-790

COVER, HEAD (BREATHER TUBE JOINT)

Note: Use up to Engine SN 3139634.

$

$

Currently unavailable

6

Honda 12310-ZE3-791

COVER, HEAD (BREATHER TUBE JOINT)

Note: Use from Engine SN 3139635.

$50.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE2-010

SEE PART DETAILS - SUP; GASKET, HEAD COVER

Note: Use up to Engine SN 3146326.

$

$

Currently unavailable

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$10.99

$

In Stock, Qty 20+

0

8

Honda 16500-ZE2-702

SEE PART DETAILS - SUP; SWITCH, THERMO
(Superseded to 16500-ZE2-703)

$69.99

$

Usually ships in 3-6 days

0

9

Honda 18330-ZB7-003

PIPE, EX.

$38.99

$

Usually ships in 3-6 days

0

10

Honda 18333-ZB7-800

GASKET, EX. PIPE

$7.49

$

Usually ships in 3-6 days

0

11

Honda 90012-KM9-000

BOLT, STUD (8X34)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.49

$

Usually ships in 3-6 days

0

13

Honda 90042-ZB7-000

BOLT, STUD (8X111)

$10.99

$

Usually ships in 3-6 days

0

14

Honda 90441-ZE2-010

WASHER, HEAD COVER

$5.99

$

In Stock, Qty 5

0

15

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 20+

0

16

Honda 94301-12200

PIN, DOWEL (12X20)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$3.99

$

In Stock, only 4 left!

0

18

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

18

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
