EX400DS5250 (EX40) - Subaru Robin Engine 640 Carburetor Parts Diagram

Engine

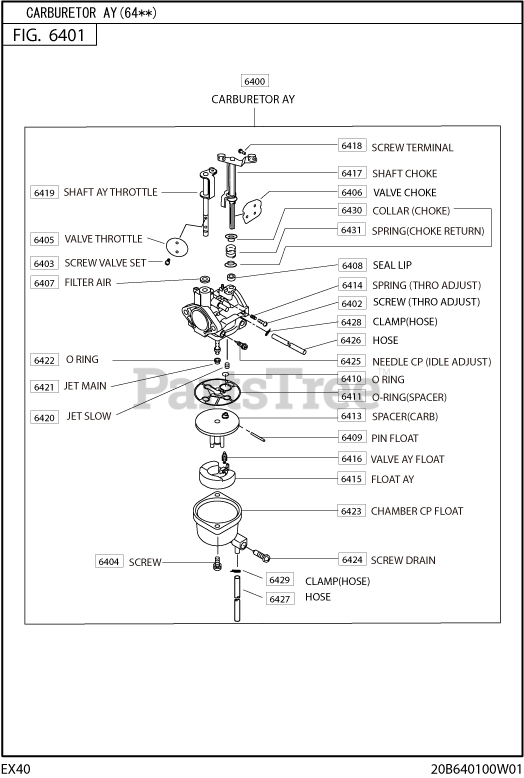

640 Carburetor Parts Diagram

  • Title

6400

Subaru Robin 20B-62308-00

CARBURETOR AY

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$291.99

$

In Stock, only 3 left!

0

6402

Subaru Robin 20B-62353-08

SCREW,THRO.ADJUST

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.99

$

Usually ships in 2-12 days

0

6403

Subaru Robin 261-62352-08

SCREW,VALVE SET

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.99

$

Usually ships in 2-12 days

0

6404

Subaru Robin 20B-62453-08

SCREW

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.49

$

In Stock, Qty 5

0

6405

Subaru Robin 20B-62535-08

VALVE,THROTTLE

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$9.31

$

Usually ships in 2-12 days

0

6406

Subaru Robin 20B-62525-08

VALVE,CHOKE

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$9.49

$

Usually ships in 2-12 days

0

6407

Subaru Robin 226-62580-08

FILTER,AIR

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$9.49

$

In Stock, only 1 left!

0

6408

Subaru Robin 263-62574-08

SEAL LIP

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$5.99

$

Usually ships in 2-12 days

0

6409

Subaru Robin 263-62515-08

PIN,FLOAT

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.49

$

In Stock, only 2 left!

0

6410

Subaru Robin 20B-62541-08

O RING

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.49

$

In Stock, Qty 5

0

6411

Subaru Robin 20B-62540-08

O-RING(SPACER)

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$15.99

$

In Stock, Qty 5

0

6413

20B-62521-08

SPACER(CARB)

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

6414

Subaru Robin 20B-62445-08

SPRING,THRO.ADJUST

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$17.99

$

Usually ships in 2-12 days

0

6415

Subaru Robin 20B-62505-08

FLOAT AY

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$28.99

$

Usually ships in 2-12 days

0

6416

Subaru Robin 20B-62500-08

VALVE AY FLOAT

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$28.99

$

Usually ships in 2-12 days

0

6417

Subaru Robin 20B-62552-08

SHAFT,CHOKE

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$26.99

$

Usually ships in 2-12 days

0

6418

Subaru Robin 20B-62524-08

SCREW TERMINAL

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.99

$

Usually ships in 2-12 days

0

6419

Subaru Robin 20B-62530-08

SHAFT AY,THROTTLE

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$33.99

$

Usually ships in 2-12 days

0

6420

Subaru Robin 20B-62421-08

JET,SLOW

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$32.99

$

In Stock, only 1 left!

0

6421

Subaru Robin 20B-62437-08

JET,MAIN (#110)

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$21.99

$

Usually ships in 2-12 days

0

6422

Subaru Robin 20B-62542-08

O RING

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

6423

Subaru Robin 20B-62550-08

CHAMBER CP,FLOAT

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$81.99

$

Usually ships in 2-12 days

0

6424

Subaru Robin 20B-62354-08

SCREW,DRAIN

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$16.99

$

Usually ships in 2-12 days

0

6425

Subaru Robin 20B-62357-08

NEEDLE CP,IDLEADJUST

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$29.99

$

Usually ships in 2-12 days

0

6426

20B-62310-08

HOSE(F4)

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

6427

20B-62311-08

HOSE(F5)

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

6428

20B-62320-08

CLAMP(HOSE)

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

6429

20B-62321-08

CLAMP(HOSE)

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

6430

Subaru Robin 20B-62522-08

COLLAR(CHOKE)

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$18.99

$

Usually ships in 2-12 days

0

6431

Subaru Robin 20B-62523-08

SPRING(CHOKE RETURN)

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$10.54

$

Usually ships in 2-12 days

0
