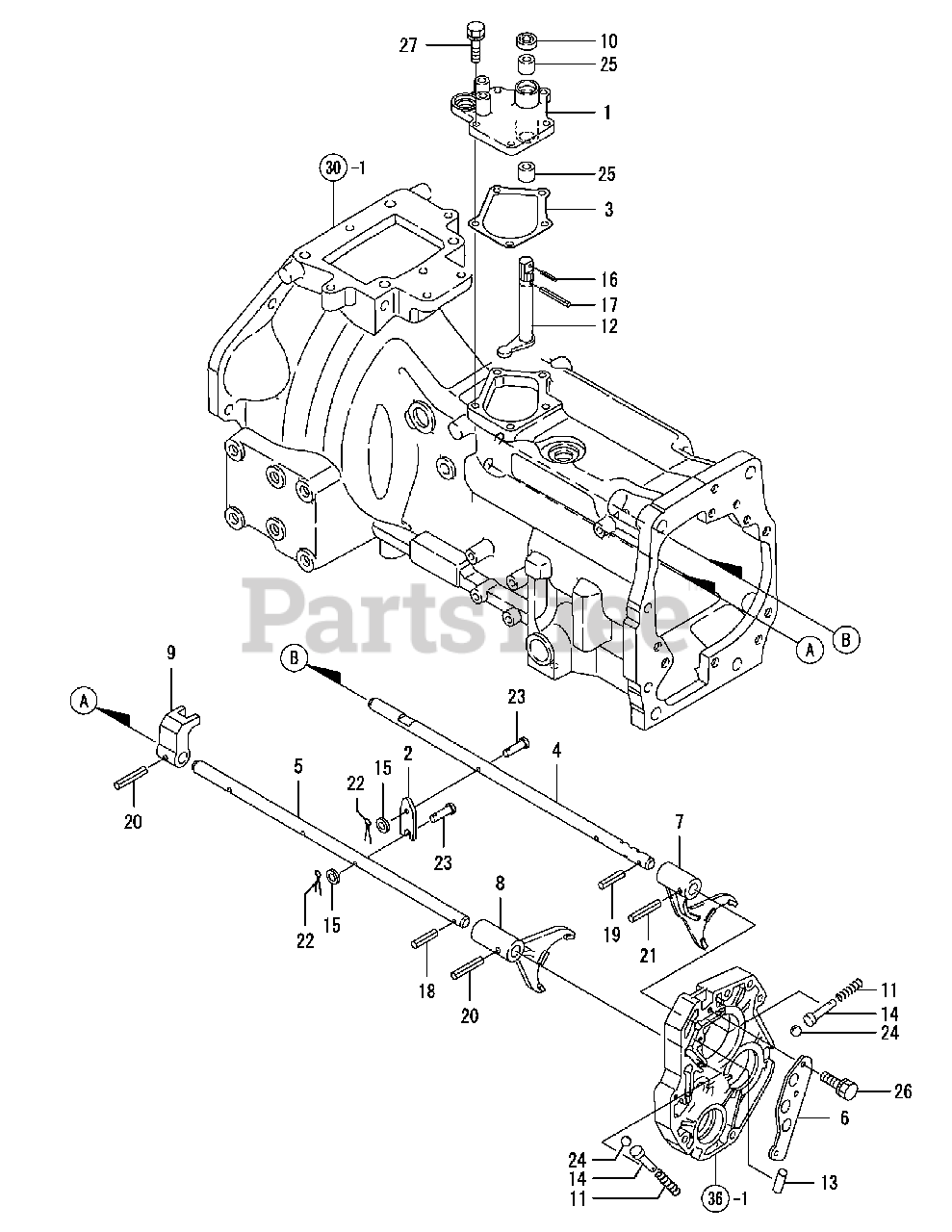

Ex450 (54AJF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Main Change Parts Diagram

Ex Series Compact Tractor

Main Change Parts Diagram

  • Title

1

Cub Cadet CY-1A7780271501

RETAINER, LEVER

$

$

Not available

2

Cub Cadet CY-194250-27160

ARM, NEUTRAL START

$

$

Not available

3

Cub Cadet CY-198133-27170

GASKET, RETAINER

$

$

Not available

4

Cub Cadet CY-198137-27180

SHAFT 2-3,FORK

$

$

Not available

5

Cub Cadet CY-198137-27190

SHAFT 1,FORK

$

$

Not available

6

Cub Cadet CY-198133-27280

HOLDER,INTER LOCK

$

$

Not available

7

Cub Cadet CY-1A7780-27310

FORK, SHIFT

$

$

Not available

8

Cub Cadet CY-198240-27320

FORK, SHIFT

$

$

Not available

9

Cub Cadet CY-198133-27330

SHIFTER

$

$

Not available

10

Cub Cadet CY-198133-27340

SEAL KBY 172406

$

$

Not available

11

Cub Cadet CY-194145-27450

SPRING

$

$

Not available

12

Cub Cadet CY-198133-27450

ARM,GEAR SHIFT

$

$

Not available

13

Cub Cadet CY-194130-27490

SPINDLE

$

$

Not available

14

Cub Cadet CY-198071-27860

PIN 4X35,FLAT HEAD.

$

$

Not available

15

Cub Cadet CY-1C6460-84420

WASHER 6.4*12.5*1

$

$

Not available

16

Cub Cadet CY-22351-020012

SPRING PIN 2X 12

$

$

Not available

17

Cub Cadet CY-22351-040032

SPRING PIN 4X32

$

$

Not available

18

Cub Cadet CY-22351-060025

SPRING PIN 6X25

$

$

Not available

19

Cub Cadet CY-22351-060025

SPRING PIN 6X25

$

$

Not available

20

Cub Cadet CY-22351-060032

SPRING PIN 6X32

$

$

Not available

21

Cub Cadet CY-22351-060032

SPRING PIN 6X32

$

$

Not available

22

Cub Cadet CY-22417-160180

COTTER PIN 1.6X18

$

$

Not available

23

Cub Cadet CY-22487-060200

PIN 6X 20

$

$

Not available

24

Cub Cadet CY-24190-100001

BALL 5/16, STEEL
(Superseded to CY-24190-100003)

$

$

Not available

25

Cub Cadet CY-24550-017150

BUSH 17X15

$

$

Not available

26

Cub Cadet CY-26013-080202

BOLT W/WASHER M8X20

$

$

Not available

27

Cub Cadet CY-26013-080252

BOLT M 8X 25

$

$

Not available

Note:30-1 Refers to CLUTCH HOUSING, Ref No.1

$

$

Not available

Note:36-1 Refers to CENTER PLATE, Ref No. 1

$

$

Not available
